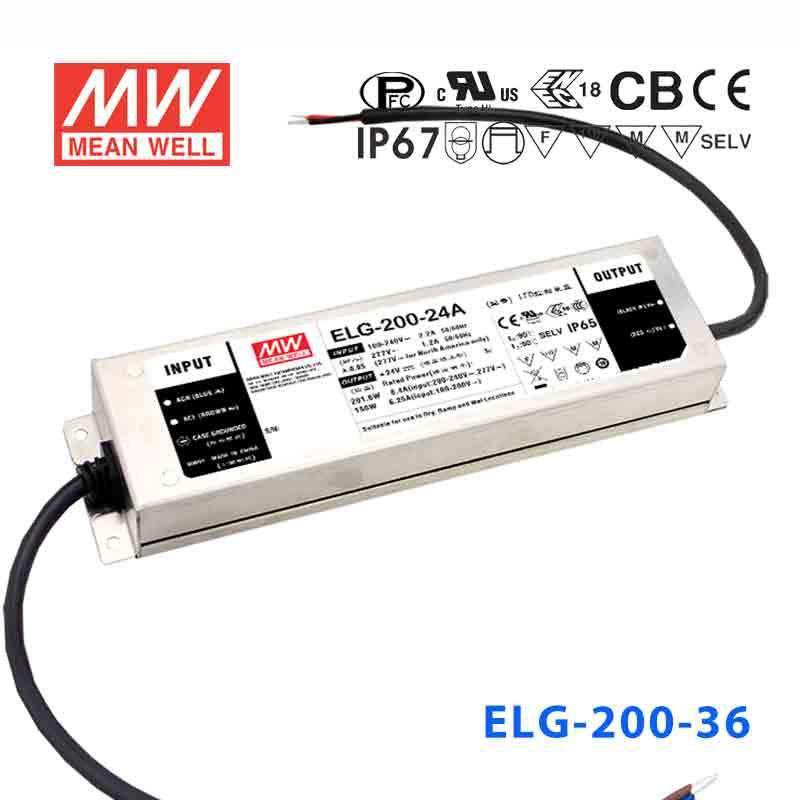

Mean Well ELG-200-36AB Power Supply 200W 36V - Adjustable and Dimmable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating199.8 Watt
-
Output Voltage36 Volt
-
Rated Current5.55 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-36AB be installed in an outdoor LED sign enclosure exposed to weather?
The ELG-200-36AB carries an IP65 rating, protecting against low-pressure water jets and dust. It is suitable for enclosed outdoor sign cabinets where direct rain impact is avoided, but not for fully unprotected outdoor mounting where driving rain or submersion is possible. For those applications, the IP67-rated ELG-200-36B would be more appropriate.
What dimming interfaces does the ELG-200-36AB support?
The AB suffix indicates the driver supports 3-in-1 dimming: 1–10V analog, PWM signal, and resistance control. This makes it compatible with most commercial lighting control systems, wall dimmers, and building automation interfaces, which is useful in retail, hospitality, or architectural lighting projects.
Can the ELG-200-36AB power a dynamic architectural LED strip installation where brightness needs to vary?
Yes. With 199.8W at 36V, 5.55A output, and built-in 3-in-1 dimming plus adjustable output current, this driver suits dynamic lighting designs where the integrator needs both output trimming and real-time dimming control. It works with 36V LED strips used in cove, perimeter, or accent lighting schemes.
How much 36V LED strip length can the ELG-200-36AB support?
The driver delivers 199.8W at 5.55A. For a 36V strip rated at 20 W/m, you can run approximately 10 m per driver (199.8 W ÷ 20 W/m). For a 15 W/m strip, that extends to about 13.3 m. Verify your strip's rated power per meter and apply a 10–20% derating margin.
Is the ELG-200-36AB appropriate for museum or gallery LED strip lighting requiring precise light level control?
Yes. The combination of adjustable output current and 3-in-1 dimming enables very fine brightness control suitable for display and conservation lighting. The metal enclosure and 5-year warranty meet the reliability expectations of institutional projects, and the wide input range of 100–305VAC supports international installations.
What operating temperature range does the ELG-200-36AB support?
The ELG-200-36AB operates from -40°C to +90°C. This wide range covers most indoor and covered outdoor environments, including locations near high-temperature equipment or in cold climates, though the IP65 rating limits it to protected locations rather than direct outdoor exposure.
