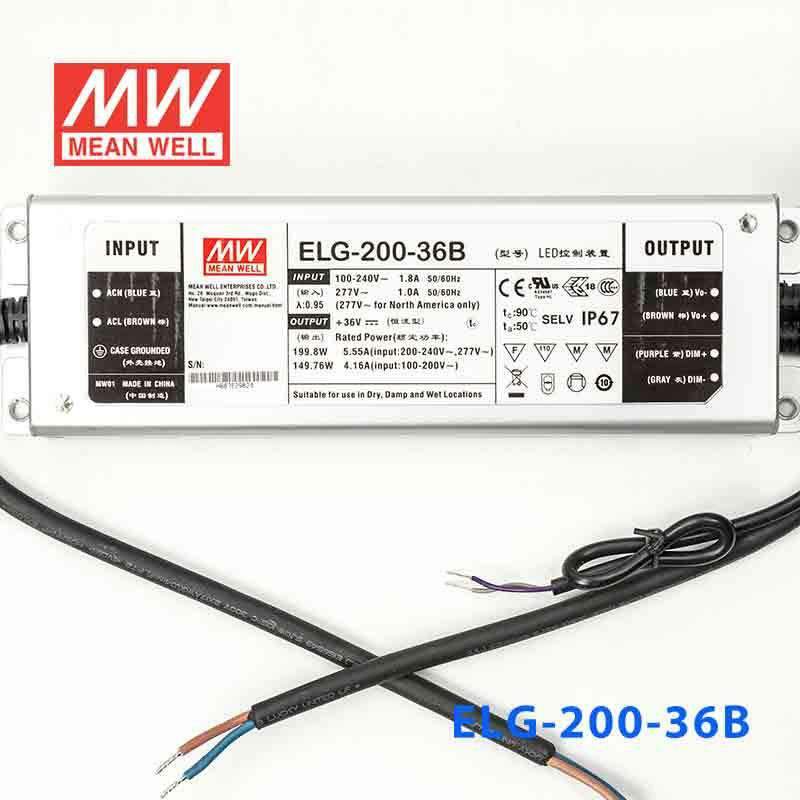

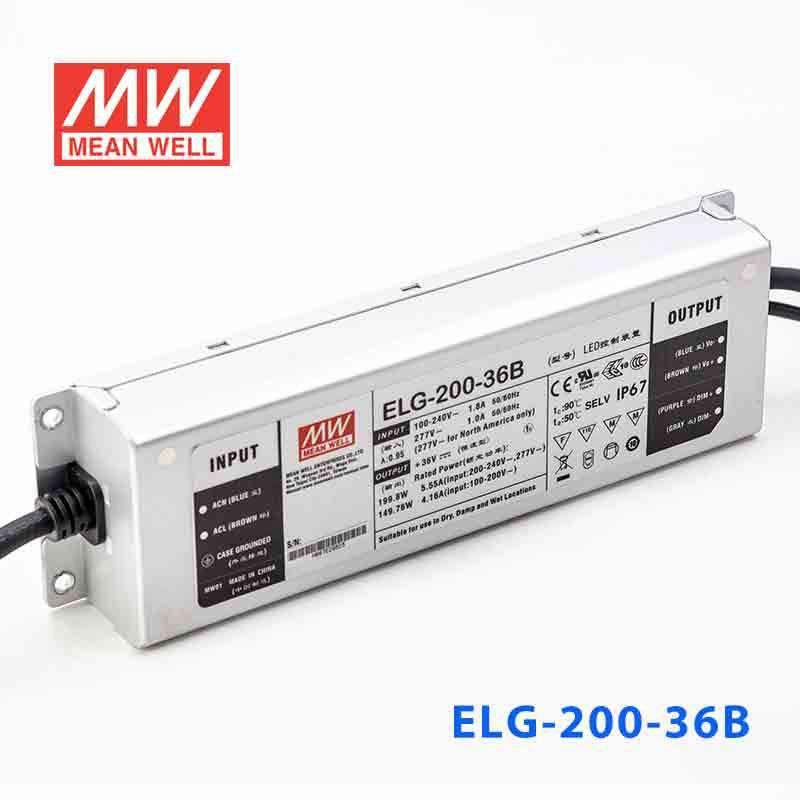

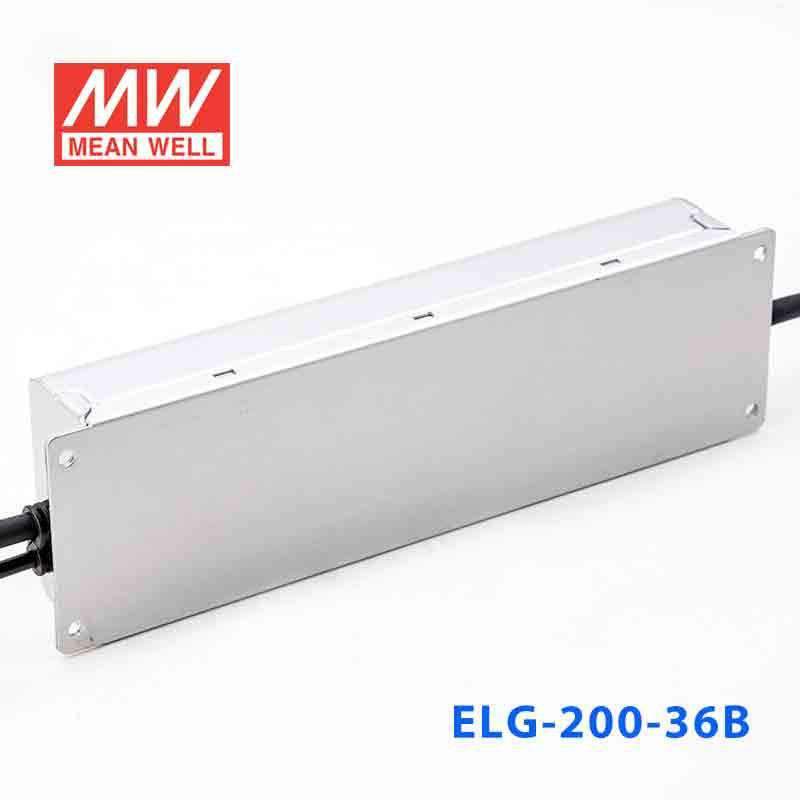

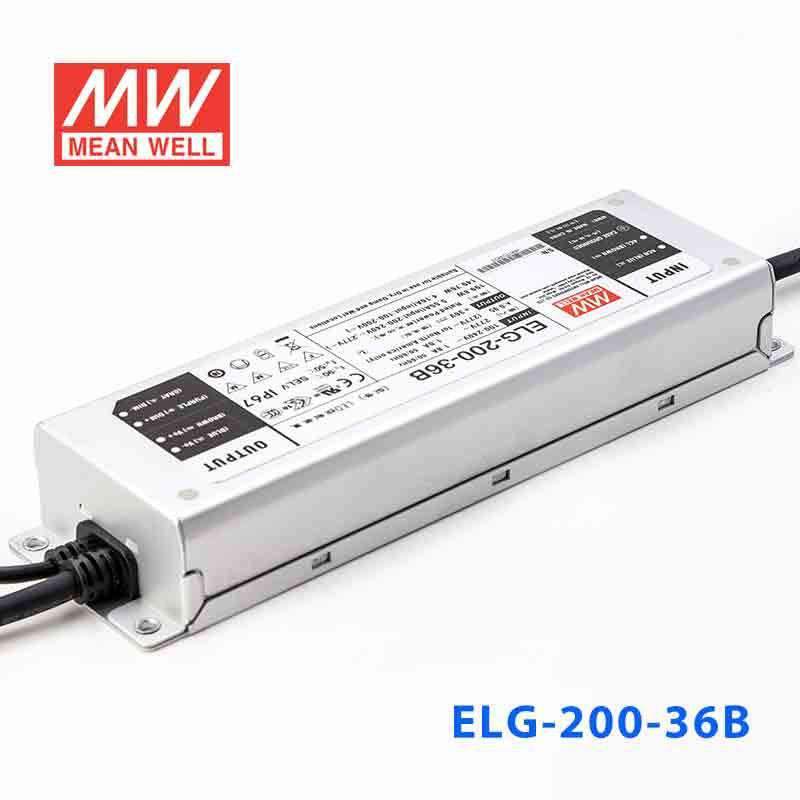

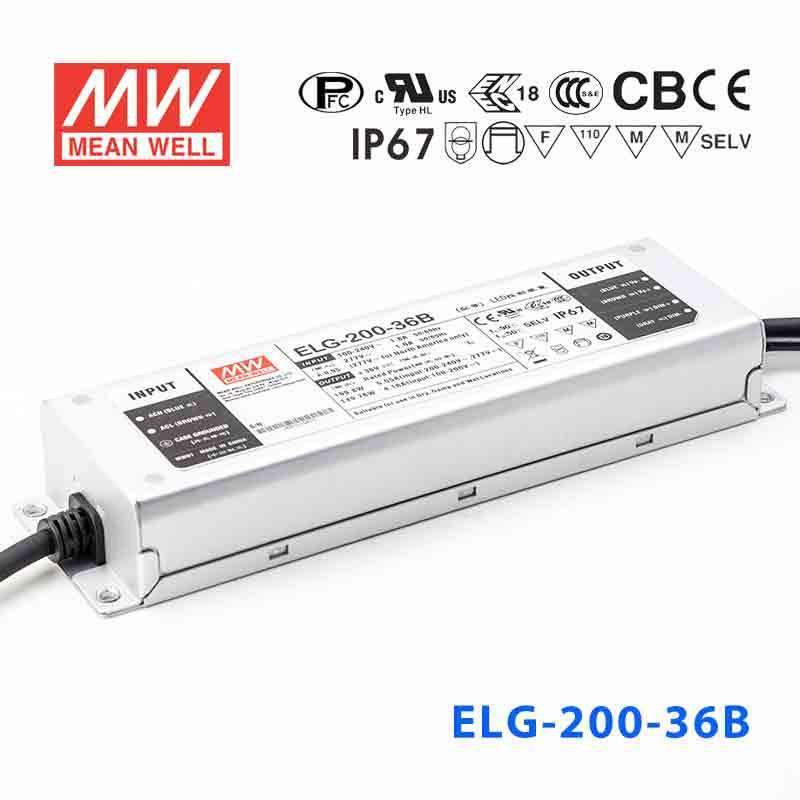

Mean Well ELG-200-36B Power Supply 200W 36V - Dimmable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating199.8 Watt
-
Output Voltage36 Volt
-
Rated Current5.55 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-36B be mounted outdoors and exposed to rain without an additional enclosure?
Yes. The ELG-200-36B is rated IP67, meaning it is protected against water immersion up to 1 meter for 30 minutes. It can withstand direct rain exposure and is suitable for outdoor sign structures, facade lighting, and landscape applications where additional weather housing is not practical.
What dimming method does the ELG-200-36B use?
The B suffix indicates 3-in-1 dimming support via PWM signal, 1–10V analog, or resistance control. This makes it compatible with standard lighting controllers, building management systems, and smart dimmer switches used in commercial and architectural LED lighting projects.
Can the ELG-200-36B drive 36V LED strips in an outdoor landscape or pathway lighting system?
Yes. The IP67 waterproof rating and -40°C to +90°C operating range make it a strong choice for landscape and pathway lighting where the driver may be located in a ground-level enclosure subject to rain accumulation or irrigation spray. The 199.8W capacity is sufficient for runs covering multiple landscape fixtures.
How long a 36V LED strip run can the ELG-200-36B support?
The driver outputs 199.8W at 5.55A. For a 36V strip at 20 W/m, you can run approximately 10 m per driver (199.8 W ÷ 20 W/m). For strips at 14 W/m, that extends to roughly 14.3 m. Always confirm your strip's rated wattage per meter and leave a 10–20% derating margin for thermal safety.
Is the ELG-200-36B appropriate for powering LED strips in an outdoor car wash or pool area?
Yes. The IP67 rating protects against immersion and high-humidity environments such as car wash tunnels and pool equipment areas. Combined with the metal enclosure and -40°C to +90°C operating range, it handles the moisture and temperature demands of these installations.
Can the ELG-200-36B be used for 36V LED strip lighting inside cold-storage or freezer rooms?
Yes. The -40°C lower operating limit matches the temperature requirements of commercial freezer and cold-storage environments, and the IP67 enclosure protects against condensation that forms when the driver is moved in and out of cold zones. The 199.8W capacity supports significant fixture loads in large cold-room installations.
