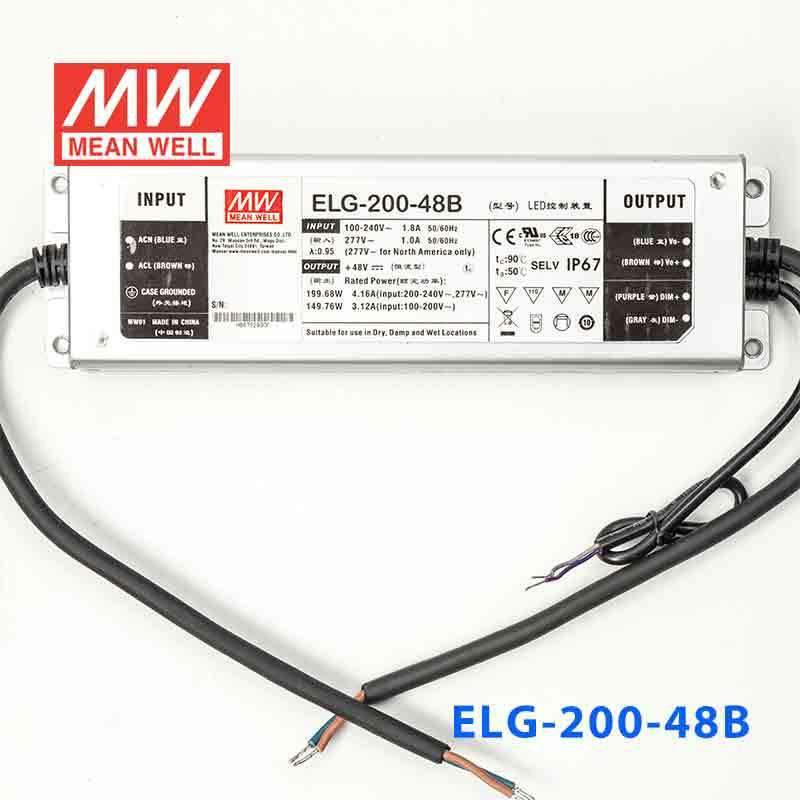

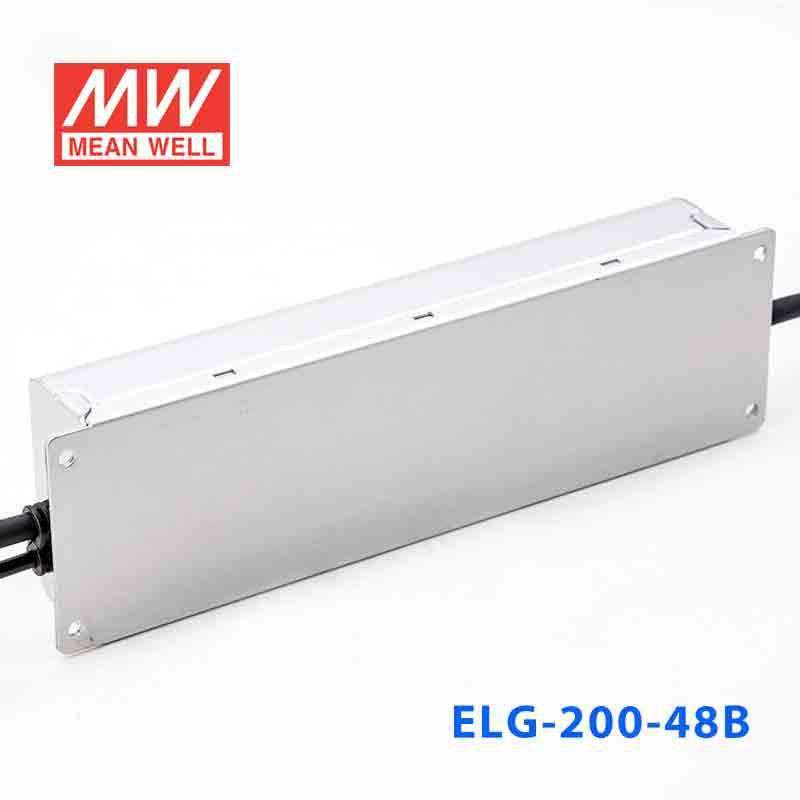

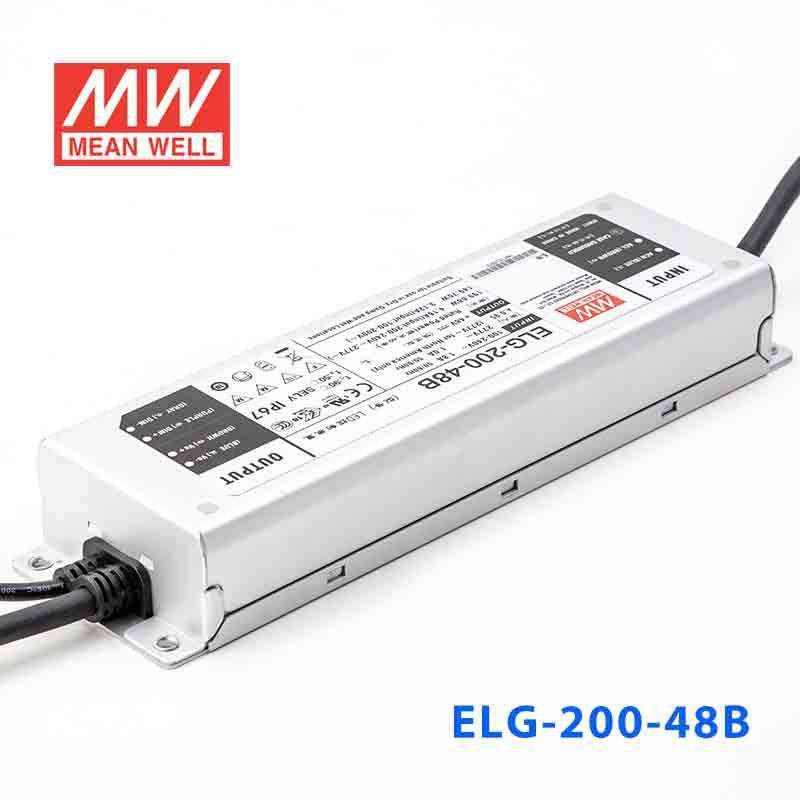

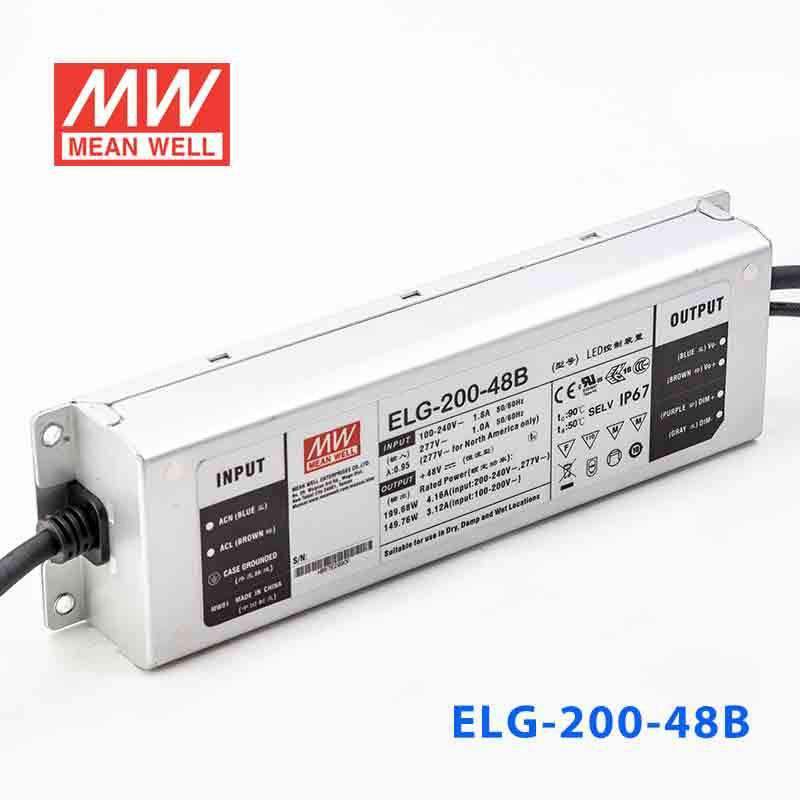

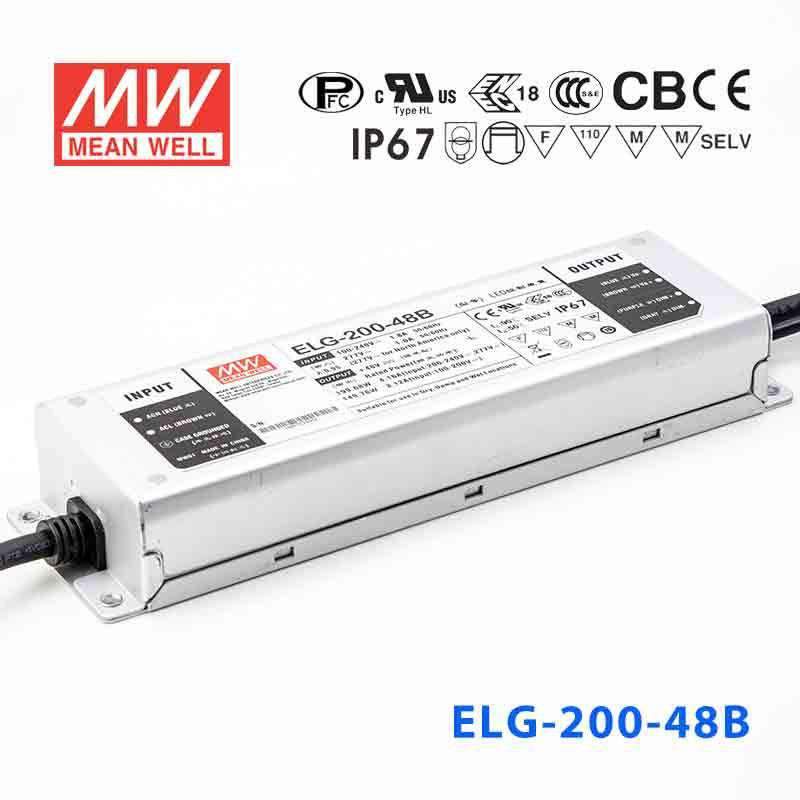

Mean Well ELG-200-48B Power Supply 200W 48V - Dimmable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating199.68 Watt
-
Output Voltage48 Volt
-
Rated Current4.16 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can I install the ELG-200-48B in an outdoor LED sign that is exposed to rain?
Yes. The ELG-200-48B is rated IP67, meaning it is fully dustproof and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it well suited for outdoor signage, exterior architectural lighting, and enclosures where direct rain exposure is expected.
What dimming methods does the ELG-200-48B support?
The B suffix indicates three-in-one dimming capability: 1–10V analog, PWM signal, and resistance-based dimming. You can select the method that matches your building automation or lighting control system without needing an additional adapter.
How many meters of 48V LED strip can the ELG-200-48B drive?
The ELG-200-48B provides up to 199.68W at 48V. To find the maximum strip length, divide 199.68W by your strip's wattage per meter — for example, a 20W/m strip allows approximately 9.9 meters per driver (199.68 ÷ 20 ≈ 9.98 m). Always check your specific strip's rated power per meter for an accurate calculation.
Is the ELG-200-48B suitable for powering LED fixtures in underground or recessed landscape lighting?
The IP67 rating covers temporary water immersion up to 1 meter for 30 minutes, which is appropriate for ground-level recessed fixtures or shallow landscape lighting enclosures. For long-term continuous submersion, a higher IP rating (IP68) would be required.
Can the ELG-200-48B power a 48V linear lighting system in a commercial corridor?
Yes. At 199.68W output, the ELG-200-48B is well sized for commercial corridor linear lighting using 48V LED profiles. Its -40°C to +90°C operating range and 5-year warranty support continuous commercial use, and the three-in-one dimming allows integration with occupancy or daylight harvesting controls.
Does the ELG-200-48B operate on both 120V and 277V input as used in US commercial buildings?
Yes. The ELG-200-48B accepts a wide input range of 100–305VAC, which covers standard North American voltages (120V and 277V) as well as international voltages up to 305VAC. No manual voltage switching is required.
