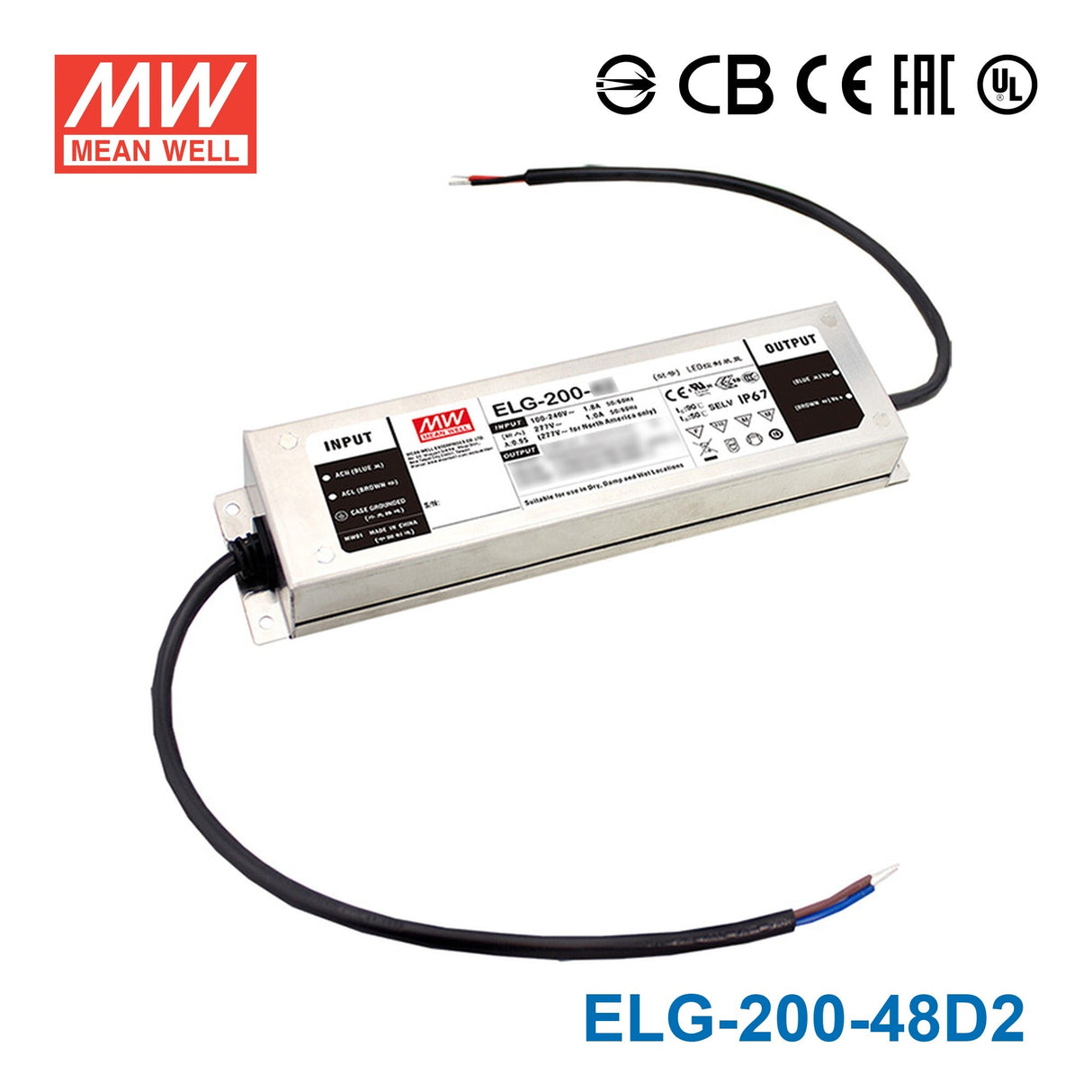

Mean Well ELG-200-48D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage48 Volt
-
Rated Current4.16 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
What dimming protocol does the ELG-200-48D2 use?
The D2 suffix identifies this driver as supporting 0–10V and PWM dimming via a two-wire interface. It is compatible with standard 0–10V dimming controls commonly found in commercial lighting automation systems.
Can the ELG-200-48D2 be used outdoors in wet conditions?
Yes. The ELG-200-48D2 carries an IP67 waterproof rating, providing full dust protection and resistance to temporary water immersion up to 1 meter for 30 minutes. It is suitable for outdoor enclosures, covered parking structures, and other wet-location applications.
Is the ELG-200-48D2 appropriate for powering 48V LED strips in a museum or gallery?
Yes. Its 200W output at 48V supports substantial LED strip runs, and the 0–10V dimming enables precise, flicker-free light level control suitable for gallery environments where consistent rendering matters. The metal enclosure and -40°C to +90°C operating range support reliable performance in climate-controlled spaces.
How does the ELG-200-48D2 differ from the ELG-200-48DA?
Both supply 48V at 200W and 4.16A. The D2 uses a 0–10V/PWM two-wire dimming interface and holds BSMI, CB, CE, EAC, and UL certifications. The DA uses a DALI digital dimming interface (IEC 62386) and carries a broader certification set including CCC, ENEC, KC, and c_RCM. Choose the D2 for analog dimming systems and the DA for DALI-based building automation.
How much 48V LED strip can a single ELG-200-48D2 support?
The ELG-200-48D2 delivers 200W at 48V. Divide 200W by your strip's rated power per meter to get the maximum length — for instance, a 12W/m strip allows up to approximately 16.7 meters (200 ÷ 12 ≈ 16.7 m). Confirm your specific strip's power density before sizing the installation.
Can the ELG-200-48D2 be used in a cold storage or freezer lighting application?
Yes. The operating temperature range of -40°C to +90°C means the ELG-200-48D2 will function reliably in cold storage environments. Its IP67 rating also protects against condensation and brief water exposure common in refrigerated spaces.
