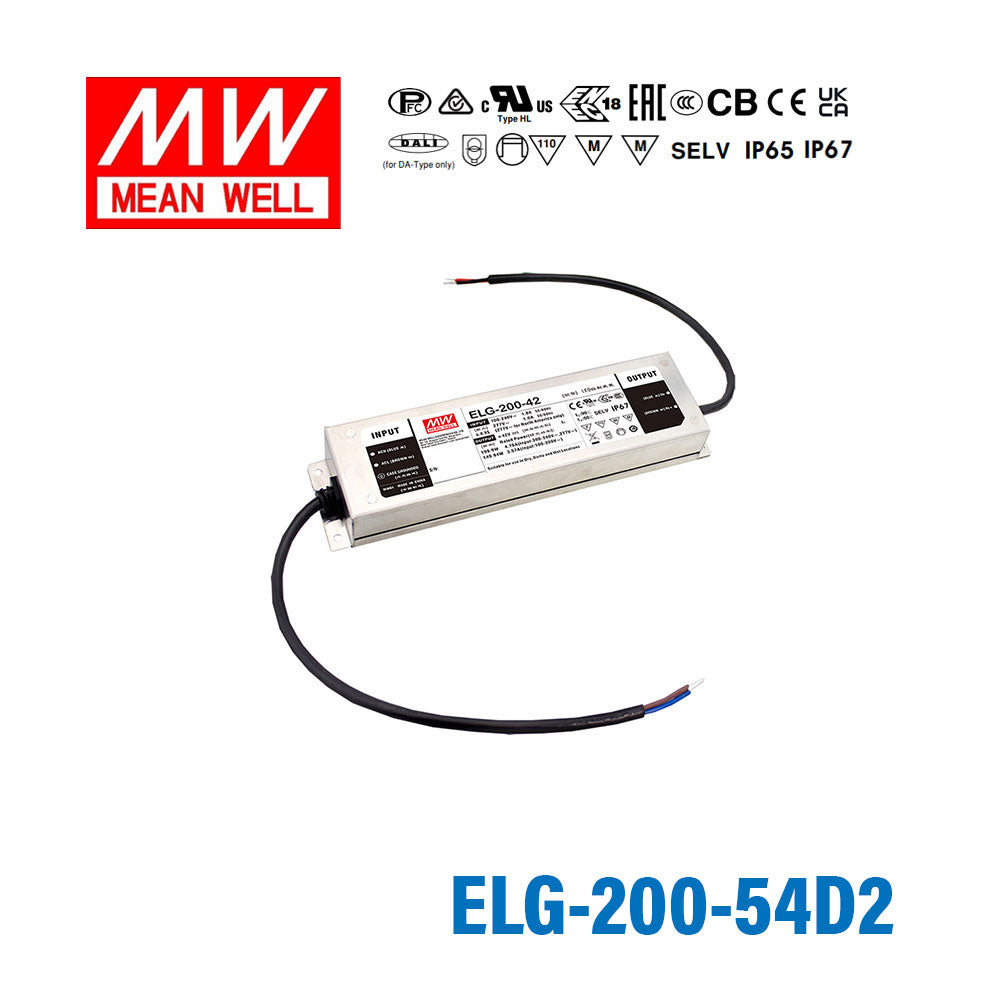

Mean Well ELG-200-54D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage54 Volt
-
Rated Current3.72 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-54D2 be used to drive 54V LED strips in outdoor cabinets?
Yes. The ELG-200-54D2 is rated IP67, meaning it is fully sealed against water ingress and suitable for outdoor use inside weatherproof enclosures or even direct exposure to rain. Its operating temperature range of -40°C to +90°C supports installation in both hot and cold climates.
What dimming methods does the ELG-200-54D2 support?
The 'D2' suffix designates a dual-mode dimming interface that accepts both a 0-10V analog signal and a PWM signal for brightness control. This makes it compatible with most building automation systems and standalone PWM dimmer controllers used in commercial LED installations.
Is the ELG-200-54D2 appropriate for powering LED downlights in a hospitality retrofit?
Yes. At 200W and 54V output this driver can supply a bank of 54V LED downlight modules in hotel corridors, lobbies, or restaurant spaces. The 0-10V dimming input allows smooth integration with hotel dimming systems. Verify that each fixture's LED module is rated for 54V operation.
How much 54V LED strip can the ELG-200-54D2 power?
The driver is rated at 200W output at 54V. Using 54V strip rated at 14.4W per meter as an example: 200W ÷ 14.4W/m ≈ 13.9m at full load. Derate to 80% for continuous runs, giving approximately 11 meters. Check your strip's rated power per meter and apply the same calculation.
Can the ELG-200-54D2 power a large illuminated outdoor billboard in a harsh climate?
Yes. The IP67 waterproof rating and -40°C to +90°C operating temperature range make this driver suitable for billboard or roadside sign installations subject to rain, dust, and extreme temperatures. The wide 100–305VAC input handles voltage fluctuations common in remote outdoor power supplies.
What certifications does the ELG-200-54D2 carry?
The ELG-200-54D2 holds BSMI, CB, CE, EAC, and UL certifications, covering Taiwan, international CB scheme, European, Eurasian, and North American markets. The 5-year manufacturer warranty and IP67 rating make it a compliant choice for commercial projects requiring documented safety approvals.
