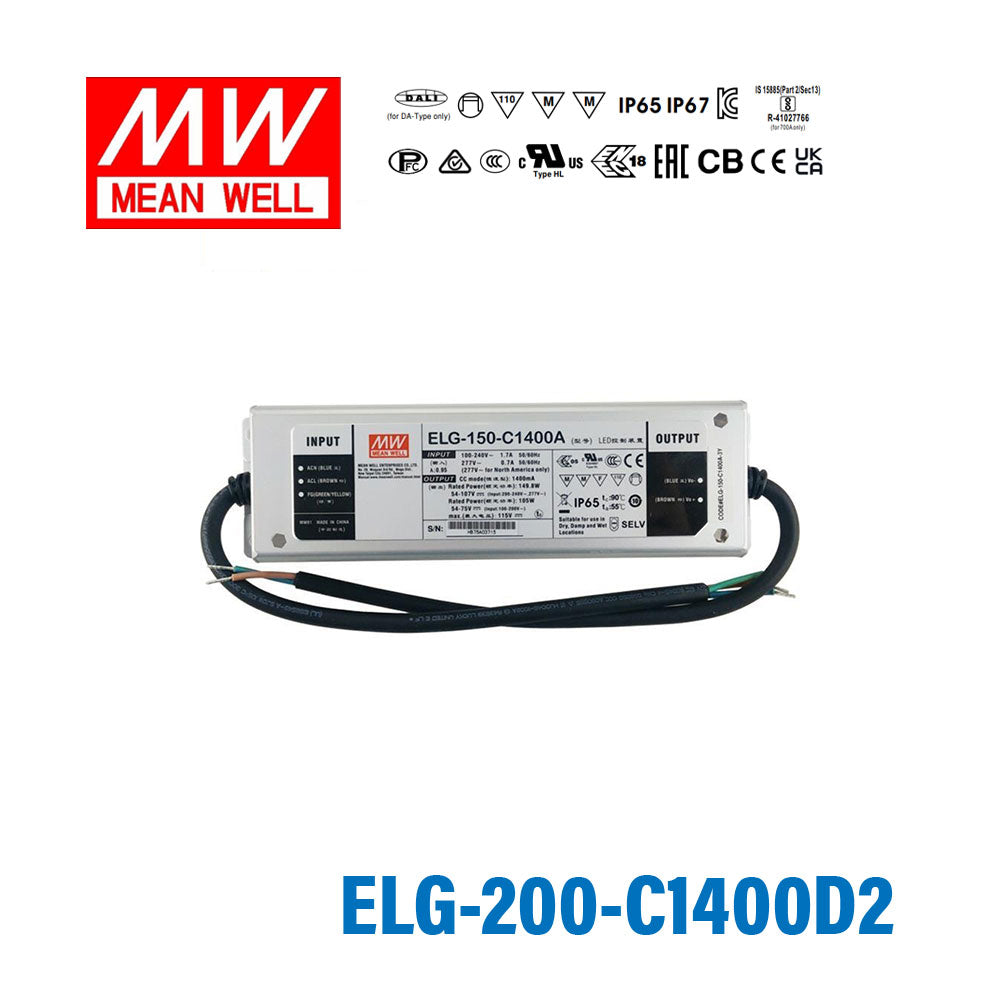

Mean Well ELG-200-C1400D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C1400D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage142 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control1-10V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1400D2 drive LED modules in outdoor installations?
Yes. The ELG-200-C1400D2 is IP67 rated, meaning it is fully waterproof and suitable for wet or exposed outdoor environments, including outdoor architectural lighting and weatherproof LED signage enclosures.
Is the ELG-200-C1400D2 a good fit for series LED arrays in the 71–142V range?
Yes. This driver operates in constant current mode at 1400mA across a CC voltage range of 71–142V, making it compatible with series-connected LED modules whose combined forward voltage falls within that range. The exact number of LEDs depends on each LED's individual forward voltage.
Can I use the ELG-200-C1400D2 with a 0–10V dimmer or PWM controller?
Yes. The D2 suffix designates support for both 0–10V analog and PWM dimming interfaces, enabling integration with standard building automation or lighting control systems that use these common signals.
Is this driver suitable for powering high-bay LED luminaires in industrial facilities?
Yes. With 200W output, a wide 100–305VAC input, and IP67 waterproofing, the ELG-200-C1400D2 can be used inside high-bay LED fixtures in warehouses, production halls, or other industrial settings where humidity or washdown exposure is a concern.
How does the ELG-200-C1400D2 differ from other ELG-200-C1400 variants?
The D2 variant supports 0–10V and PWM dimming and has a maximum output voltage of 142V, which is slightly lower than the 160V listed for the non-dimming base model. Other variants include: the base (no dimming, 160V max), A (current adjustable), B (3-in-1 dimming), AB (adjustable + 3-in-1 dimming), and DA (DALI dimming protocol).
Can the ELG-200-C1400D2 be used in stadium or large-venue LED lighting systems?
Yes. Its 200W constant current output and wide input voltage tolerance (100–305VAC) make it appropriate for high-power LED arrays used in stadium perimeter or field lighting, particularly where dimming control via 0–10V or PWM is required.
