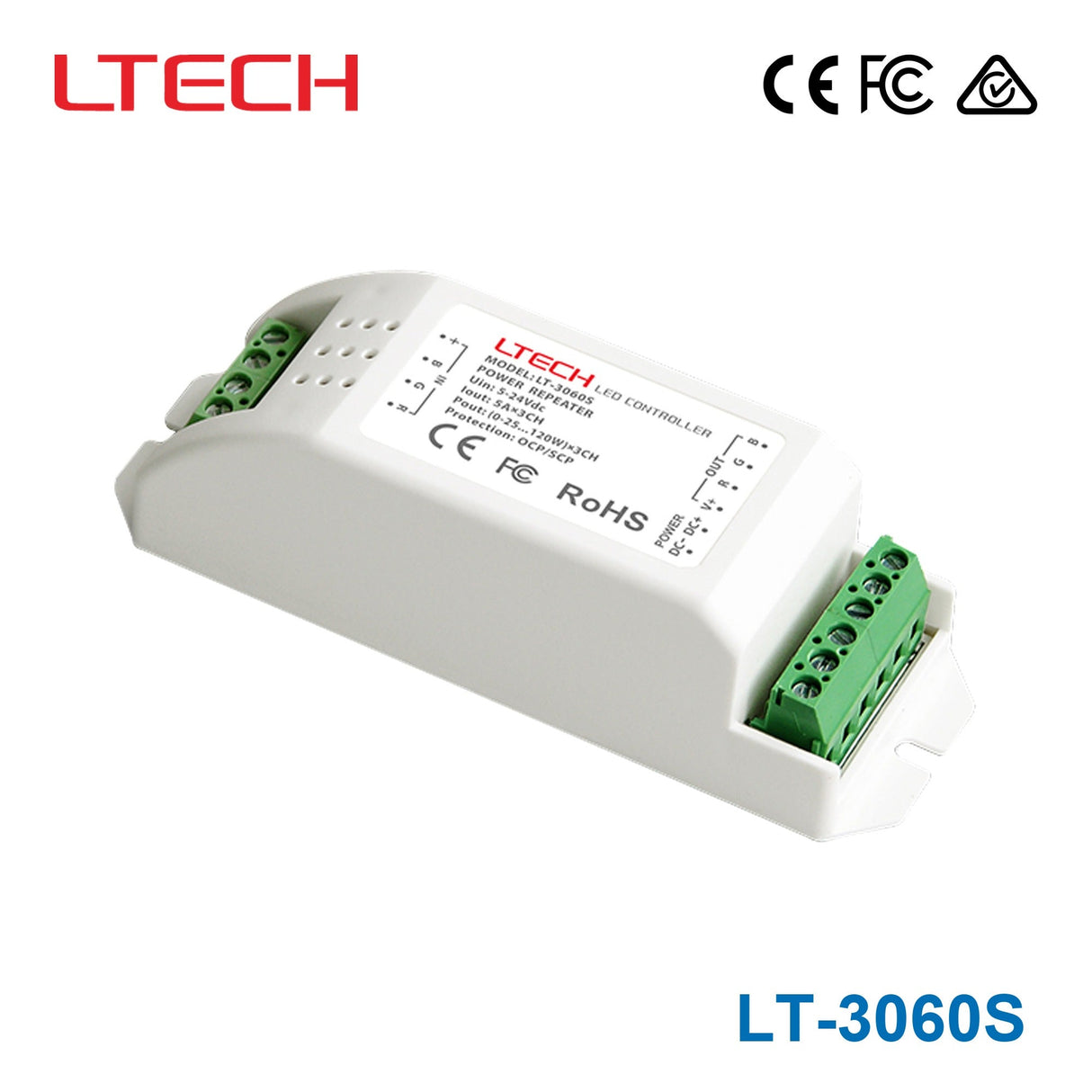

Ltech LT-3060S PWM Constant Voltage Repeater - RGB
The LT-3060S is a PWM constant voltage repeater designed to expand the power output capacity of compatible LED control systems. It is intended for RGB lighting applications where additional load capacity is needed beyond the original controller output.
Input 5~24VDC. 3 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5~24VDC
- ✓Output signal: PWM
- ✓Output channels: 5A - 3 Channel
- ✓Maximum load: 5A per channel
- ✓Maximum total load: 360W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 121 x 39 x 39mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating360 Watt
-
Output Voltage24 Volt
-
Rated Current15 Ampere
-
Input Voltage5V~24V
-
No of Output3
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.76 in
-
Width1.54 in
-
Height1.54 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3060S do?
The LT-3060S is a PWM constant voltage repeater designed to expand the power output capacity of compatible LED control systems. It is intended for RGB lighting applications where additional load capacity is needed beyond the original controller output.
What type of lighting is the LT-3060S intended for?
This model is intended for RGB constant voltage LED lighting systems. Its product name and repeater function make it suitable for applications where RGB loads need PWM signal-based power expansion.
What are the electrical ratings of the Ltech LT-3060S?
The LT-3060S is rated for 24 V output voltage, 15 A rated current, and 360 W power. These published ratings define the operating capacity of this specific repeater model.
Is the LT-3060S a dimmer or standalone lighting controller?
No, this model is described as a power repeater rather than a standalone dimming controller. Its role is to accept PWM control and expand output capacity for compatible control systems.
What operating environment is the LT-3060S rated for?
The specified operating temperature range is -30°C to 55°C. That range makes it suitable for demanding environments as long as the application stays within the stated limits.
Does the Ltech LT-3060S include a warranty?
Yes, the listed warranty period for the LT-3060S is 5 years. That gives buyers a clearly defined coverage term for this model.
