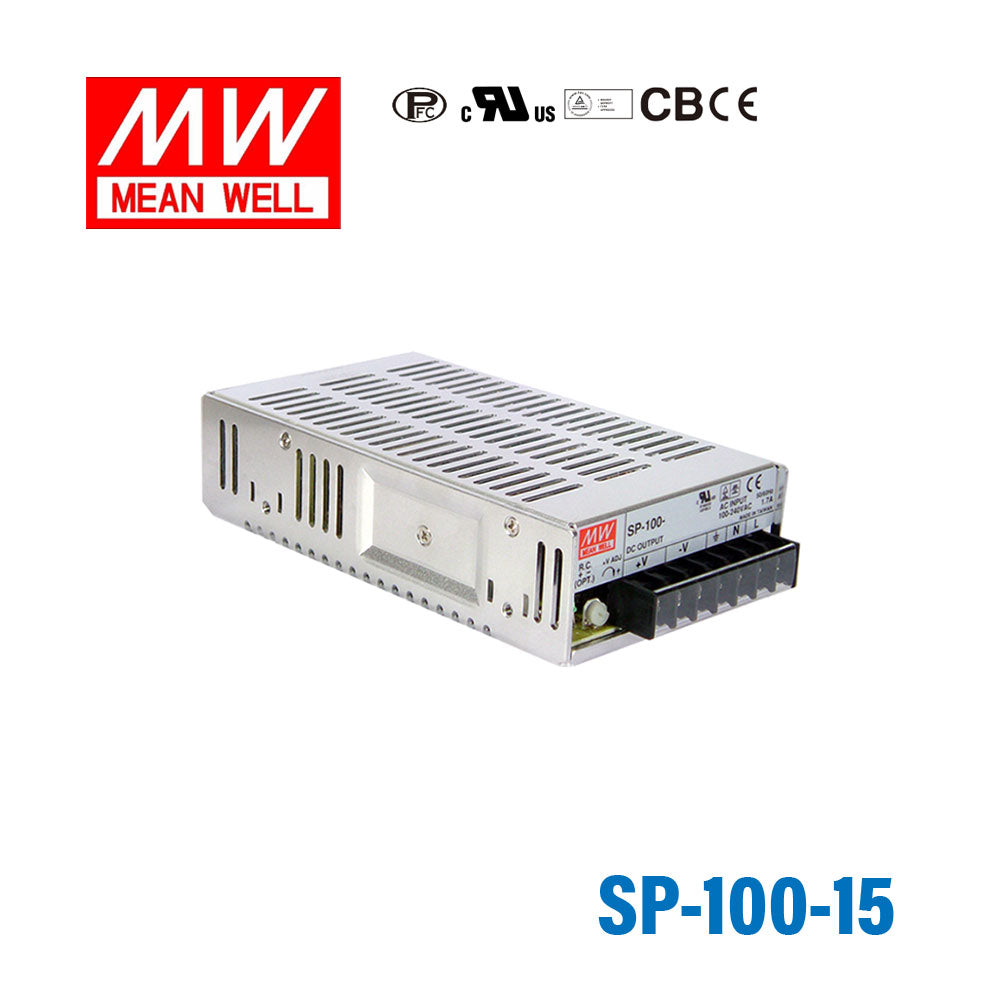

Mean Well SP-100-15 Power Supply 100W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-100-15 Power Supply 100W 15V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function PF>0.93
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Built-in constant current limiting circuit
- ✓Remote ON-OFF control(Optional)
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓Fixed switching frequency at PFC:67KHz PWM:134KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating100.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.77 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the SP-100-15 for a 15V industrial or automation power rail?
Yes, it is a constant voltage 15V supply rated for 100.5W and 6.7A. That makes it suitable for 15V industrial, automation, and embedded loads that fit within 6.7A.
Is the SP-100-15 a good fit for 15V test, control, or interface equipment?
It fits equipment that needs a regulated 15V output and can be powered from an 85-264VAC input. The 100.5W capacity supports moderate-power 15V devices in cabinets, benches, and control assemblies.
Can this model power 15V analog or communications hardware in an equipment enclosure?
It can, as long as the total demand stays within 6.7A at 15V. The constant voltage output is appropriate for electronics that require a fixed 15V rail rather than a variable or constant current source.
How do I check whether the SP-100-15 is the right size for my load?
Match your load to the unit's 15V output and confirm the total draw is no more than 6.7A or 100.5W. If your required current or wattage is higher than those values, you need a larger 15V model.
Is the SP-100-15 meant for indoor or outdoor environments?
The specified operating temperature is -10°C to +60°C, so the site temperature should remain within that band. Because no IP rating is listed, it is better used in protected indoor equipment or enclosures instead of exposed outdoor areas.
