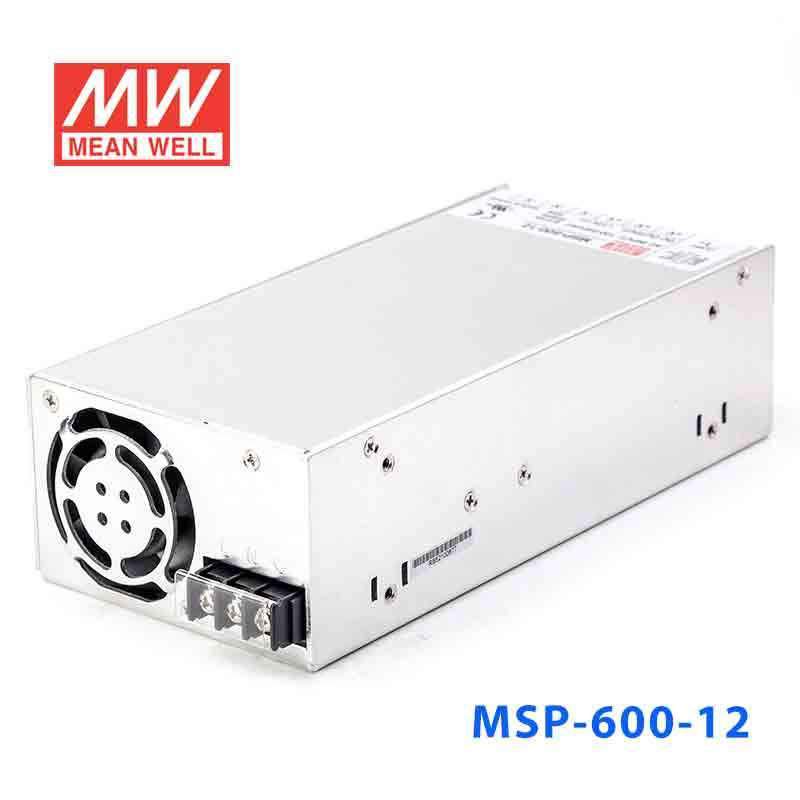

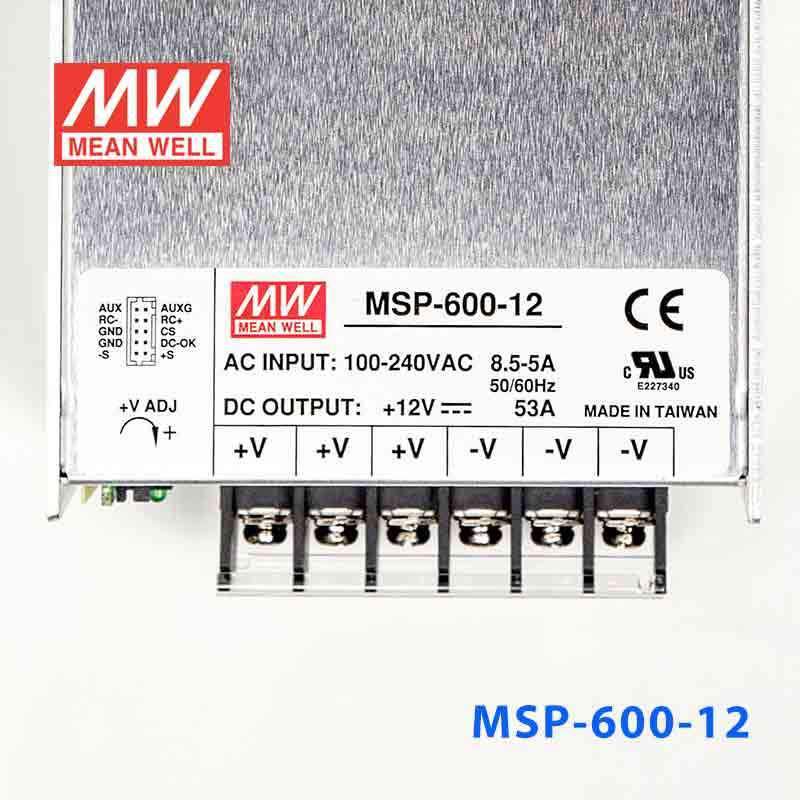

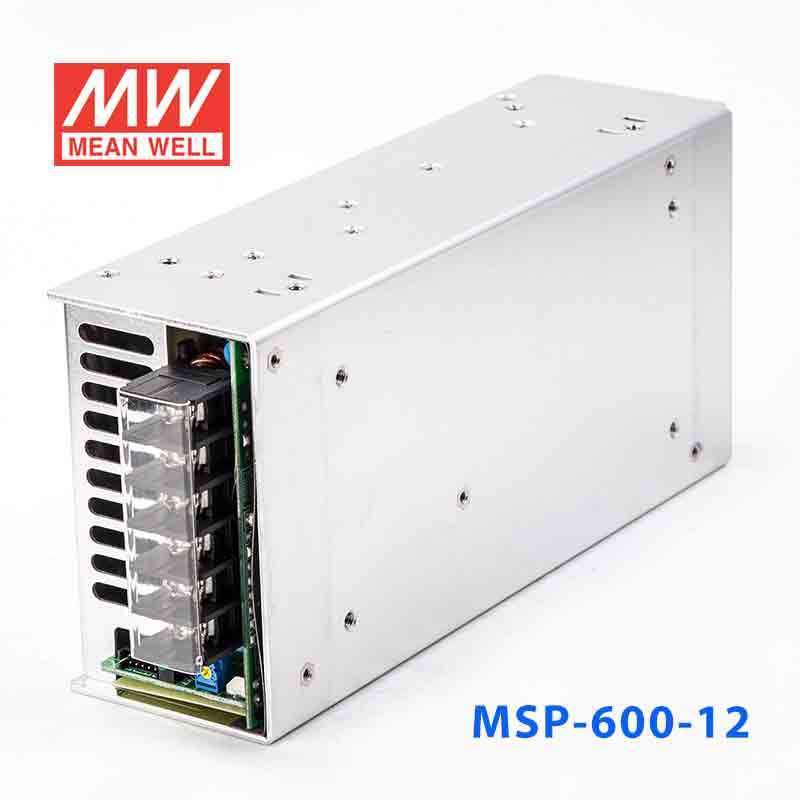

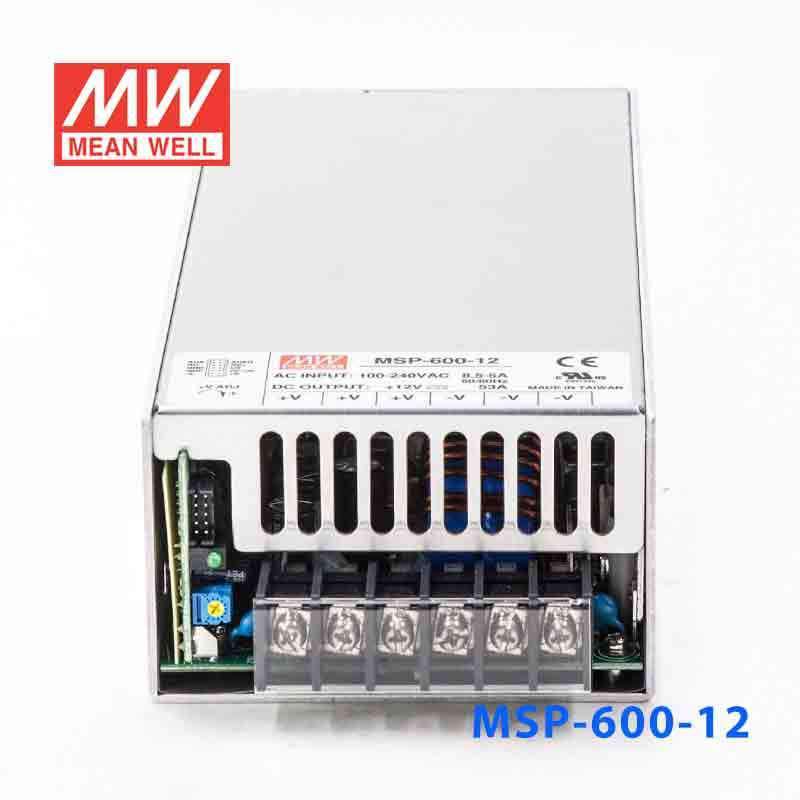

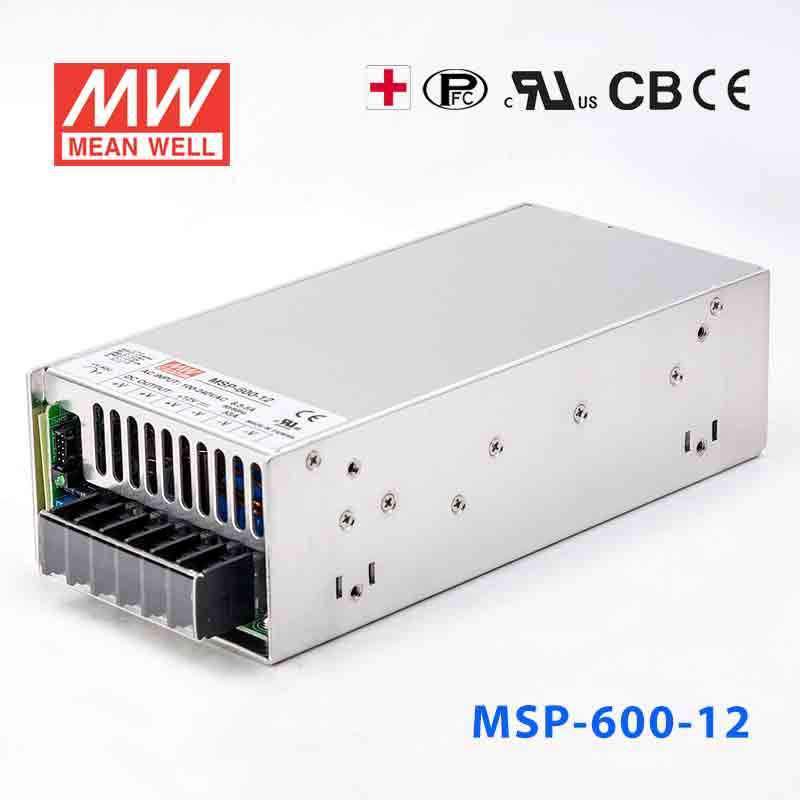

Mean Well MSP-600-12 Power Supply 636W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-600-12 Power Supply 636W 12V
The MSP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating636 Watt
-
Output Voltage12 Volt
-
Rated Current53 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
::specification::
Frequently Asked Questions
Can I use the MSP-600-12 for a 12V industrial control panel with multiple DC loads?
Yes, this model is a constant-voltage 12V supply rated for up to 636W and 53A. That makes it suitable for a 12V industrial control panel where the combined 12V load stays within 53A and 636W.
Is the MSP-600-12 a fit for 12V embedded systems or test benches that need high current?
It can be a fit for 12V embedded platforms, burn-in benches, or electronics test setups that need a regulated 12V bus with higher current capacity. The output rating is 53A at 12V, so it is better suited to higher-current 12V systems than lower-power bench supplies.
Can this power supply be used in 12V medical or laboratory equipment?
It is medical safety approved, which makes it relevant for medical or lab equipment that requires a constant 12V output. Buyers still need to confirm that the equipment's required DC bus is 12V and that total draw does not exceed 636W or 53A.
How do I know if the MSP-600-12 is large enough for my 12V DC load?
Size it by total output demand: this unit provides up to 636W at 12V, with a maximum output current of 53A. If your combined 12V load is above 53A or above 636W, you need a higher-capacity model.
Can the MSP-600-12 be used outdoors or in harsh environments?
The operating temperature range is -40°C to +70°C, so it covers a wide temperature window. However, no IP rating is listed in the product specs, so the published data does not identify it as an outdoor or weather-exposed power supply.
How does the MSP-600-12 compare with other MSP 12V models?
Within the 12V MSP family, the listed models are MSP-100-12 at 102W and 8.5A, MSP-200-12 at 200.4W and 16.7A, MSP-300-12 at 324W and 27A, MSP-450-12 at 450W and 37.5A, MSP-600-12 at 636W and 53A, MSP-1000-12 at 960W and 80A, and MSP-1600-12 at 1500W and 125A. The MSP-600-12 sits in the upper-middle of that range for 12V output capacity.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $201.31 | View |
| Mean Well MSP-600-5 Power Supply 600W 5V | 600W | 5V | 120A | Indoor | $200.21 | View |
| Mean Well MSP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $200.21 | View |
| Mean Well MSP-600-36 Power Supply 630W 36V | 630W | 36V | 17.5A | Indoor | $201.31 | View |
| Mean Well MSP-600-3.3 Power Supply 396W 3.3V | 396W | 3.3V | 120A | Indoor | $201.31 | View |
| Mean Well MSP-600-24 Power Supply 648W 24V | 648W | 24V | 27A | Indoor | $200.21 | View |
| Mean Well MSP-600-15 Power Supply 645W 15V | 645W | 15V | 43A | Indoor | $201.31 | View |
