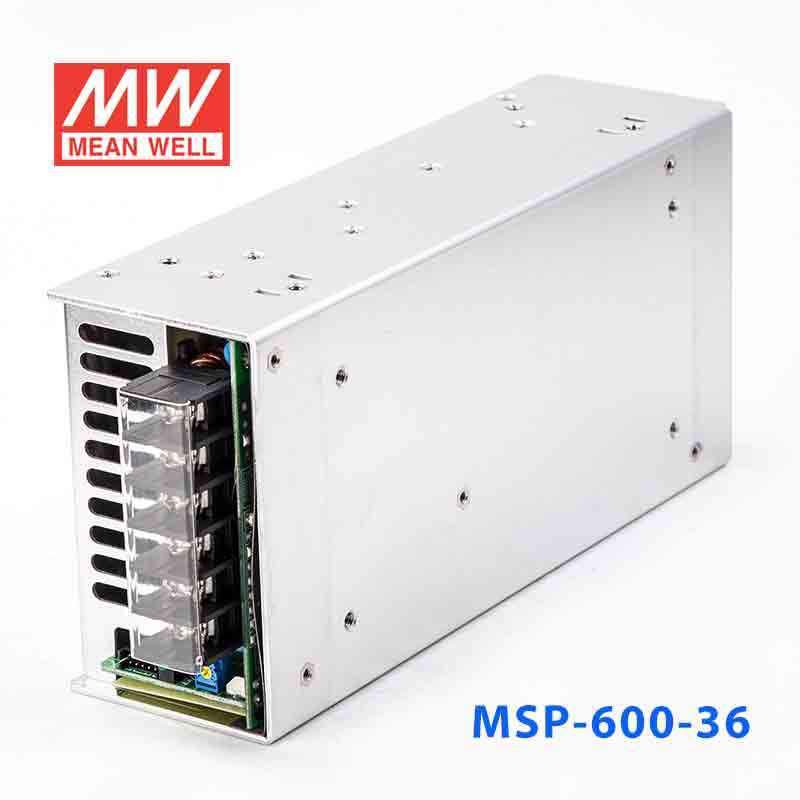

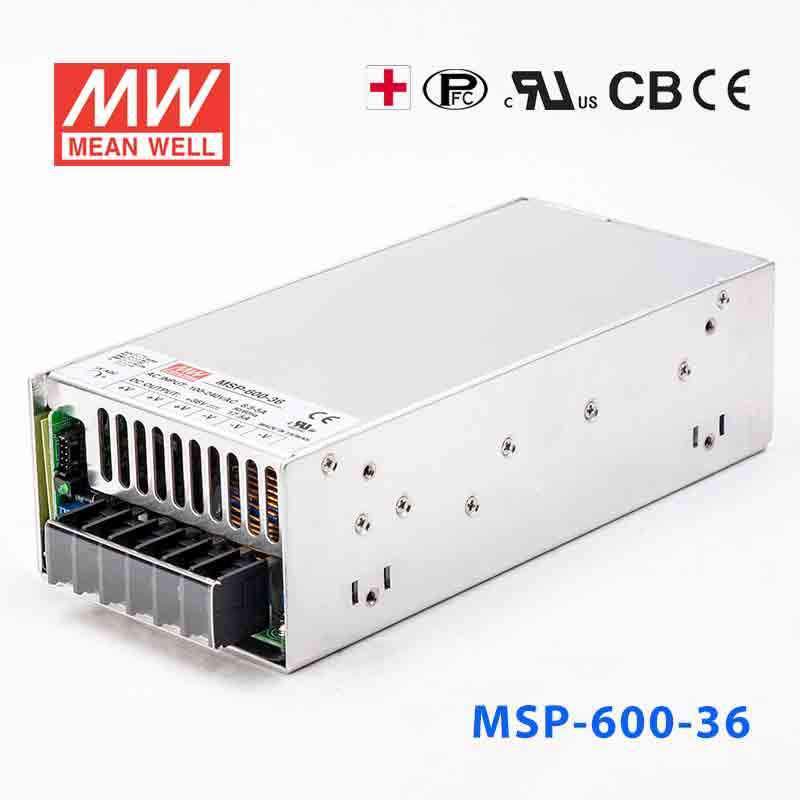

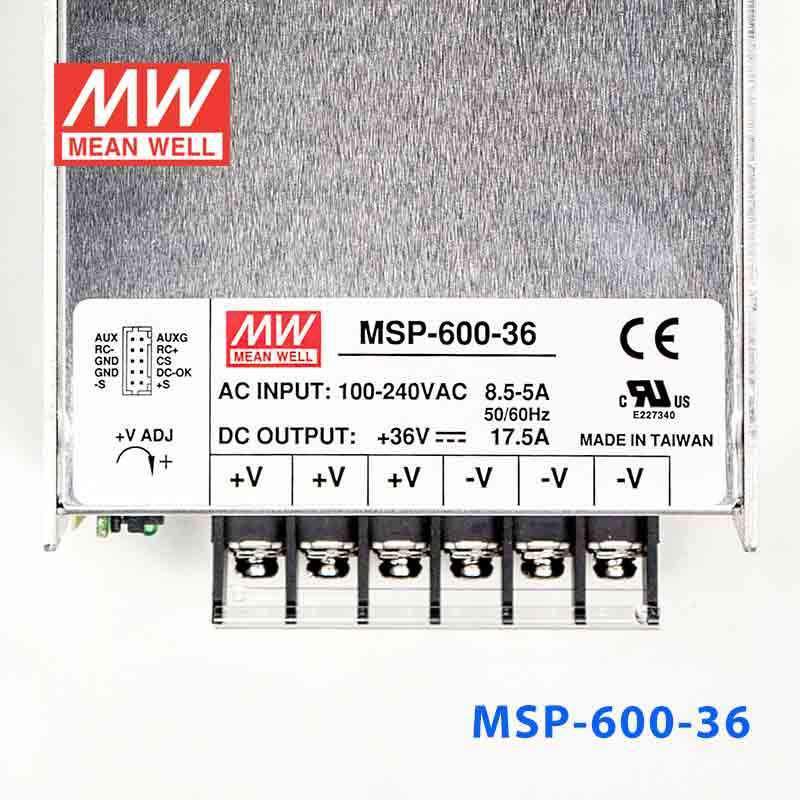

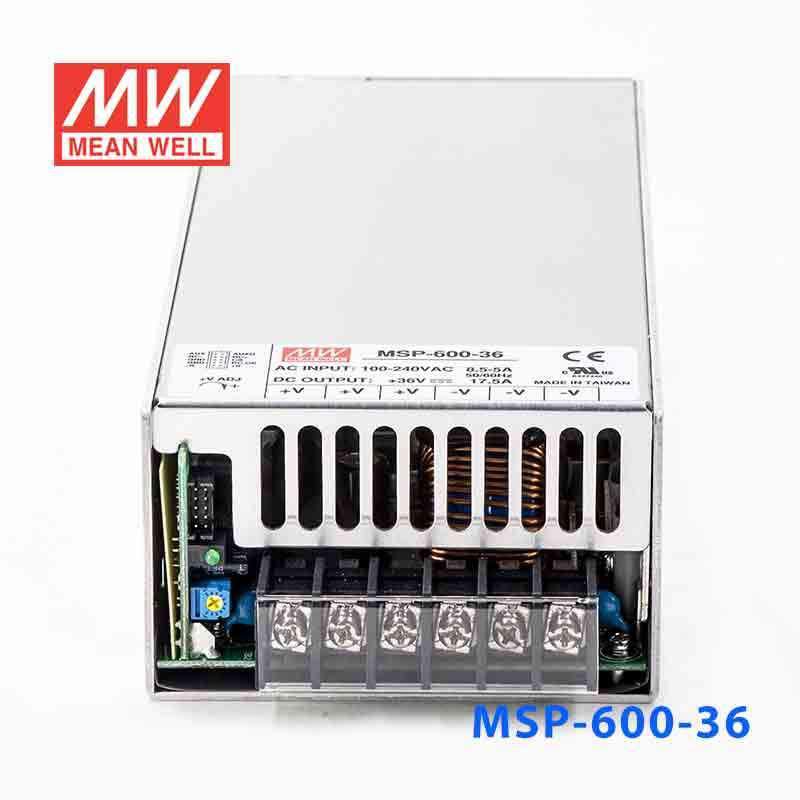

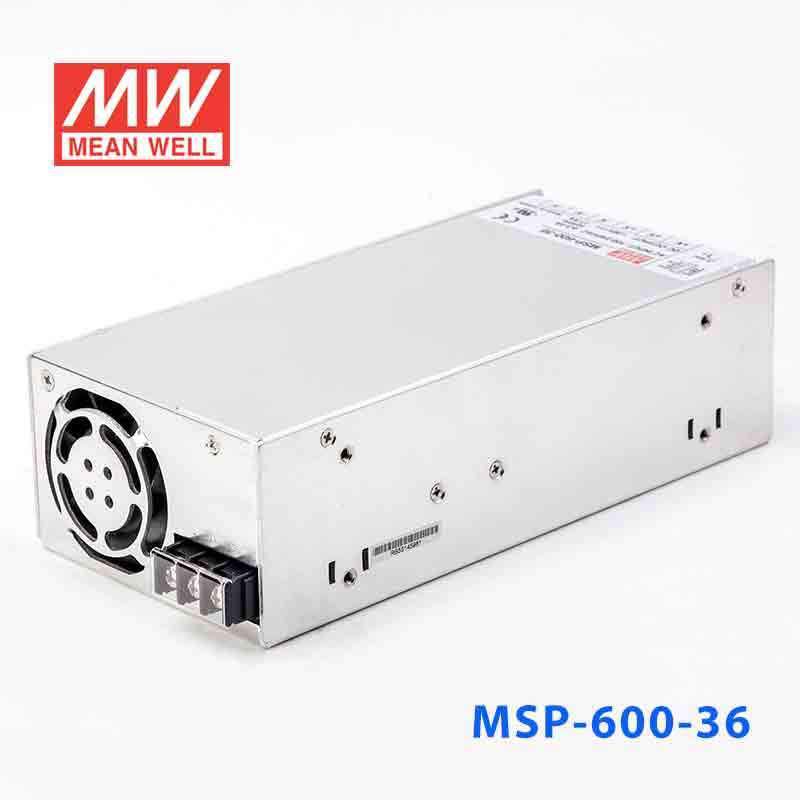

Mean Well MSP-600-36 Power Supply 630W 36V

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W
SKU:
MSP-600-36

Mpdel
$201.31 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling Fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
No load power consumption<0.8W
Standby 5V@0.3A
Built-in remote sense function
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) 35A/115VAC 80A/230VAC
Over current protection 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection 110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 218x 105x 63.5 mm

Specifications

  • Brand
    Mean Well
  • Series
    MSP Series
  • Power Rating
    630 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    17.5 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    8.58 in
  • Width
    4.13 in
  • Height
    2.5 in
  • Weight
    3.46 lb
