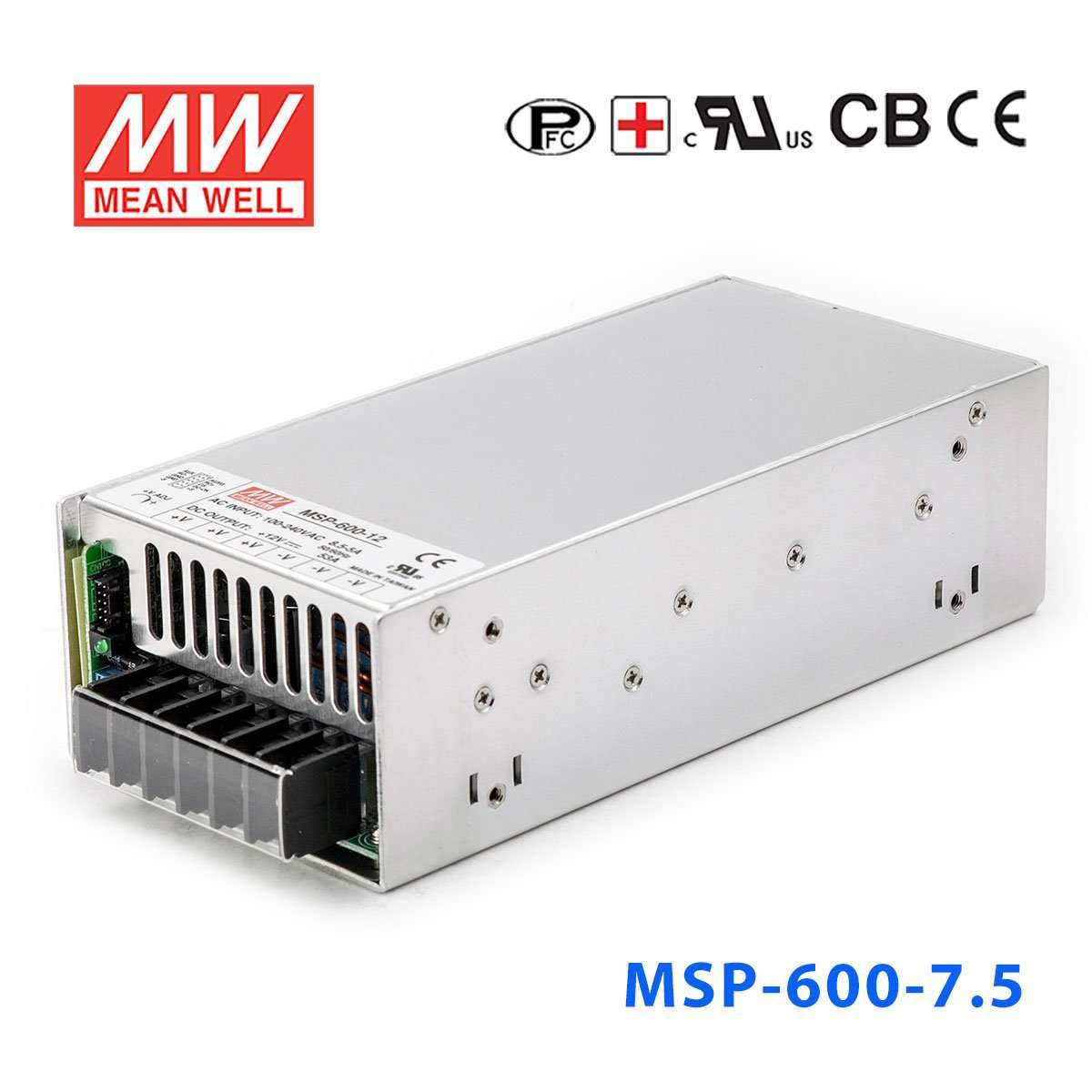

Mean Well MSP-600-7.5 Power Supply 600W 7.5V 80A

Name: Mean Well MSP-600-7.5 Power Supply 600W 7.5V 80A
Brand: Mean Well
SKU: MSP-600-7.5
Price: 201.31 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-600-7.5

$201.31 USD

Shipping calculated at checkout.

Select model — 5 in this family

MSP-600-7.5

MSP-100-7.5 100W 7.5V Backorder $55.83 USD

MSP-200-7.5 200W 7.5V Backorder $93.83 USD

MSP-300-7.5 300W 7.5V Backorder $129.06 USD

MSP-450-7.5 450W 7.5V Low stock $176.58 USD

MSP-600-7.5 600W 7.5V Backorder $201.31 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

MSP-600-7.5 is the 7.5V output model of this series: rated current 80A, rated power 600W, typical efficiency 86%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.8W (Note.7)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

Specifications

MSP-600-7.5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 7.5V
RATED CURRENT: 80A
CURRENT RANGE: 0 ~ 80A
RATED POWER: 600W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 6.8 ~ 9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 80A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.57Kg;8pcs/13.6Kg/1.34CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-7.5 Mechanical Specification — Mechanical Specification

MSP-600-7.5 Block Diagram — Block Diagram

MSP-600-7.5 Derating Curve — Derating Curve

MSP-600-7.5 Function Manual — Function Manual

MSP-600-7.5 M S P - 6 0 0 series — M S P - 6 0 0 series

Downloads

Datasheet1

MSP-600-7.5 datasheetMSP-600-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate (MSP-600)(EN) PDF Download

CB Certificate (MSP-600)(EN) PDF Download

EMC Certificate (MSP-600)(EN) PDF Download

Test reports1

Test Report(MSP-600-7.5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-600-7.5 for a 7.5V industrial or embedded DC load?

Yes, if the load requires constant 7.5V DC and stays within 80A and 600W. That makes it suitable for industrial, embedded, or OEM equipment designed around a 7.5V constant-voltage power rail.

Is the MSP-600-7.5 a good fit for high-current 7.5V electronics or control assemblies?

This model is intended for higher-current 7.5V applications because it can provide up to 80A at 600W. It is a practical option when a 7.5V assembly needs more capacity than smaller supplies provide.

Can the MSP-600-7.5 be used for a 7.5V production fixture or validation bench?

It can, as long as the fixture or bench load is a constant-voltage 7.5V application within the 600W and 80A rating. The 85-264VAC input range is also useful in lab and factory settings where available AC input may vary.

When should I choose the MSP-600-7.5 over another 7.5V MSP model?

Within the MSP-600 series covered by this sheet, the MSP-600-7.5 is the 7.5V model, rated 600W and 80A. Choose it when a 7.5V system needs up to 80A; ratings for 7.5V models of other MSP wattage classes are not on this sheet.

How does the MSP-600-7.5 compare with the rest of the MSP-600 family?

The MSP-600 models are MSP-600-3.3 at 396W and 120A, MSP-600-5 at 600W and 120A, MSP-600-7.5 at 600W and 80A, MSP-600-12 at 636W and 53A, MSP-600-15 at 645W and 43A, MSP-600-24 at 648W and 27A, MSP-600-36 at 630W and 17.5A, and MSP-600-48 at 624W and 13A. The main selection difference is the output voltage and the matching current rating.

Can the MSP-600-7.5 be used in cold, hot, or outdoor environments?

The published operating temperature range is -40°C to +70°C, with load derating required at higher temperatures (see the derating curve). No IP rating appears in the provided specs, so exposed outdoor use should not be assumed without an enclosure or additional environmental protection.
