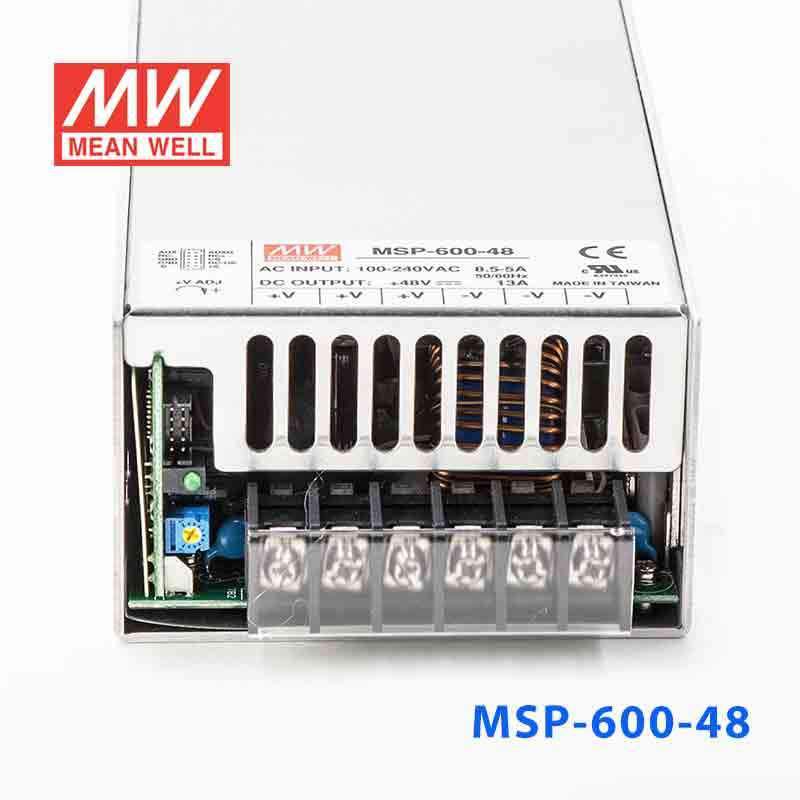

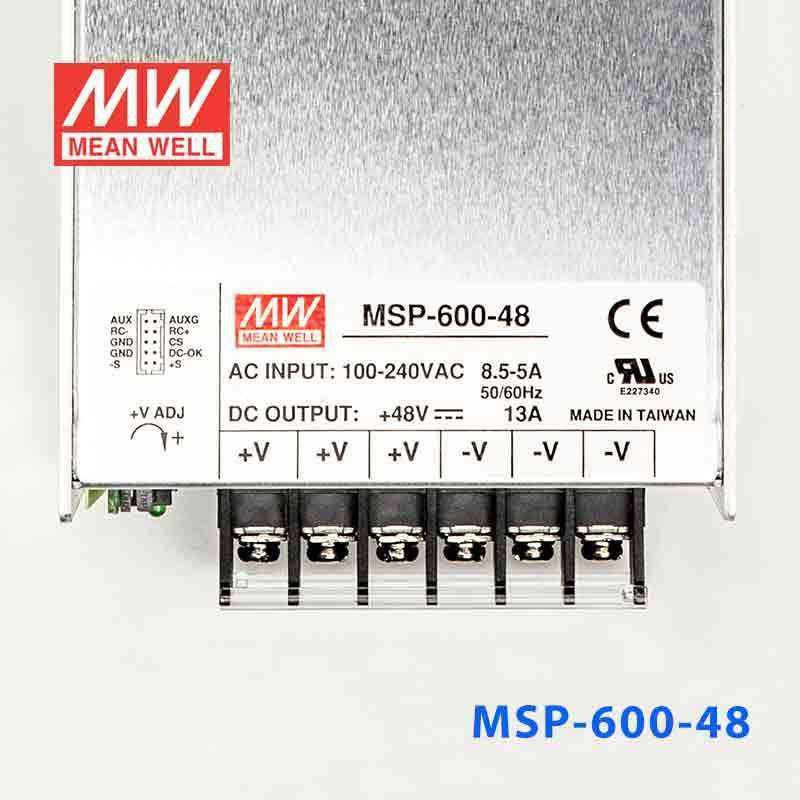

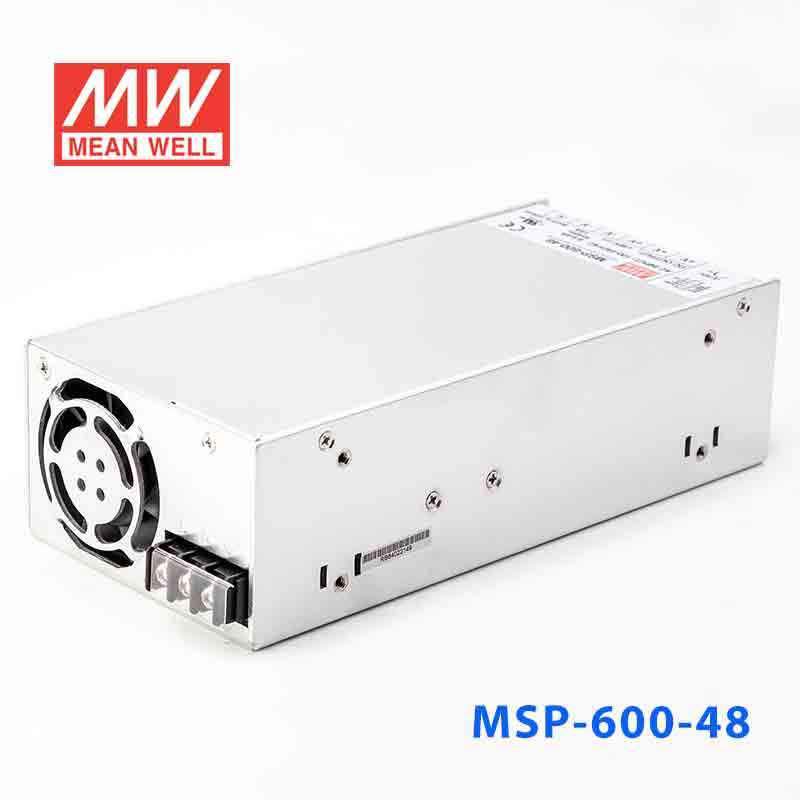

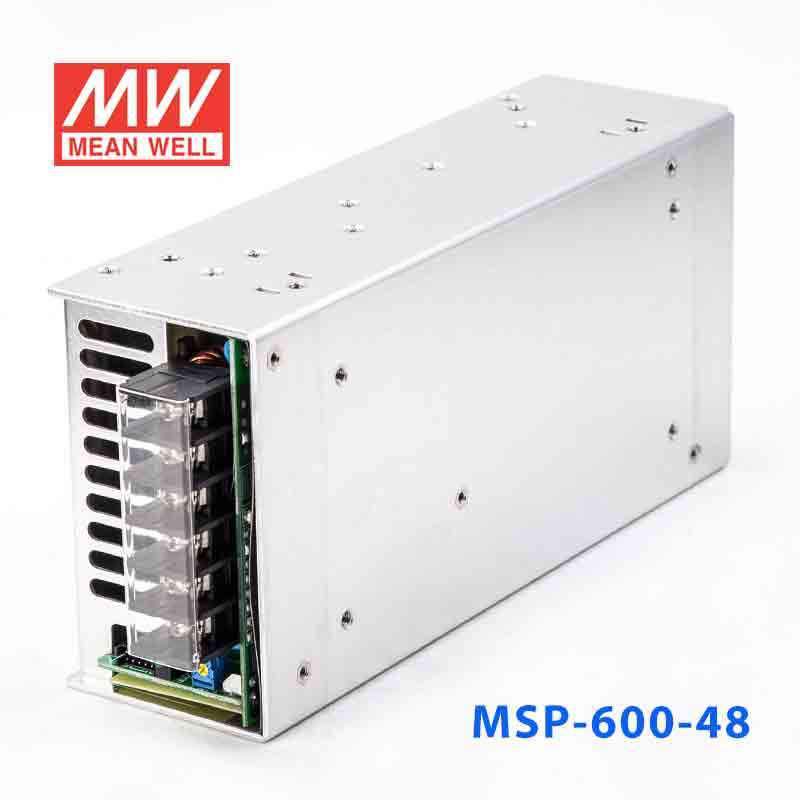

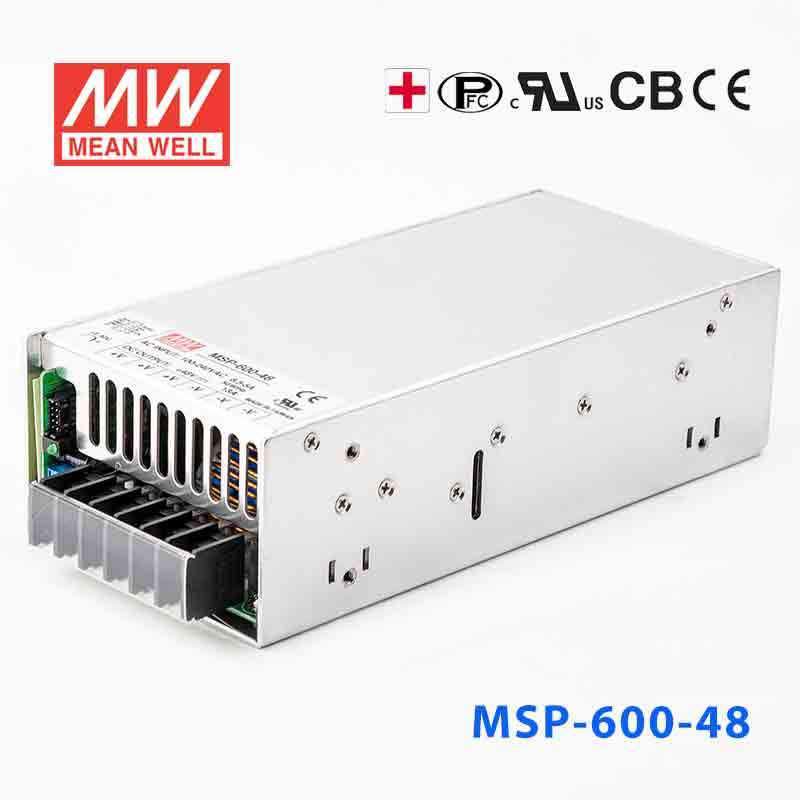

Mean Well MSP-600-48 Power Supply 624W 48V
built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W
SKU:
MSP-600-48
$200.21 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-600-48 Power Supply 624W 48V
$200.21 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.94 |
| High efficiency up to 89% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Medical safety approved (MOOP level) |
| Built-in cooling Fan ON-OFF control |
| Built-in DC OK signal |
| Built-in remote ON-OFF control |
| No load power consumption<0.8W |
| Standby 5V@0.3A |
| Built-in remote sense function |
| Current sharing up to 2400W (3+1) (24V,36V,48V) |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | 35A/115VAC 80A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 218x 105x 63.5 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating624 Watt
-
Output Voltage48 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
