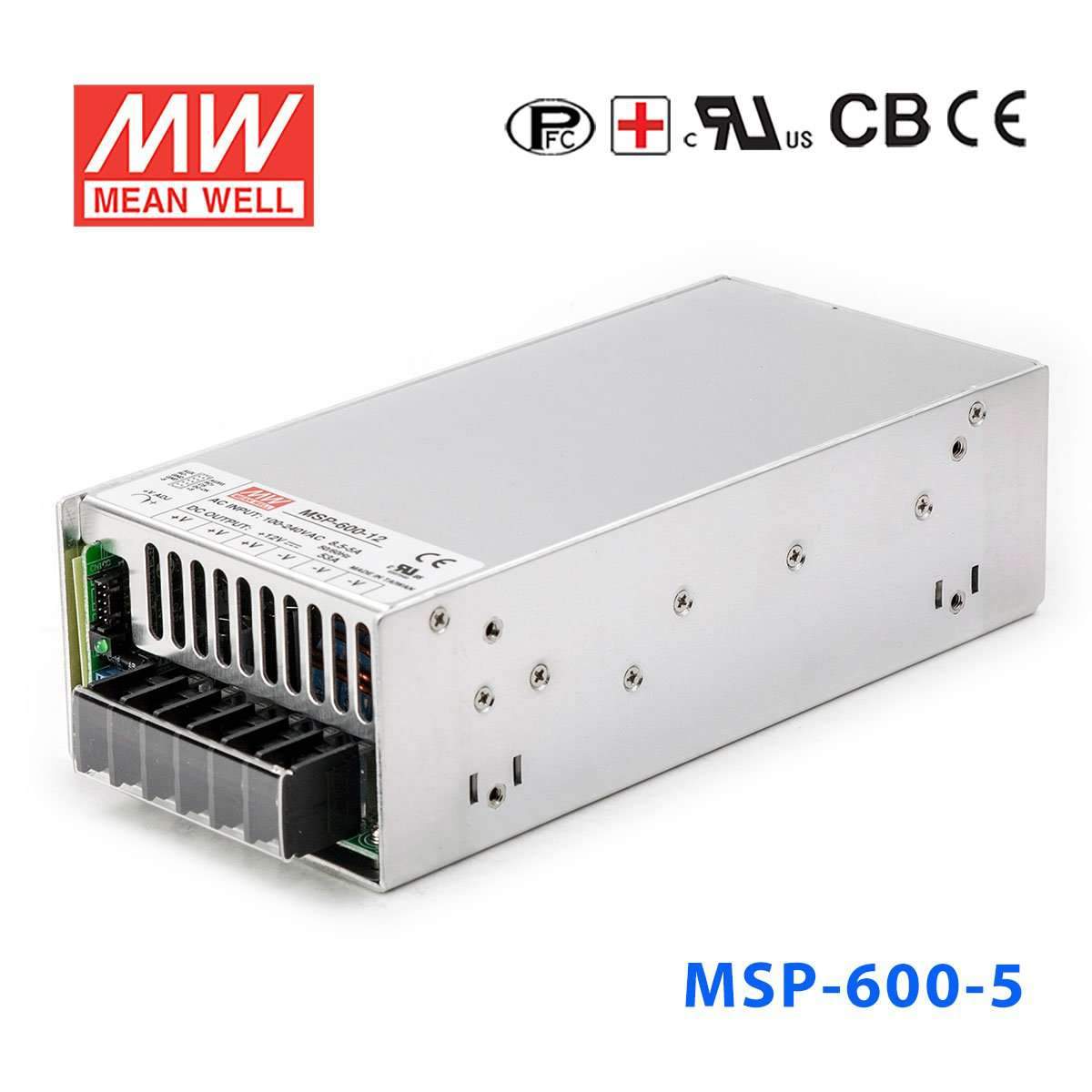

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MSP-600-5 Power Supply 600W 5V 120A

Name: Mean Well MSP-600-5 Power Supply 600W 5V 120A
Brand: Mean Well
SKU: MSP-600-5
Price: 200.21 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-600-5

$200.21 USD

Shipping calculated at checkout.

Select model — 3 in this family

MSP-600-5

MSP-100-5 100W 5V Low stock $55.85 USD

MSP-200-5 200W 5V Low stock $93.83 USD

MSP-600-5 600W 5V Low stock $200.21 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

MSP-600-5 is the 5V output model of this series: rated current 120A, rated power 600W, typical efficiency 82%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.8W (Note.7)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

Specifications

MSP-600-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 120A
CURRENT RANGE: 0 ~ 120A
RATED POWER: 600W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 4.3 ~ 5.8V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 80A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 6 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.57Kg;8pcs/13.6Kg/1.34CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-5 Mechanical Specification — Mechanical Specification

MSP-600-5 Derating Curve — Derating Curve

MSP-600-5 Function Manual — Function Manual

MSP-600-5 M S P - 6 0 0 series — M S P - 6 0 0 series

Downloads

Datasheet1

MSP-600-5 datasheetMSP-600-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate (MSP-600)(EN) PDF Download

CB Certificate (MSP-600)(EN) PDF Download

EMC Certificate (MSP-600)(EN) PDF Download

Test reports1

Test Report(MSP-600-5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-600-5 for a 5V industrial controller or logic-heavy embedded system?

It is designed for constant-voltage 5V output and can deliver up to 120A with 600W total power. That makes it suitable for high-current 5V industrial controllers, embedded systems, or logic-focused equipment that need a strong 5V rail.

Is the MSP-600-5 appropriate for powering multiple 5V devices from one supply in an automation cabinet?

It can support larger grouped 5V loads because it provides 600W and up to 120A at constant voltage. It is best suited to centralized 5V DC applications where the combined demand stays within those published limits.

Can the MSP-600-5 support a 5V test fixture, burn-in rack, or production bench load?

Yes, this model is a fit for 5V bench, fixture, or production environments that need substantial current capacity. Its 85-264VAC input range also supports use in facilities with different AC input conditions.

When would the MSP-600-5 make more sense than a lower-power 5V model?

Within the MSP-600 series on this sheet, the MSP-600-5 is the 5V model at 600W and 120A; ratings for lower-power 5V MSP models are not given here. It makes sense when a 5V load needs up to 120A of current headroom.

How does the MSP-600-5 compare with the other MSP-600 versions?

In the MSP-600 range, MSP-600-3.3 is 396W and 120A, MSP-600-5 is 600W and 120A, MSP-600-7.5 is 600W and 80A, MSP-600-12 is 636W and 53A, MSP-600-15 is 645W and 43A, MSP-600-24 is 648W and 27A, MSP-600-36 is 630W and 17.5A, and MSP-600-48 is 624W and 13A. The family keeps a similar form factor while changing output voltage, wattage, and current.

Is the MSP-600-5 suitable for outdoor or high-temperature environments?

Its operating temperature range is -40°C to +70°C, but output must be derated at higher ambient temperatures (see the derating curve). The provided specs do not include an IP rating, so outdoor exposure or wet-location suitability cannot be confirmed from this product data alone.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well MSP-600-7.5 Power Supply 600W 7.5V 80A	600W	7.5V	80A	IP20	$201.31	View
Mean Well MSP-600-48 Power Supply 624W 48V 13A	624W	48V	13A	IP20	$200.21	View
Mean Well MSP-600-36 Power Supply 630W 36V 17.5A	630W	36V	17.5A	IP20	$201.31	View
Mean Well MSP-600-3.3 Power Supply 396W 3.3V 120A	396W	3.3V	120A	IP20	$201.31	View
Mean Well MSP-600-24 Power Supply 648W 24V 27A	648W	24V	27A	IP20	$200.21	View
Mean Well MSP-600-15 Power Supply 645W 15V 43A	645W	15V	43A	IP20	$201.31	View
Mean Well MSP-600-12 Power Supply 636W 12V 53A	636W	12V	53A	IP20	$200.21	View
