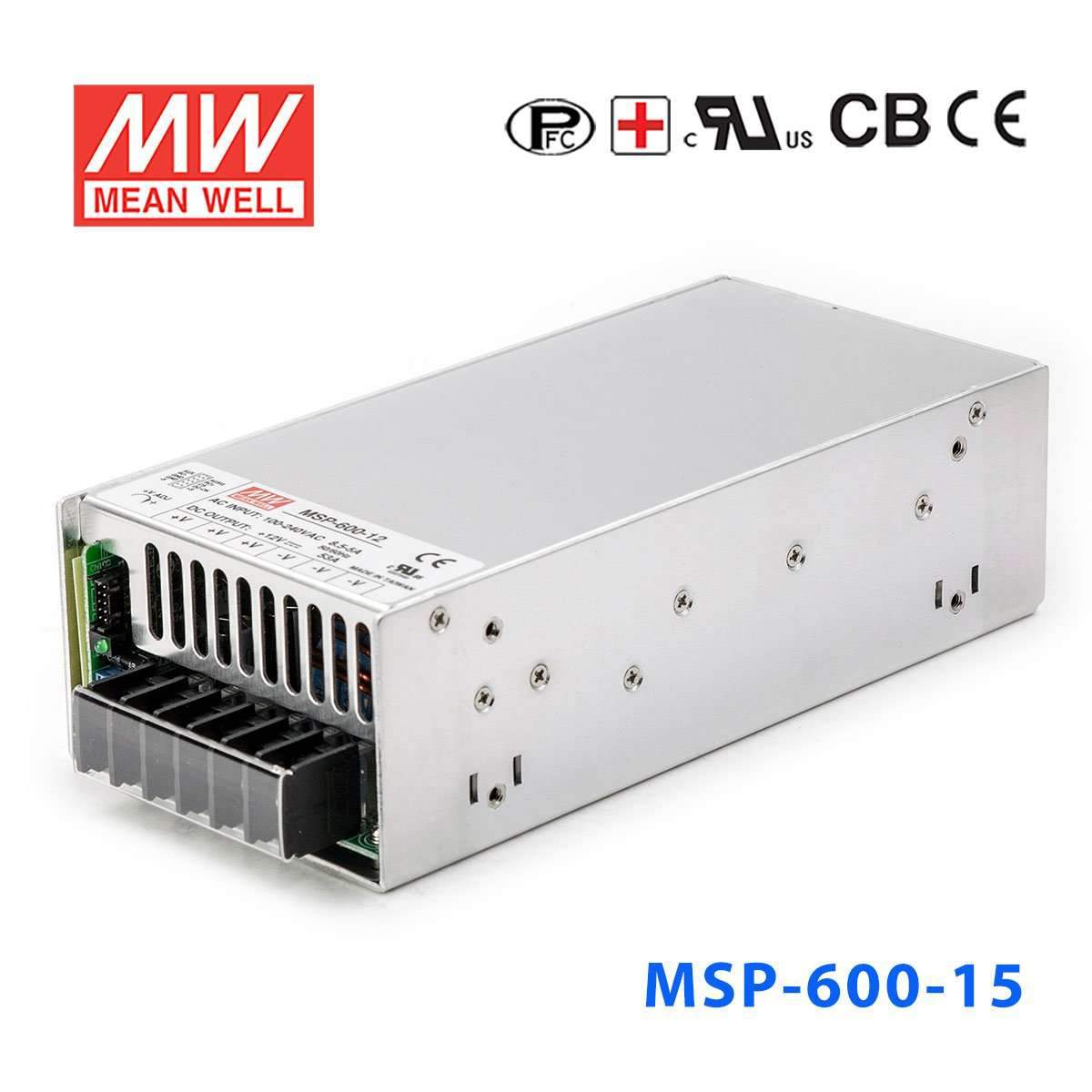

Mean Well MSP-600-15 Power Supply 645W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-600-15 Power Supply 645W 15V
The MSP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating645 Watt
-
Output Voltage15 Volt
-
Rated Current43 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
::specification::
Frequently Asked Questions
Can I use the MSP-600-15 for a 15V automation or control system?
Yes, if the system requires a constant 15V DC source and the total load stays within 645W and 43A. That rating suits higher-power 15V automation, industrial electronics, or control assemblies better than smaller 15V supplies.
Is the MSP-600-15 suitable for 15V embedded electronics racks or validation fixtures?
It can be used where a 15V constant-voltage rail is needed for embedded hardware racks, production fixtures, or lab validation setups. The unit delivers up to 43A at 15V, which is useful when multiple 15V devices share the same power source.
Can this model power 15V medical equipment that needs a regulated DC output?
This series is medical safety approved, so it can be considered for medical equipment that specifies a 15V constant-voltage input. The key checks are that the equipment actually requires 15V and that the total draw remains within 645W and 43A.
How can I tell whether the MSP-600-15 has enough capacity for my 15V load?
Use the nameplate ratings: this unit is rated for 645W total and 43A at 15V. If the combined demand of your 15V loads exceeds either 43A or 645W, this model is undersized.
Is the MSP-600-15 meant for indoor or outdoor use?
The specified operating temperature range is -40°C to +70°C, which supports use across a broad temperature span. But the specs do not list an IP rating, so the published product data does not define it as an outdoor or washdown-rated unit.
What are the main differences between the MSP-600-15 and the other MSP-600 voltage options?
In the MSP-600 group, the listed outputs are 3.3V at 396W and 120A, 5V at 600W and 120A, 7.5V at 600W and 80A, 12V at 636W and 53A, 15V at 645W and 43A, 24V at 648W and 27A, 36V at 630W and 17.5A, and 48V at 624W and 13A. The MSP-600-15 keeps the same form factor family but uses a 15V output with 43A maximum current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $201.31 | View |
| Mean Well MSP-600-5 Power Supply 600W 5V | 600W | 5V | 120A | Indoor | $200.21 | View |
| Mean Well MSP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $200.21 | View |
| Mean Well MSP-600-36 Power Supply 630W 36V | 630W | 36V | 17.5A | Indoor | $201.31 | View |
| Mean Well MSP-600-3.3 Power Supply 396W 3.3V | 396W | 3.3V | 120A | Indoor | $201.31 | View |
| Mean Well MSP-600-24 Power Supply 648W 24V | 648W | 24V | 27A | Indoor | $200.21 | View |
| Mean Well MSP-600-12 Power Supply 636W 12V | 636W | 12V | 53A | Indoor | $200.21 | View |
