Mean Well MSP-600-24 Power Supply 648W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours

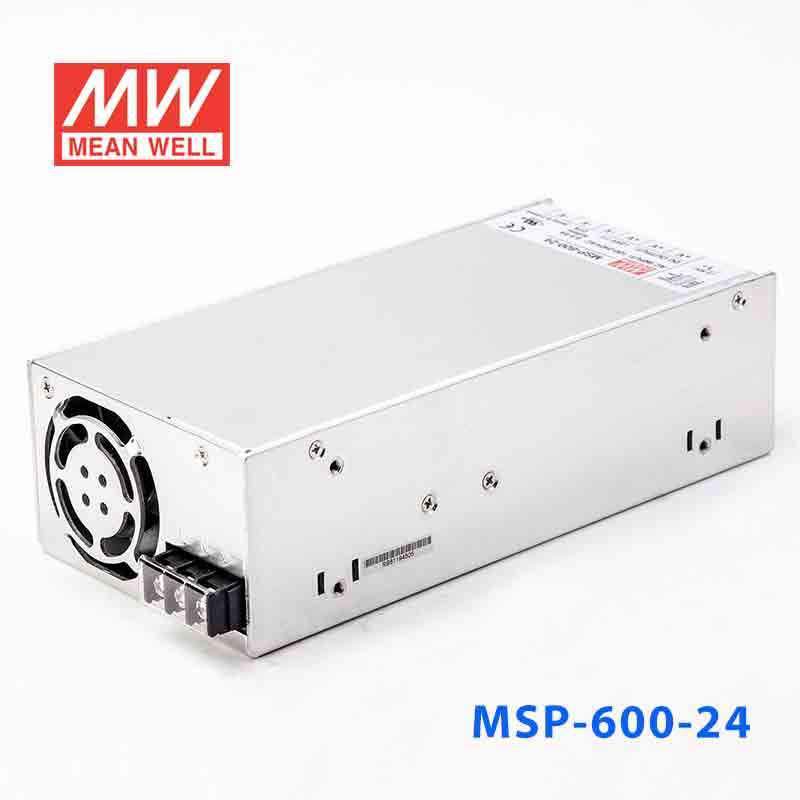

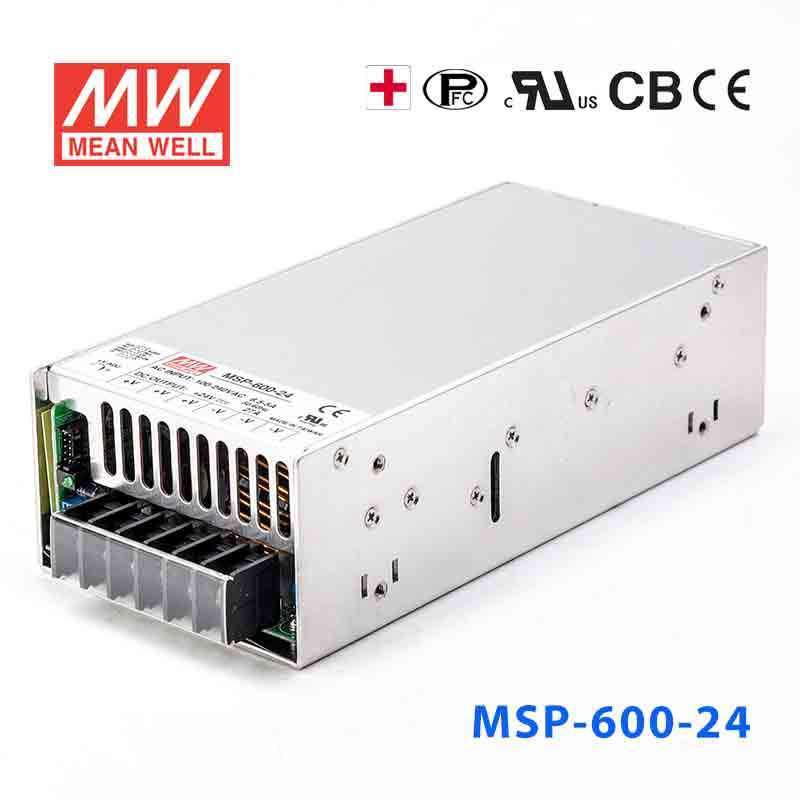

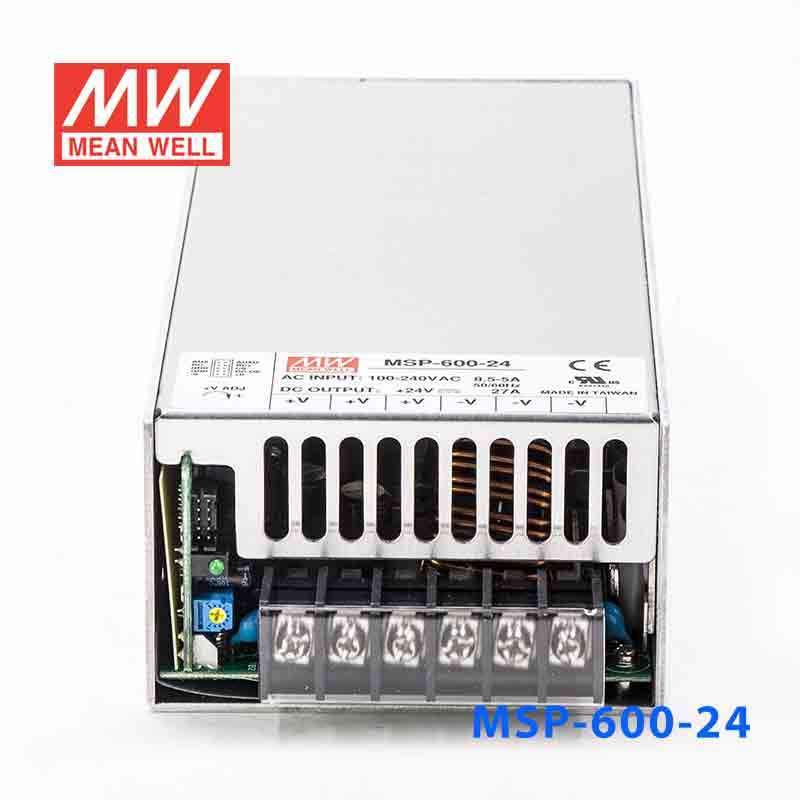

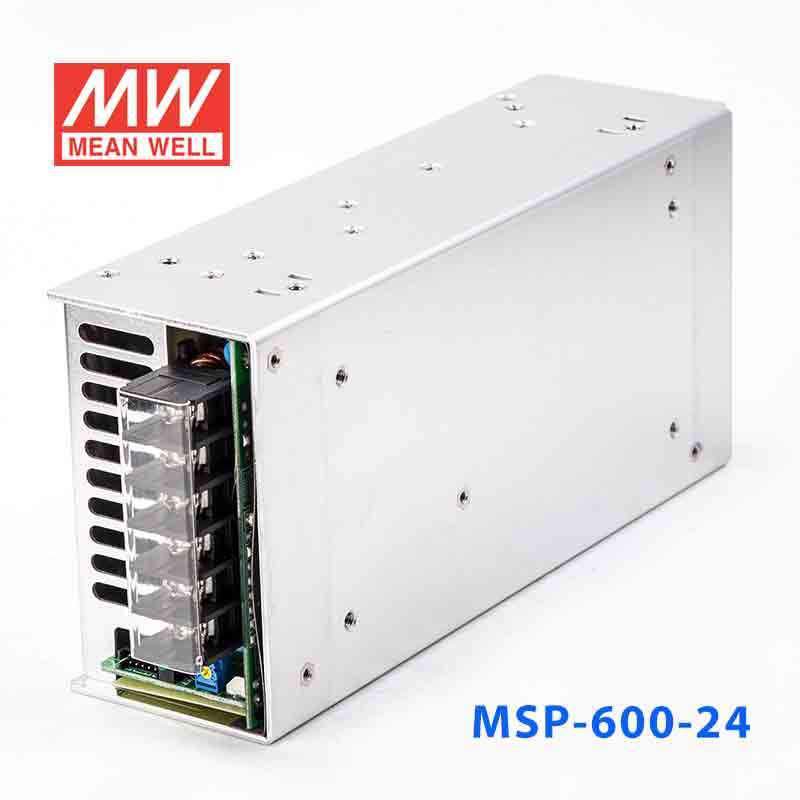

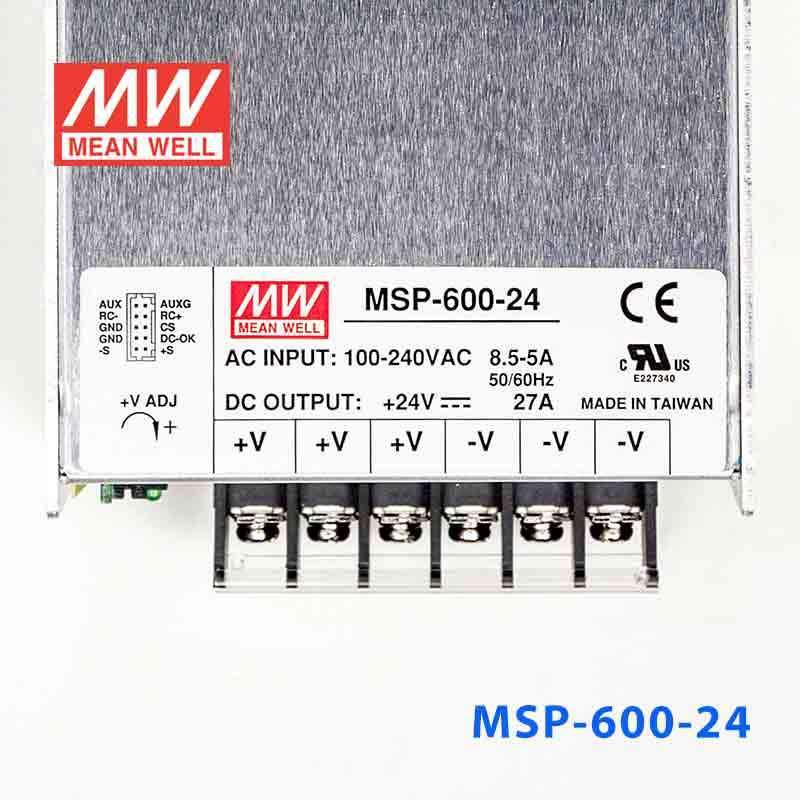

Mean Well MSP-600-24 Power Supply 648W 24V
The MSP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating648 Watt
-
Output Voltage24 Volt
-
Rated Current27 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
::specification::
Frequently Asked Questions
Can I use the MSP-600-24 for a 24V industrial automation cabinet?
Yes, this is a constant-voltage 24V power supply rated for up to 648W and 27A. It is suitable for 24V industrial automation or control cabinets when the combined 24V load stays within those limits.
Is the MSP-600-24 suitable for 24V PLC and industrial control loads?
It can be used for 24V PLC-related and general industrial control loads that need a regulated 24V bus. The main sizing check is whether total current remains at or below 27A and total power remains at or below 648W.
Can this model be used for 24V embedded systems or machine electronics?
Yes, if the electronics are designed for constant 24V input. With a 27A output rating, it can support larger 24V embedded or machine-electronics assemblies than lower-wattage 24V supplies in the same series.
How much 24V load can the MSP-600-24 support?
The rated output is 648W at 24V, with a maximum output current of 27A. That means it should be selected only for 24V systems whose total demand stays within both 27A and 648W.
Can the MSP-600-24 be used in hot, cold, or outdoor locations?
The published operating range is -40°C to +70°C, so the temperature spec is broad. However, no IP rating is shown in the specs, so the product data does not identify it as an outdoor-rated or weather-resistant supply.
How does the MSP-600-24 compare with other 24V MSP models?
The 24V MSP siblings listed are MSP-100-24 at 108W and 4.5A, MSP-200-24 at 201.6W and 8.4A, MSP-300-24 at 336W and 14A, MSP-450-24 at 451.2W and 18.8A, MSP-600-24 at 648W and 27A, MSP-1000-24 at 1008W and 42A, and MSP-1600-24 at 1608W and 67A. The MSP-600-24 provides more headroom than the 100W to 450W models, but less than the 1000W and 1600W versions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $201.31 | View |
| Mean Well MSP-600-5 Power Supply 600W 5V | 600W | 5V | 120A | Indoor | $200.21 | View |
| Mean Well MSP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $200.21 | View |
| Mean Well MSP-600-36 Power Supply 630W 36V | 630W | 36V | 17.5A | Indoor | $201.31 | View |
| Mean Well MSP-600-3.3 Power Supply 396W 3.3V | 396W | 3.3V | 120A | Indoor | $201.31 | View |
| Mean Well MSP-600-15 Power Supply 645W 15V | 645W | 15V | 43A | Indoor | $201.31 | View |
| Mean Well MSP-600-12 Power Supply 636W 12V | 636W | 12V | 53A | Indoor | $200.21 | View |
