Mean Well MSP-600-36 Power Supply 630W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours

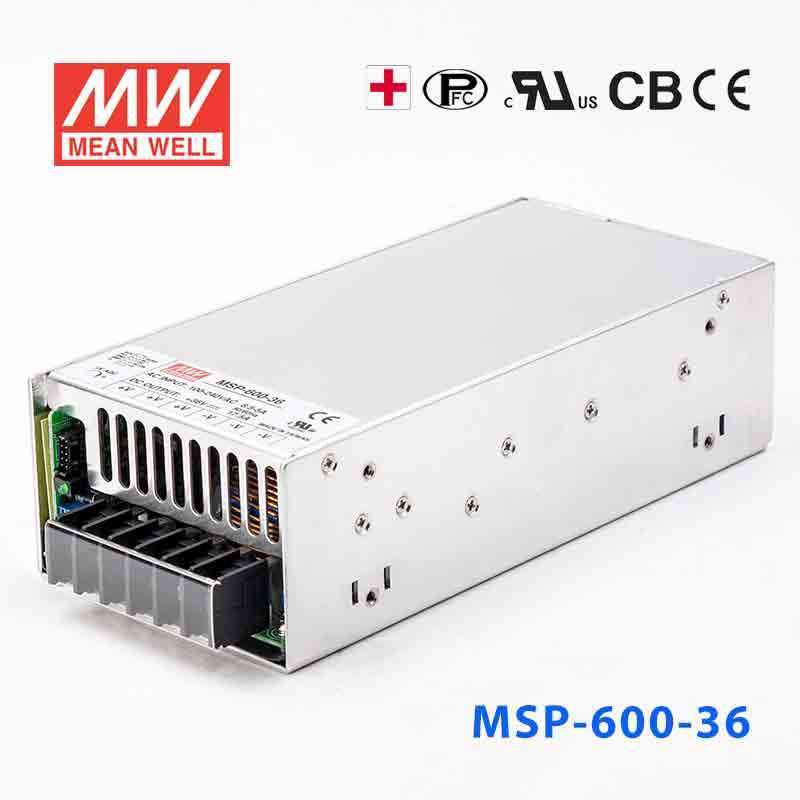

Mean Well MSP-600-36 Power Supply 630W 36V
The MSP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating630 Watt
-
Output Voltage36 Volt
-
Rated Current17.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
::specification::
Frequently Asked Questions
Can I use the MSP-600-36 for a 36V industrial control or automation system?
Yes, if the equipment requires constant 36V DC and total demand stays within 630W and 17.5A. That makes it a fit for 36V industrial control or automation systems that need more power than smaller 36V supplies.
Is the MSP-600-36 suitable for 36V embedded equipment or machine subsystems?
It can be used for embedded or machine-level electronics built around a 36V constant-voltage bus. The available output is 17.5A at 36V, so it supports higher-load 36V assemblies within that published limit.
Can this model be used in medical or laboratory equipment that runs on 36V DC?
This series is medical safety approved, so it can be considered where a medical or lab device requires a constant 36V input. The equipment still needs to match the 36V output and stay within the 630W and 17.5A ratings.
How much 36V capacity does the MSP-600-36 provide?
The output rating is 630W total, with 17.5A available at 36V. For sizing, both numbers matter: the connected 36V load must stay within 17.5A and within 630W.
Can the MSP-600-36 be used outdoors or in wide-temperature environments?
The specified operating temperature range is -40°C to +70°C, so it is rated across a wide ambient-temperature span. However, no IP rating is listed in the specs, so the published data does not present it as an outdoor-exposed power supply.
How does the MSP-600-36 compare with other 36V models in the MSP series?
The listed 36V models are MSP-100-36 at 104.4W and 2.9A, MSP-200-36 at 205.2W and 5.7A, MSP-300-36 at 324W and 9A, MSP-450-36 at 450W and 12.5A, MSP-600-36 at 630W and 17.5A, and MSP-1600-36 at 1602W and 44.5A. The MSP-600-36 sits above the 100W to 450W units and below the 1600W model in 36V output capacity.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $201.31 | View |
| Mean Well MSP-600-5 Power Supply 600W 5V | 600W | 5V | 120A | Indoor | $200.21 | View |
| Mean Well MSP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $200.21 | View |
| Mean Well MSP-600-3.3 Power Supply 396W 3.3V | 396W | 3.3V | 120A | Indoor | $201.31 | View |
| Mean Well MSP-600-24 Power Supply 648W 24V | 648W | 24V | 27A | Indoor | $200.21 | View |
| Mean Well MSP-600-15 Power Supply 645W 15V | 645W | 15V | 43A | Indoor | $201.31 | View |
| Mean Well MSP-600-12 Power Supply 636W 12V | 636W | 12V | 53A | Indoor | $200.21 | View |
