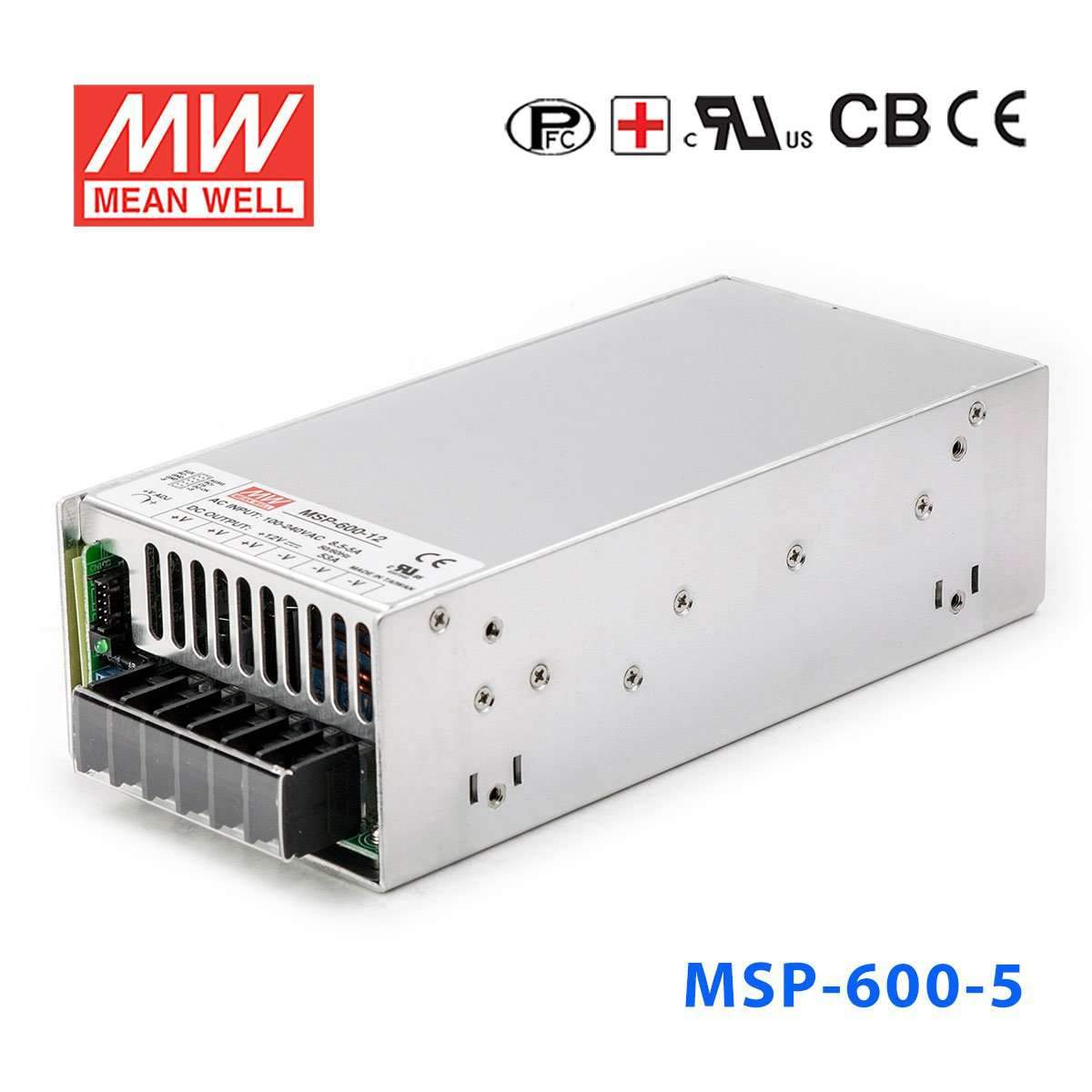

Mean Well MSP-600-5 Power Supply 600W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-600-5 Power Supply 600W 5V
The MSP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating600 Watt
-
Output Voltage5 Volt
-
Rated Current120 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
::specification::
Frequently Asked Questions
Can I use the MSP-600-5 for a 5V industrial controller or logic-heavy embedded system?
It is designed for constant-voltage 5V output and can deliver up to 120A with 600W total power. That makes it suitable for high-current 5V industrial controllers, embedded systems, or logic-focused equipment that need a strong 5V rail.
Is the MSP-600-5 appropriate for powering multiple 5V devices from one supply in an automation cabinet?
It can support larger grouped 5V loads because it provides 600W and up to 120A at constant voltage. It is best suited to centralized 5V DC applications where the combined demand stays within those published limits.
Can the MSP-600-5 support a 5V test fixture, burn-in rack, or production bench load?
Yes, this model is a fit for 5V bench, fixture, or production environments that need substantial current capacity. Its 85-264VAC input range also supports use in facilities with different AC input conditions.
When would the MSP-600-5 make more sense than a lower-power 5V model?
The 5V MSP family also includes 85W at 17A, 175W at 35A, 300W at 60A, and 450W at 90A before this 600W at 120A version. This model makes sense when a 5V load needs more current headroom than those lower-output options provide.
How does the MSP-600-5 compare with the other MSP-600 versions?
In the MSP-600 range, MSP-600-3.3 is 396W and 120A, MSP-600-5 is 600W and 120A, MSP-600-7.5 is 600W and 80A, MSP-600-12 is 636W and 53A, MSP-600-15 is 645W and 43A, MSP-600-24 is 648W and 27A, MSP-600-36 is 630W and 17.5A, and MSP-600-48 is 624W and 13A. The family keeps a similar form factor while changing output voltage, wattage, and current.
Is the MSP-600-5 suitable for outdoor or high-temperature environments?
Its operating temperature range is -40°C to +70°C, which supports use in demanding temperature conditions. The provided specs do not include an IP rating, so outdoor exposure or wet-location suitability cannot be confirmed from this product data alone.
