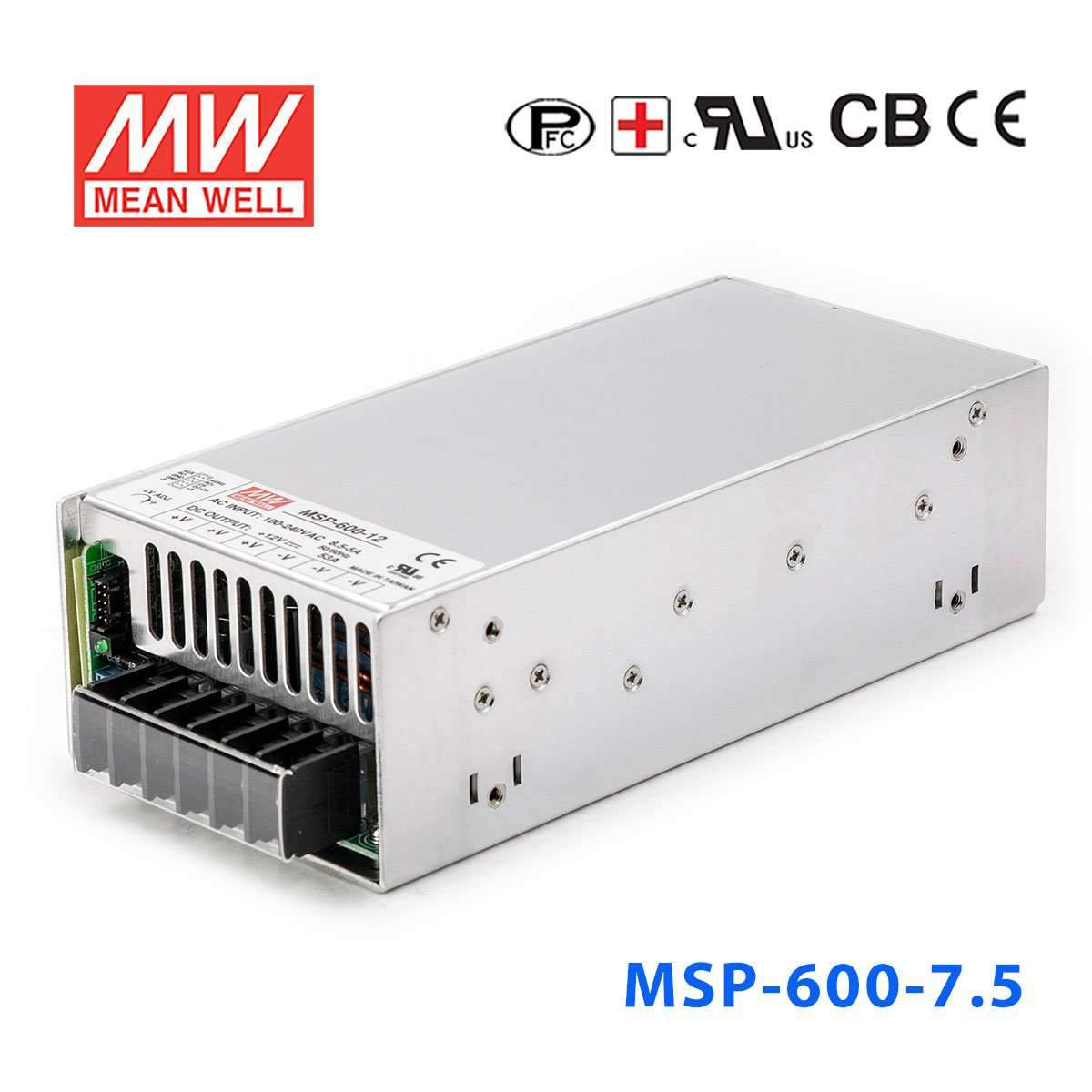

Mean Well MSP-600-7.5 Power Supply 600W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-600-7.5 Power Supply 600W 7.5V
The MSP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating600 Watt
-
Output Voltage7.5 Volt
-
Rated Current80 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.46 lb
::specification::
Frequently Asked Questions
Can I use the MSP-600-7.5 for a 7.5V industrial or embedded DC load?
Yes, if the load requires constant 7.5V DC and stays within 80A and 600W. That makes it suitable for industrial, embedded, or OEM equipment designed around a 7.5V constant-voltage power rail.
Is the MSP-600-7.5 a good fit for high-current 7.5V electronics or control assemblies?
This model is intended for higher-current 7.5V applications because it can provide up to 80A at 600W. It is a practical option when a 7.5V assembly needs more capacity than smaller supplies in the same voltage class.
Can the MSP-600-7.5 be used for a 7.5V production fixture or validation bench?
It can, as long as the fixture or bench load is a constant-voltage 7.5V application within the 600W and 80A rating. The 85-264VAC input range is also useful in lab and factory settings where available AC input may vary.
When should I choose the MSP-600-7.5 over another 7.5V MSP model?
The series offers 7.5V options at 101.3W and 13.5A, 200.3W and 26.7A, 300W and 40A, 450W and 60A, and this 600W and 80A version. The MSP-600-7.5 is the better fit when a 7.5V system needs the highest current capacity available in the listed MSP 7.5V family.
How does the MSP-600-7.5 compare with the rest of the MSP-600 family?
The MSP-600 models are MSP-600-3.3 at 396W and 120A, MSP-600-5 at 600W and 120A, MSP-600-7.5 at 600W and 80A, MSP-600-12 at 636W and 53A, MSP-600-15 at 645W and 43A, MSP-600-24 at 648W and 27A, MSP-600-36 at 630W and 17.5A, and MSP-600-48 at 624W and 13A. The main selection difference is the output voltage and the matching current rating.
Can the MSP-600-7.5 be used in cold, hot, or outdoor environments?
The published operating temperature range is -40°C to +70°C, so it is specified for wide temperature conditions. No IP rating appears in the provided specs, so exposed outdoor use should not be assumed without an enclosure or additional environmental protection.
