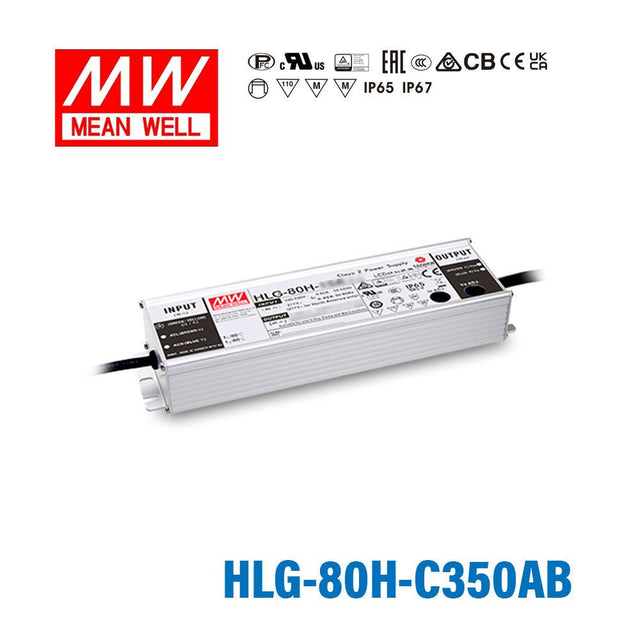

Mean Well HLG-80H-C350AB Power Supply 89.95W 350mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-C350AB Power Supply 89.95W 350mA - Adjustable and...
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating89.95 Watt
-
Output Voltage257 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-C350AB for dimmable LED signage with long series strings?
Yes. The HLG-80H-C350AB provides 350mA constant current across a CC voltage range of 128-257V, which supports long series strings of LEDs for channel letters and commercial signs. The AB variant includes both output adjustment and 1-10V/PWM dimming, allowing you to control brightness remotely or on a schedule.
Is the HLG-80H-C350AB suitable for dimmable architectural cove lighting?
Yes. With 350mA constant current and a CC range of 128-257V at up to 89.95W, it can drive lengthy series LED strings used in cove and accent lighting. The built-in dimming input supports scene-setting and daylight harvesting when paired with a compatible 1-10V or PWM controller.
Can the HLG-80H-C350AB drive high-voltage COB LED downlights with brightness adjustment?
Yes. This driver delivers 350mA constant current at up to 89.95W across 128-257V, making it compatible with high-voltage COB downlight modules. The potentiometer lets you set the baseline current, while the dimming input allows dynamic brightness control via 1-10V, PWM, or resistance signals.
What dimming methods does the HLG-80H-C350AB support?
The HLG-80H-C350AB supports 3-in-1 dimming through 1-10V analog, PWM signal, or resistance. It also has a built-in potentiometer for adjusting the output current. This combination gives you both fixed output trimming and dynamic dimming from an external controller.
How many LEDs can the HLG-80H-C350AB drive in a series string?
That depends on each LED's forward voltage. The driver operates at 350mA constant current with a CC voltage range of 128-257V and delivers up to 89.95W. Sum the forward voltages of your LEDs in series and ensure the total is between 128V and 257V.
Can the HLG-80H-C350AB be used in an outdoor covered installation such as a parking structure?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered outdoor areas like parking garages, canopies, and building soffits. The -40°C to +80°C operating range covers seasonal temperature extremes in most climates.
