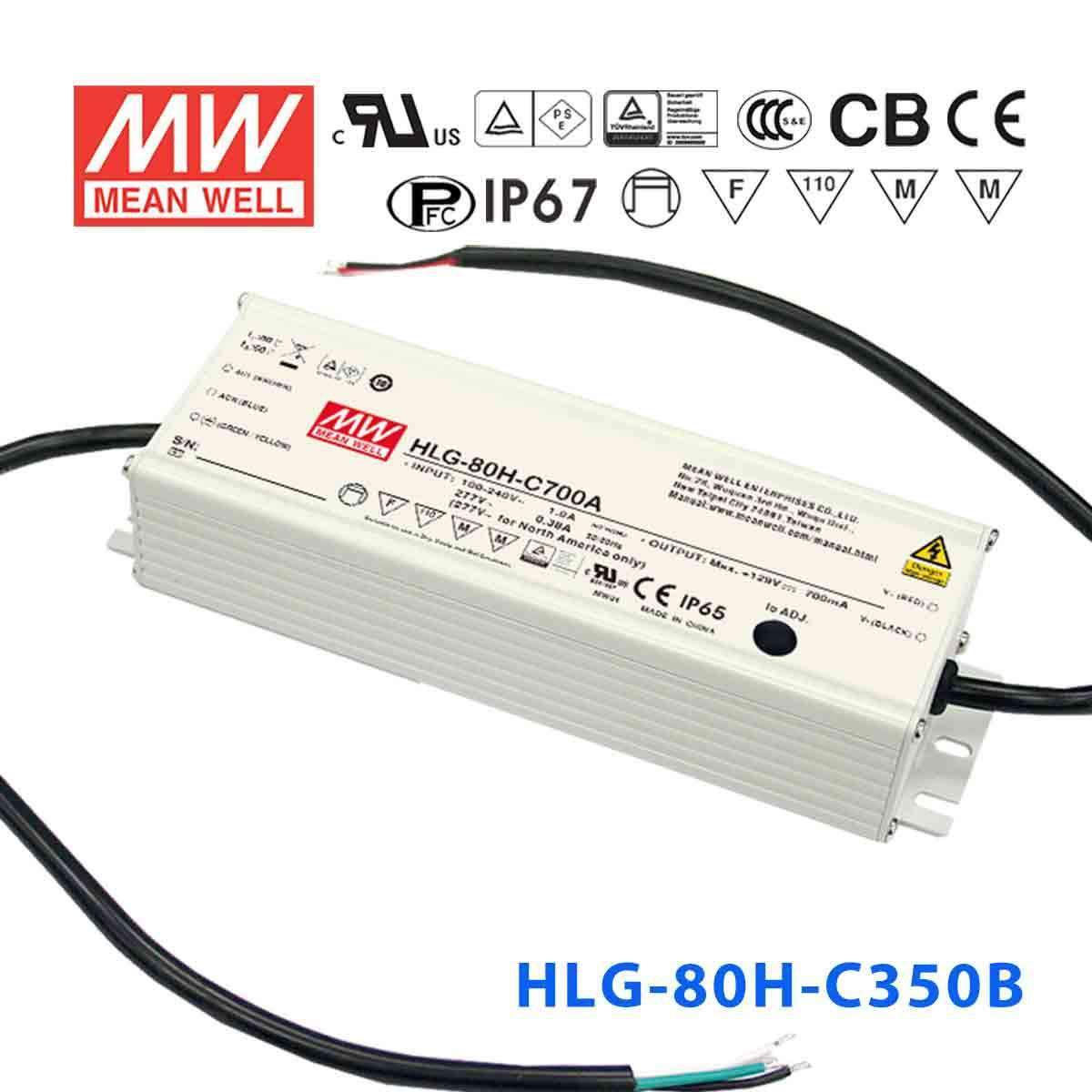

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLG-80H-C350B Power Supply 89.95W 350mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-C350B Power Supply 89.95W 350mA - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant current output with high output voltage>60VDC |
| Built-in active PFC function |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 94% |
| Cooling by free air convection |
| Output current adjustable through output cable or internal potentiometer |
| IP67 / IP65 design for indoor or outdoor installations |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| 2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127VDC~431VDC |
| AC inrush current (typ.) | Cold start, 60A at 230VAC |
| Current adjustment range | 60%~100% |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temp. protection | 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 16AWGx3C(30cm) |
| Connection Output | A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm) |
| Dimension (LxWxH) (mm) | 195.6x 61.5x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating89.95 Watt
-
Output Voltage257 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-80H-C350B to power dimmable LED signage with high-voltage LED strings?
Yes. The HLG-80H-C350B delivers 350mA constant current across a CC voltage range of 167-257V, supporting long series strings for commercial signage. The B suffix provides a dimming input for 1-10V, PWM, or resistance control, letting you adjust sign brightness based on time of day or ambient conditions.
Is the HLG-80H-C350B suitable for driving series-connected LED modules in architectural lighting?
Yes. At 350mA and up to 89.95W, this driver can power linear LED arrays for cove, facade, or accent lighting where the total string voltage falls between 167V and 257V. The dimming input allows smooth brightness transitions for scene control.
Can the HLG-80H-C350B power high-voltage COB LED downlights with dimming?
Yes. This driver provides 350mA constant current within a 167-257V CC range, which suits high-voltage COB downlight modules. The built-in dimming interface accepts 1-10V, PWM, or resistance signals for adjusting light output without additional hardware.
How does the CC voltage range of the HLG-80H-C350B compare to the C350A and C350AB?
The HLG-80H-C350B has a CC voltage range of 167-257V, which is narrower at the low end than the C350A and C350AB variants that both start at 128V. All three models share the same 89.95W maximum power and 350mA constant current output. Choose the B model when you need dimming and your LED string voltage will remain above 167V.
How many LEDs can the HLG-80H-C350B support in series?
The exact count depends on each LED's forward voltage. The HLG-80H-C350B runs at 350mA constant current with a CC voltage range of 167-257V. Add up the forward voltages of your LEDs in series and confirm the total stays within that range. Maximum power output is 89.95W.
Can the HLG-80H-C350B withstand exposure to dust and water spray?
Yes. The HLG-80H-C350B has an IP65 water-resistant rating, which means it is fully protected against dust ingress and can withstand low-pressure water jets from any direction. It operates from -40°C to +80°C, making it suitable for sheltered outdoor locations and harsh indoor environments.
