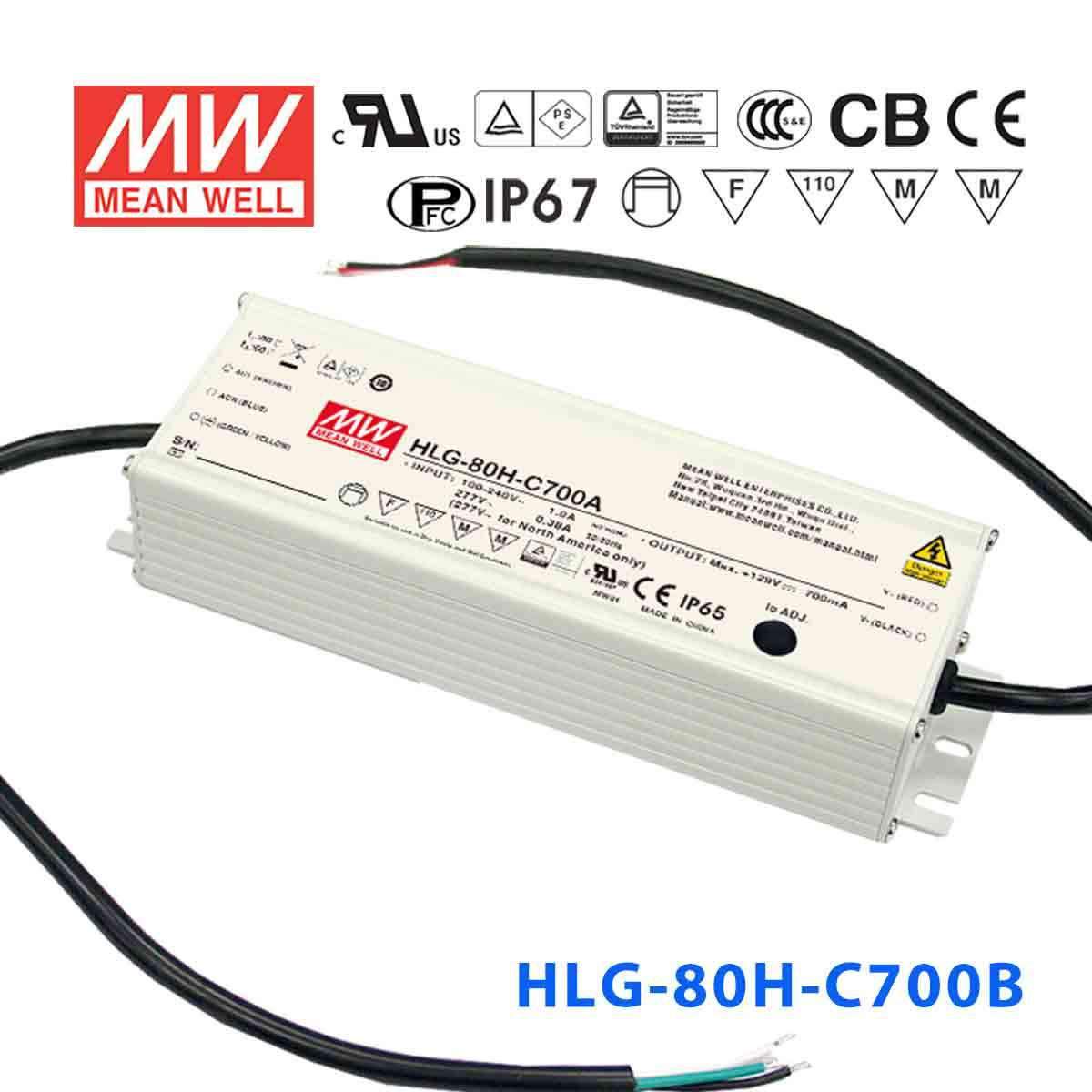

Mean Well HLG-80H-C700B Power Supply 90.3W 700mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-C700B Power Supply 90.3W 700mA - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant current output with high output voltage>60VDC |
| Built-in active PFC function |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 94% |
| Cooling by free air convection |
| Output current adjustable through output cable or internal potentiometer |
| IP67 / IP65 design for indoor or outdoor installations |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| 2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127VDC~431VDC |
| AC inrush current (typ.) | Cold start, 60A at 230VAC |
| Current adjustment range | 60%~100% |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temp. protection | 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 16AWGx3C(30cm) |
| Connection Output | A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm) |
| Dimension (LxWxH) (mm) | 195.6x 61.5x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating90.3 Watt
-
Output Voltage129 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HLG-80H-C700B for LED downlights?
Yes, if the LED downlight system requires a constant current driver at 700mA and the total LED load stays within the 84-129V constant current range. This driver delivers up to 90.3W from a 90-305VAC input. It is a constant current LED driver, so it is not the right choice for fixtures that require a constant voltage supply.
Is the HLG-80H-C700B suitable for LED signage modules?
It can be suitable for signage modules when the LED load is designed for 700mA constant current operation and falls within the 84-129V output range. The IP65 water-resistant rating also makes it a fit for signage exposed to dust or moisture. It should not be used as a constant voltage power supply for modules that expect a fixed voltage output.
Can this driver power a small LED array?
Yes, for a small LED array that is built for 700mA constant current and has a combined forward voltage within 84-129V. The driver provides up to 90.3W and has a maximum output voltage of 129V. The exact number of LEDs depends on the forward voltage of each LED, not on a fixed count.
Can I use this LED driver in indoor or outdoor lighting projects?
This model is designed for demanding environments with an IP65 water-resistant enclosure and an operating temperature range of -40°C to +80°C. That makes it suitable for indoor installations and for outdoor applications where a water-resistant driver is appropriate. Its aluminium casing and listed certifications also support use in commercial and industrial lighting systems.
How do I know if my LED load is compatible with the HLG-80H-C700B?
Your LED load must require 700mA constant current and operate within the driver's 84-129V constant current range. The exact number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this model. If your product needs constant voltage instead, this driver is not the correct match.
How does the HLG-80H-C700B compare with other HLG 80H constant current models?
Within the HLG-80H constant current range, the HLG-80H-C350B is rated at 89.95W, 257V, and 350A, while the HLG-80H-C700B is rated at 90.3W, 129V, and 700A. The HLG-80H-C700AB shares the same 90.3W, 129V, and 700A rating as this model. The main difference across these variants is the output current and corresponding output voltage.
Other HLG-80H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-80H-C700AB Power Supply 90.3W 700mA - Adjustable and Dimmable | 90.3W | 129V | 0.7A | IP65 | $43.74 | View |
| Mean Well HLG-80H-C700A Power Supply 90.3W 700mA - Adjustable | 90.3W | 129V | 0.7A | IP65 | $39.58 | View |
| Mean Well HLG-80H-C350B Power Supply 89.95W 350mA - Dimmable | 89.95W | 257V | 0.35A | IP65 | $40.79 | View |
| Mean Well HLG-80H-C350AB Power Supply 89.95W 350mA - Adjustable and Dimmable | 89.95W | 257V | 0.35A | IP65 | $43.74 | View |
| Mean Well HLG-80H-C350A Power Supply 89.95W 350mA - Adjustable | 89.95W | 257V | 0.35A | IP65 | $35.66 | View |
