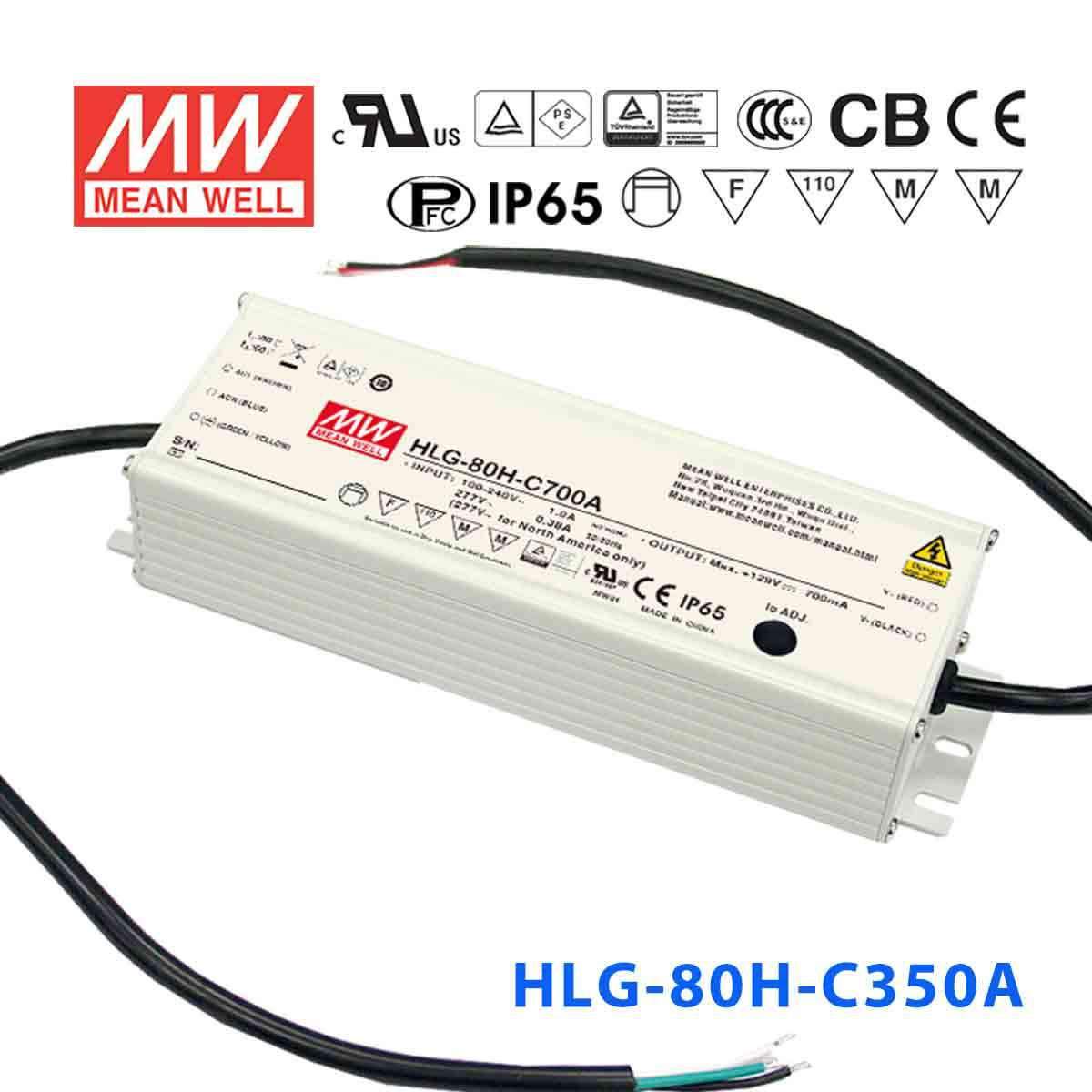

Mean Well HLG-80H-C350A Power Supply 89.95W 350mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-C350A Power Supply 89.95W 350mA - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant current output with high output voltage>60VDC |
| Built-in active PFC function |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 94% |
| Cooling by free air convection |
| Output current adjustable through output cable or internal potentiometer |
| IP67 / IP65 design for indoor or outdoor installations |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| 2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127VDC~431VDC |
| AC inrush current (typ.) | Cold start, 60A at 230VAC |
| Current adjustment range | 60%~100% |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temp. protection | 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 16AWGx3C(30cm) |
| Connection Output | A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm) |
| Dimension (LxWxH) (mm) | 195.6x 61.5x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating89.95 Watt
-
Output Voltage257 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-80H-C350A to power high-voltage LED string arrays for signage?
Yes. The HLG-80H-C350A delivers 350mA constant current with a CC voltage range of 128-257V, making it well suited for long series strings of LEDs used in channel letters or large sign modules. The high output voltage range allows you to connect many LEDs in series, and the adjustable output lets you fine-tune the current for optimal brightness.
Is the HLG-80H-C350A suitable for driving LED downlights with high forward voltage?
Yes. This driver provides 350mA constant current at up to 89.95W across a 128-257V CC range. It works well with high-voltage COB LED downlight modules or series-connected downlight strings whose total forward voltage falls within that window. The adjustable output helps match the driver to your exact fixture requirements.
Can the HLG-80H-C350A power a series string of LEDs for architectural lighting?
Yes. With 350mA constant current and a CC voltage range of 128-257V, this driver can handle lengthy series LED strings used in cove lighting, facade illumination, or linear architectural fixtures. The IP65 rating allows installation in sheltered outdoor or damp indoor locations.
How many LEDs can the HLG-80H-C350A drive in series?
The number of LEDs depends on each LED's forward voltage. The HLG-80H-C350A operates at 350mA constant current with a CC voltage range of 128-257V and a maximum power of 89.95W. Add the forward voltages of your LEDs in series and verify the total falls between 128V and 257V.
Can the HLG-80H-C350A operate in extreme cold or hot environments?
Yes. It is rated for operating temperatures from -40°C to +80°C, so it handles freezing warehouses, outdoor canopies in winter, and warm enclosed ceiling cavities. The IP65 rating and aluminium casing provide additional protection against moisture and dust.
What are the differences between the HLG-80H-C350A, C350AB, and C350B?
All three share the same 89.95W, 350mA constant current output and IP65 enclosure. The C350A (this model) has an adjustable output via potentiometer but no external dimming input. The C350AB adds both potentiometer adjustment and 1-10V/PWM dimming. The C350B includes the dimming input only. Note the C350B has a narrower CC voltage range of 167-257V compared to 128-257V for the A and AB variants.
