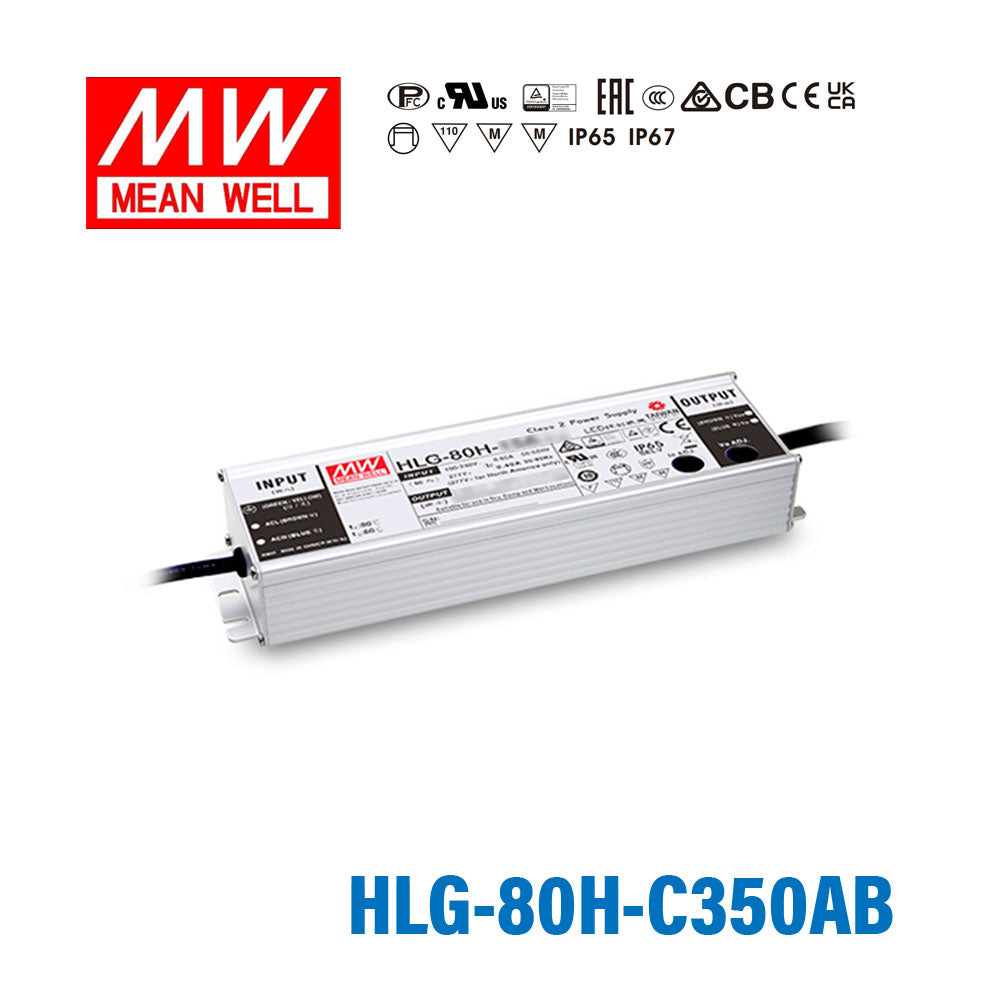

Mean Well HLG-80H-C350AB Power Supply 89.95W 350mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-C350AB Power Supply 89.95W 350mA - Adjustable and...
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant current output with high output voltage>60VDC |
| Built-in active PFC function |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 94% |
| Cooling by free air convection |
| Output current adjustable through output cable or internal potentiometer |
| IP67 / IP65 design for indoor or outdoor installations |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| 2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127VDC~431VDC |
| AC inrush current (typ.) | Cold start, 60A at 230VAC |
| Current adjustment range | 60%~100% |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temp. protection | 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 16AWGx3C(30cm) |
| Connection Output | A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm) |
| Dimension (LxWxH) (mm) | 195.6x 61.5x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating89.95 Watt
-
Output Voltage257 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-80H-C350AB for dimmable LED signage with long series strings?
Yes. The HLG-80H-C350AB provides 350mA constant current across a CC voltage range of 128-257V, which supports long series strings of LEDs for channel letters and commercial signs. The AB variant includes both output adjustment and 1-10V/PWM dimming, allowing you to control brightness remotely or on a schedule.
Is the HLG-80H-C350AB suitable for dimmable architectural cove lighting?
Yes. With 350mA constant current and a CC range of 128-257V at up to 89.95W, it can drive lengthy series LED strings used in cove and accent lighting. The built-in dimming input supports scene-setting and daylight harvesting when paired with a compatible 1-10V or PWM controller.
Can the HLG-80H-C350AB drive high-voltage COB LED downlights with brightness adjustment?
Yes. This driver delivers 350mA constant current at up to 89.95W across 128-257V, making it compatible with high-voltage COB downlight modules. The potentiometer lets you set the baseline current, while the dimming input allows dynamic brightness control via 1-10V, PWM, or resistance signals.
What dimming methods does the HLG-80H-C350AB support?
The HLG-80H-C350AB supports 3-in-1 dimming through 1-10V analog, PWM signal, or resistance. It also has a built-in potentiometer for adjusting the output current. This combination gives you both fixed output trimming and dynamic dimming from an external controller.
How many LEDs can the HLG-80H-C350AB drive in a series string?
That depends on each LED's forward voltage. The driver operates at 350mA constant current with a CC voltage range of 128-257V and delivers up to 89.95W. Sum the forward voltages of your LEDs in series and ensure the total is between 128V and 257V.
Can the HLG-80H-C350AB be used in an outdoor covered installation such as a parking structure?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered outdoor areas like parking garages, canopies, and building soffits. The -40°C to +80°C operating range covers seasonal temperature extremes in most climates.
