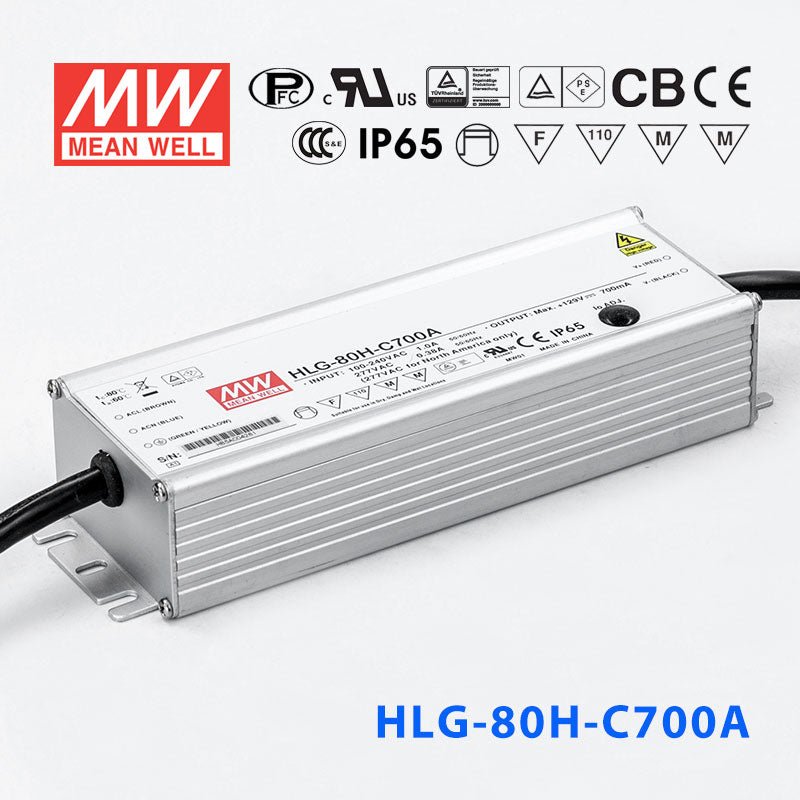

Mean Well HLG-80H-C700AB Power Supply 90.3W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-C700AB Power Supply 90.3W 700mA - Adjustable and ...
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating90.3 Watt
-
Output Voltage129 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-C700AB to power dimmable LED downlights?
Yes. The HLG-80H-C700AB provides 700mA constant current at up to 90.3W with a CC voltage range of 64-129V, making it a strong fit for LED downlights within that voltage window. The AB variant includes both a potentiometer for output trimming and a dimming input, so you can adjust brightness from an external 1-10V or PWM controller.
Is the HLG-80H-C700AB suitable for dimmable LED signage?
Yes. At 700mA constant current and 90.3W, it can drive LED signage modules whose series voltage falls between 64V and 129V. The dimming input lets you schedule brightness levels for day and night operation, and the potentiometer provides a fixed trim for the maximum output.
Can the HLG-80H-C700AB drive an LED array with variable brightness control?
Yes. This driver delivers 700mA constant current across a 64-129V range at up to 90.3W. The AB suffix provides both adjustable output via potentiometer and 3-in-1 dimming (1-10V, PWM, resistance), giving you full control over light output for applications like display lighting or adjustable work lights.
What dimming options does the HLG-80H-C700AB offer compared to the C700A and C700B?
The HLG-80H-C700AB combines a built-in potentiometer for output current adjustment with a 3-in-1 dimming input (1-10V, PWM, resistance). The C700A has only the potentiometer without dimming. The C700B has only the dimming input without the potentiometer. All three share the same 90.3W, 700mA, 64-129V output and IP65 rating.
How many LEDs can the HLG-80H-C700AB support in a series string?
The number of LEDs depends on each LED's forward voltage. This driver operates at 700mA constant current with a CC range of 64-129V and maximum power of 90.3W. configure your LEDs in series and ensure the total forward voltage stays within the 64-129V range.
Can the HLG-80H-C700AB be used outdoors in a sheltered location?
Yes. The IP65 rating protects against dust ingress and low-pressure water jets, making it appropriate for covered outdoor areas like parking canopies, building overhangs, and covered walkways. It operates reliably from -40°C to +80°C across seasonal temperature extremes.
