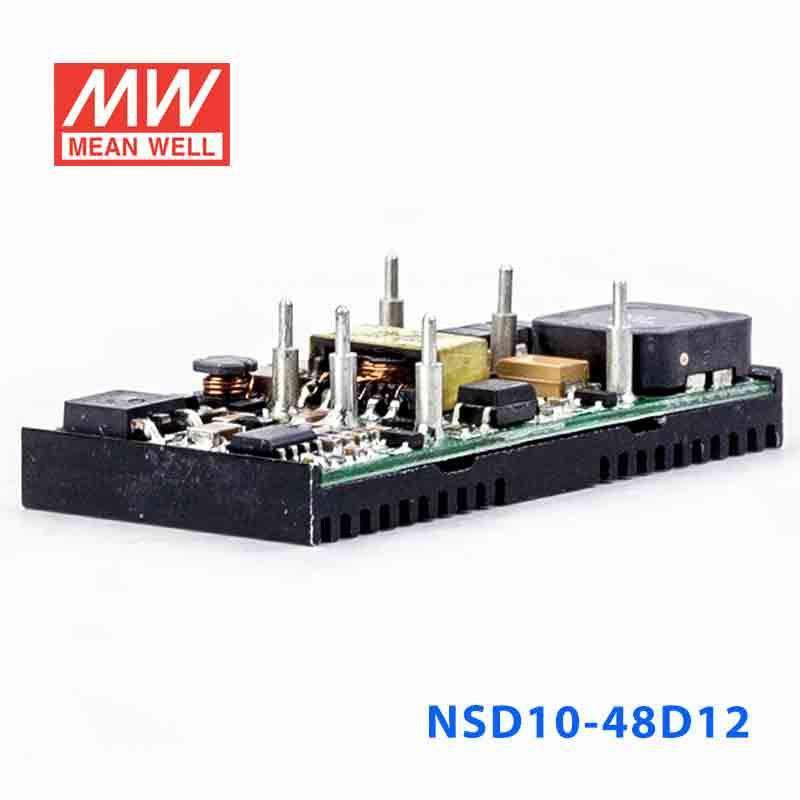

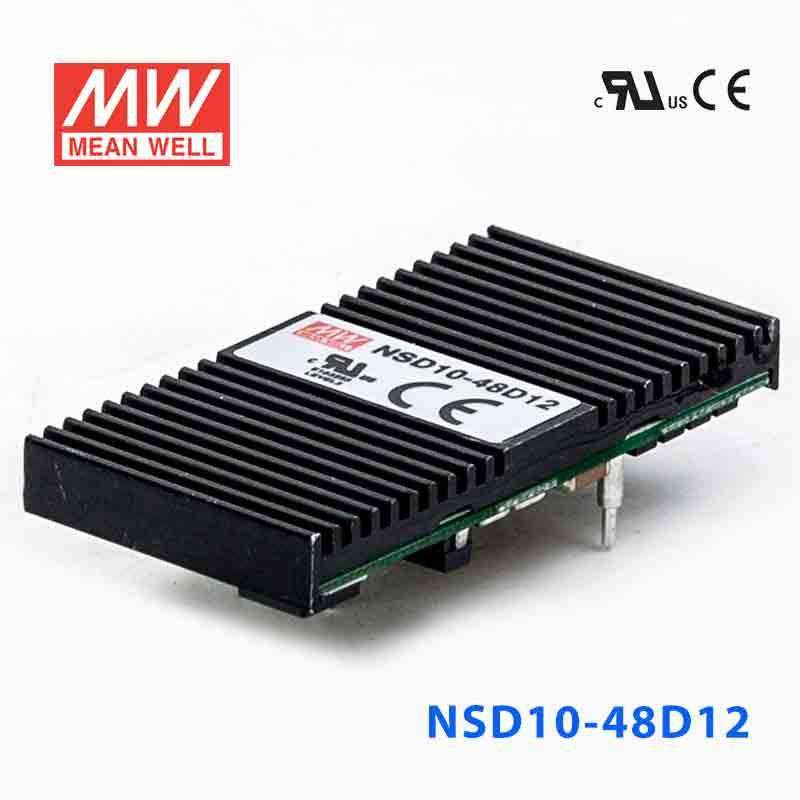

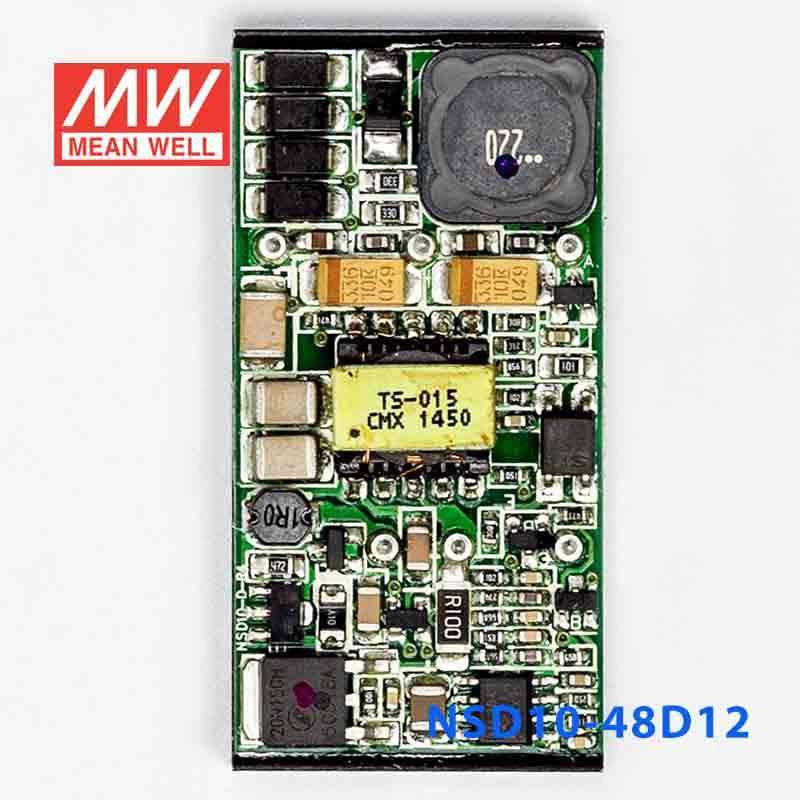

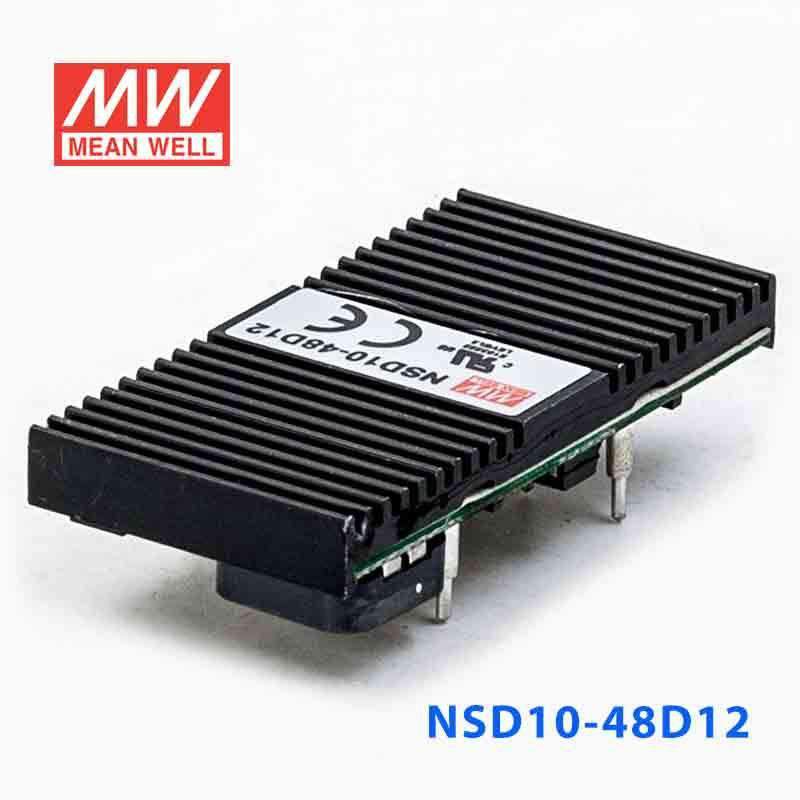

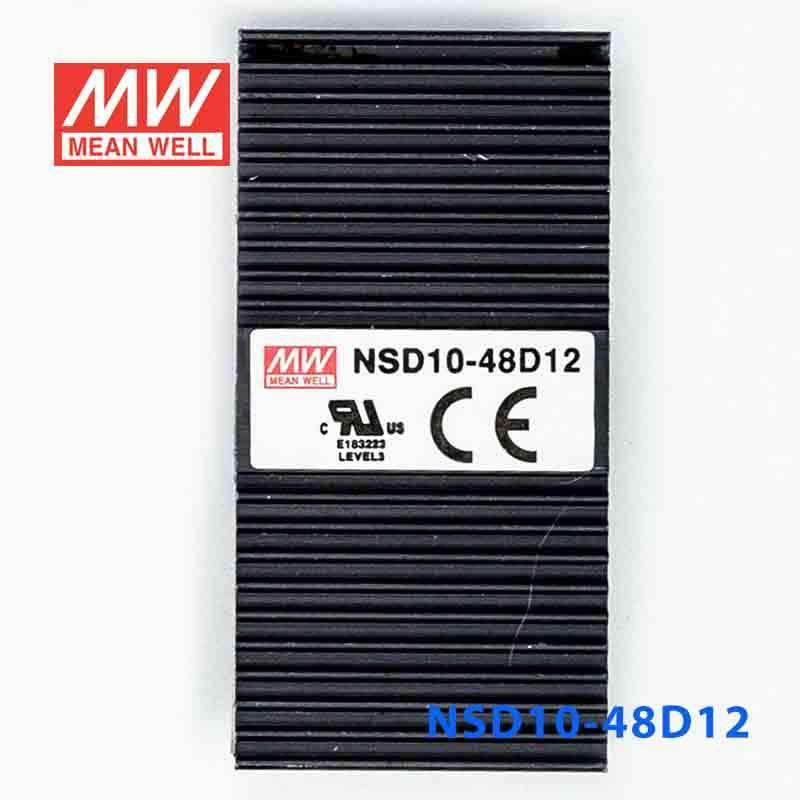

Mean Well NSD10-48D12 DC-DC Converter - 10.8W - 22~72V in ±12V out ...
The NSD10 is a 10W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating10.8 Watt
-
Output Voltage12 Volt
-
Rated Current0.42 Ampere
-
Input Voltage22V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.39 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the NSD10-48D12 for bipolar analog or signal-conditioning circuits in industrial equipment?
Yes, this model provides constant-voltage +/-12V output with a 10.8W rating. It is suited to lower-power bipolar analog, signal-conditioning, and interface circuits that need +/-12V and stay within the listed 10.8W output rating.
Is the NSD10-48D12 suitable for control and monitoring boards that need +/-12V rails?
It can be used for control, monitoring, and instrumentation boards that require +/-12V output. The converter is intended for compact loads within its 10.8W capacity rather than higher-power +/-12V subsystems.
Can this converter be used in equipment with a 22~72V input bus and +/-12V electronics?
Yes, the specified input range is 22~72V and the output is constant-voltage +/-12V. That makes it relevant for systems built around a higher-voltage input bus feeding lower-power bipolar electronics.
Does the NSD10-48D12 work well in compact industrial assemblies?
Its dimensions are 50.8 x 25.4 x 10.0 mm and its weight is 0.02 kg, so it is small enough for dense layouts. That is useful when a compact +/-12V converter is needed inside a control enclosure or embedded assembly.
Is the NSD10-48D12 meant for outdoor use or temperature-demanding indoor equipment?
The operating temperature range is -25C to +70C, so it is specified for a broad industrial indoor temperature range. No IP rating is listed, so the provided specs do not define it as outdoor rated or weather-sealed.
How does the NSD10-48D12 compare with other NSD10 converter options?
The 9.8~36V input family includes NSD10-12D12 at 10.8W, 12V, 420A; NSD10-12D15 at 9.9W, 15V, 333A; NSD10-12D5 at 10W, 5V, 1A; NSD10-12S12 at 9.96W, 12V, 830A; NSD10-12S15 at 10.05W, 15V, 670A; NSD10-12S3 at 8.25W, 3.3V, 2.5A; NSD10-12S5 at 10W, 5V, 2A; and NSD10-12S9 at 9.9W, 9V, 1.1A. In the 22~72V input branch with this model, siblings are NSD10-48D15 at 9.9W, 15V, 333A; NSD10-48D5 at 10W, 5V, 1A; NSD10-48S12 at 9.96W, 12V, 830A; NSD10-48S15 at 10.05W, 15V, 670A; NSD10-48S3 at 8.25W, 3.3V, 2.5A; NSD10-48S5 at 10W, 5V, 2A; and NSD10-48S9 at 9.9W, 9V, 1.1A.
