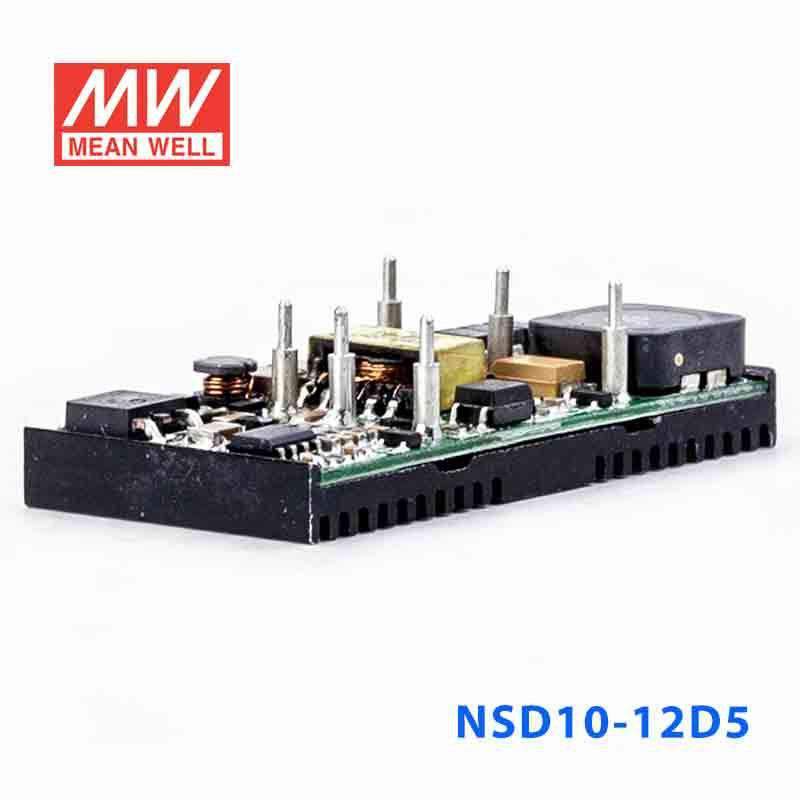

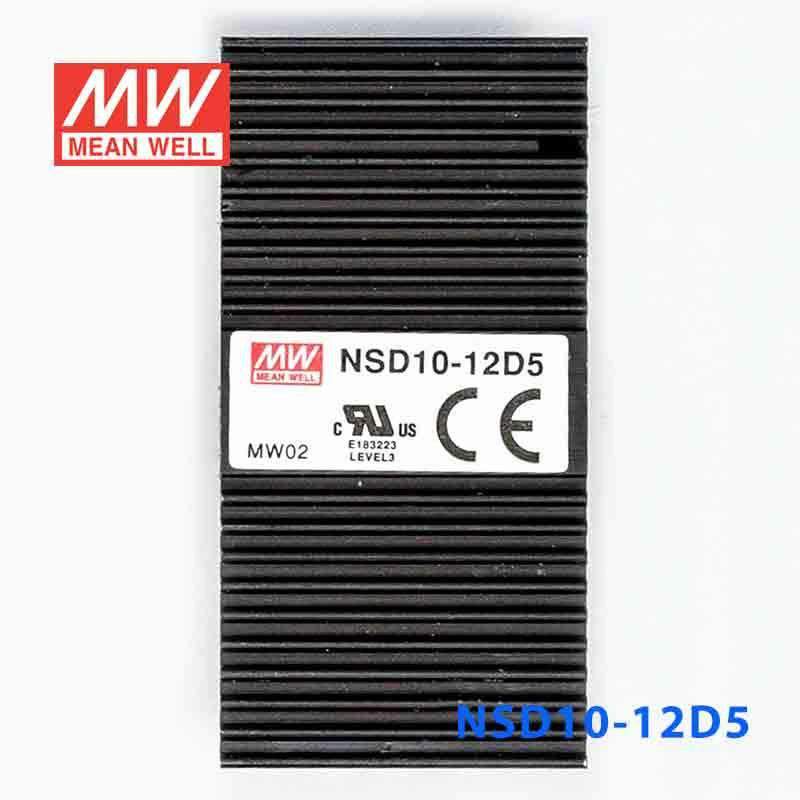

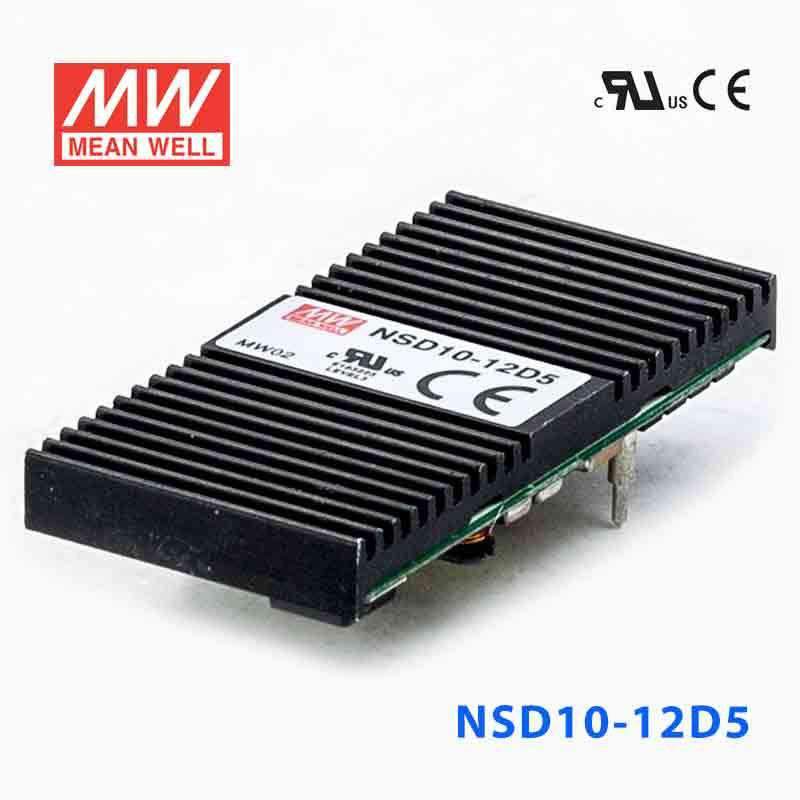

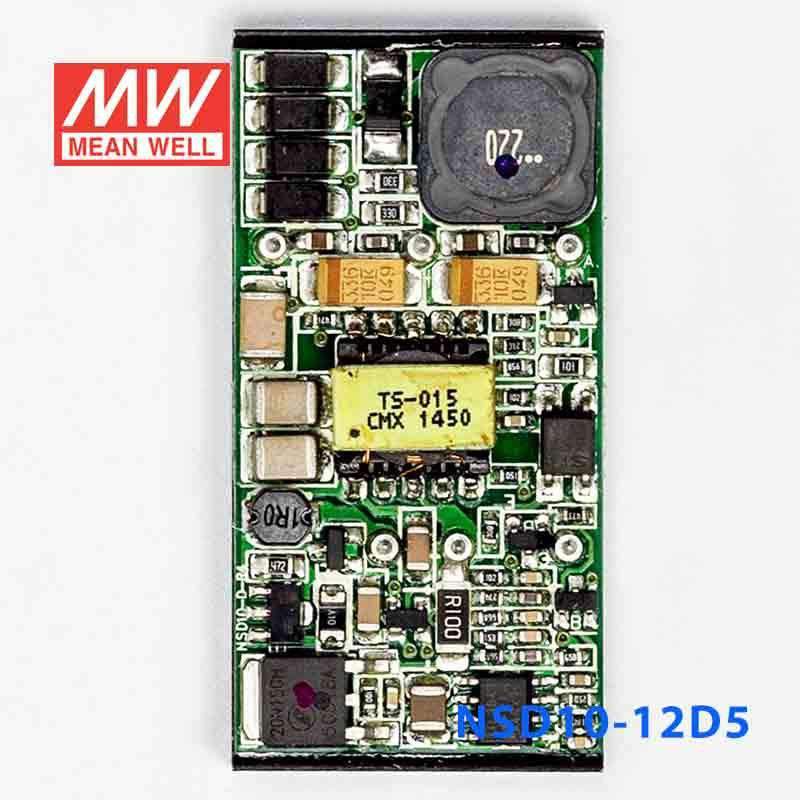

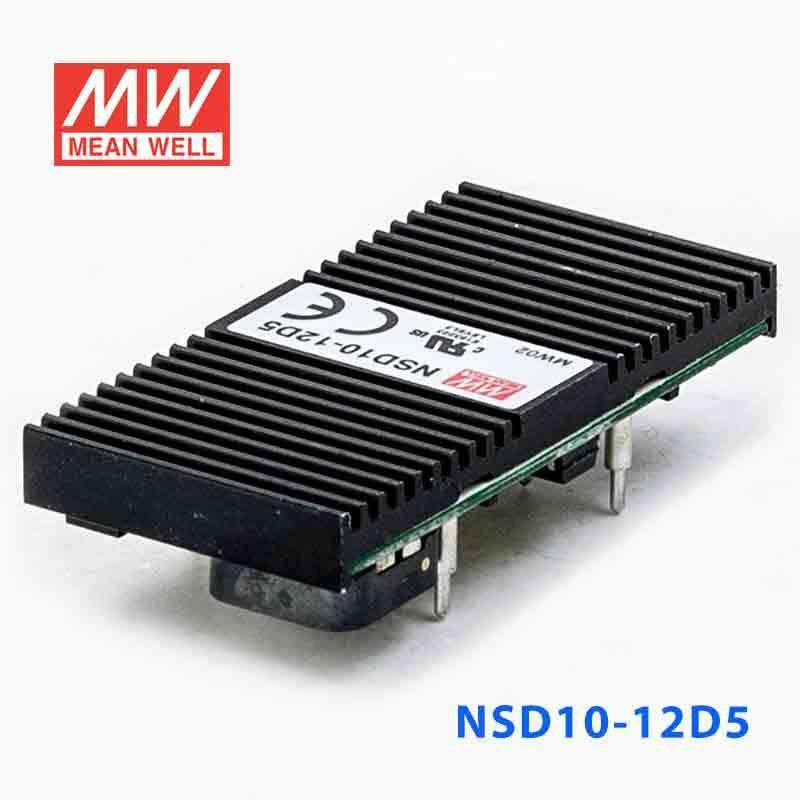

Mean Well NSD10-12D5 DC-DC Converter - 10W - 9.8~36V in ±5V out 1A
Overview
NSD10-12D5 is the 5V -5V output model of this series: rated current 1A 1A, rated power 10W, typical efficiency 76%.
Features
- Wide 4:1 DC input range
- Protections: Short circuit / Overload / Over voltage
- 1000VDC I/O isolation
- Built-in EMI filter
- Cooling by free air convection
- Built-in remote ON-OFF control
- 100% full load burn-in test
- Lost cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V -5V
- RATED CURRENT
- 1A 1A
- CURRENT RANGE
- 0.05 ~ 1A 0.05 ~ 1A
- RATED POWER
- 10W
- CAPACITIVE LOAD (max.)
- ±1000uF
- RIPPLE & NOISE (max.)Note.2
- 75mVp-p(10% ~ 100% load)
- VOLTAGE TOLERANCENote.3
- ±4.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±3.0%
- SETUP TIME
- 100ms/RATED DC INPUT at full Load
INPUT
- RATED DC INPUT
- 12VDC
- VOLTAGE RANGE
- 9.8 ~ 36VDC
- EFFICIENCY (Typ.)
- 76%
- DC CURRENT
- 1.4A/12VDC
- SHUTDOWN IDLE CURRENT
- 20mA/12VDC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE(CLAMP)
- 5.75 ~ 7.5V -5.75 ~ -7.5V
- SHORT CIRCUITNote.4
- Recovers automatically after fault condition is removed
FUNCTION
- ON/OFF CONTROL
- Logic "1" OPEN: ON logic "0" GND: OFF
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- ISOLATION VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 12288.5K hrs min. Telcordia SR-332 (Bellcore) ; 1878.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
- PACKING
- 0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Short circuit not more than 60 seconds.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
- 7. EMC filter suggestion:
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the NSD10-12D5 for low-power ±5V logic and analog support circuits?
Yes, this model is suited to electronics that need constant-voltage ±5V output from a 9.8~36VDC input range. Its 10W rating supports lower-power logic support, interface, and analog circuitry rather than larger ±5V systems.
Is the NSD10-12D5 suitable for embedded controller boards that need dual ±5V rails?
It can fit embedded boards or interface modules that specifically require ±5V rails and remain within the 10W power limit. The compact 50.8 × 25.4 × 10.0 mm package also helps in tighter equipment layouts.
Can this converter be used for industrial signal interface electronics that run on ±5V?
Yes, if the design calls for constant-voltage ±5V output and total consumption stays within 10W. It is better matched to smaller control and signal-processing sections than to higher-demand ±5V assemblies.
How does the NSD10-12D5 compare with other NSD10 models in the same 12-input group?
Within the 9.8~36VDC input NSD10-D models, NSD10-12D5 is 10W, ±5V, 1A per output; NSD10-12D12 is 10.08W, ±12V, 0.42A; and NSD10-12D15 is 9.9W, ±15V, 0.33A. The 22~72VDC NSD10-48D5, NSD10-48D12 and NSD10-48D15 offer the same outputs from a 48VDC-class input. The main distinction is that this unit provides ±5V at up to 1A per output, while its siblings differ by output voltage and current.
Is the NSD10-12D5 meant for outdoor environments?
The listed operating temperature range is -25°C to +70°C, which covers a broad range of indoor equipment conditions. The provided specifications do not include an IP rating, so outdoor suitability is not confirmed from this product data alone.
