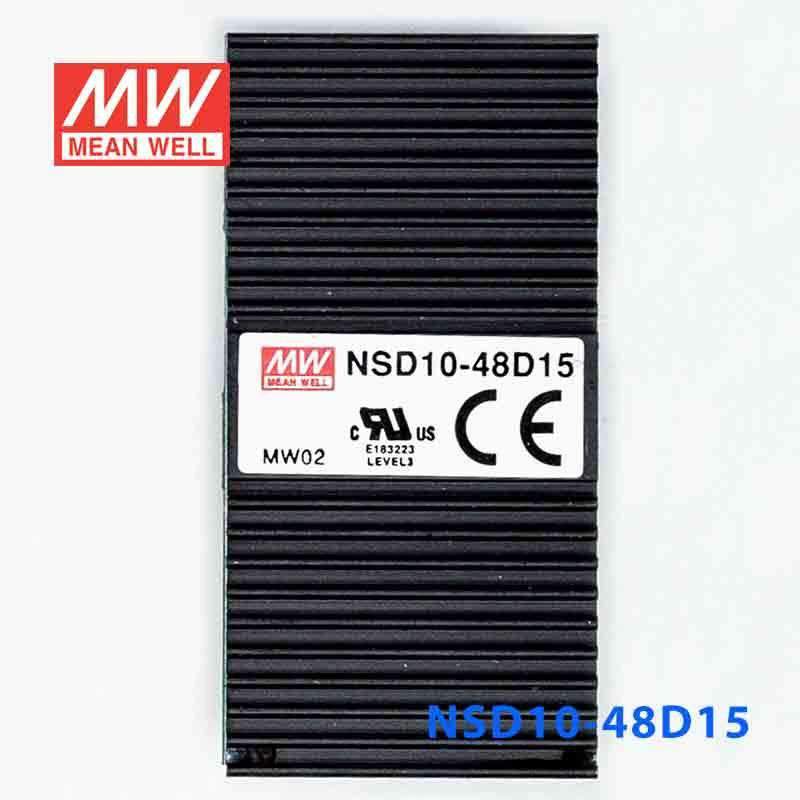

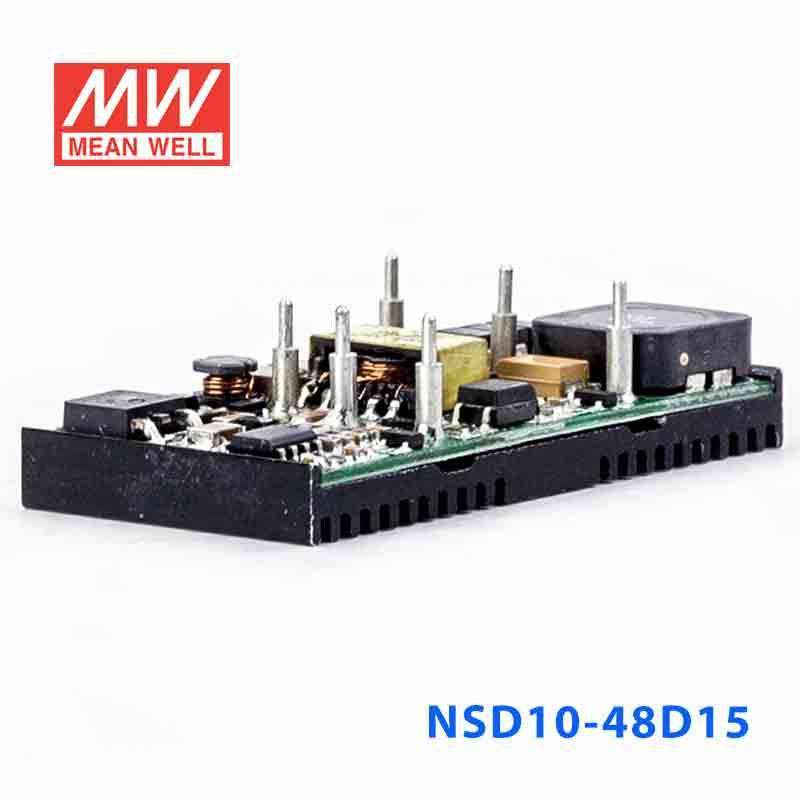

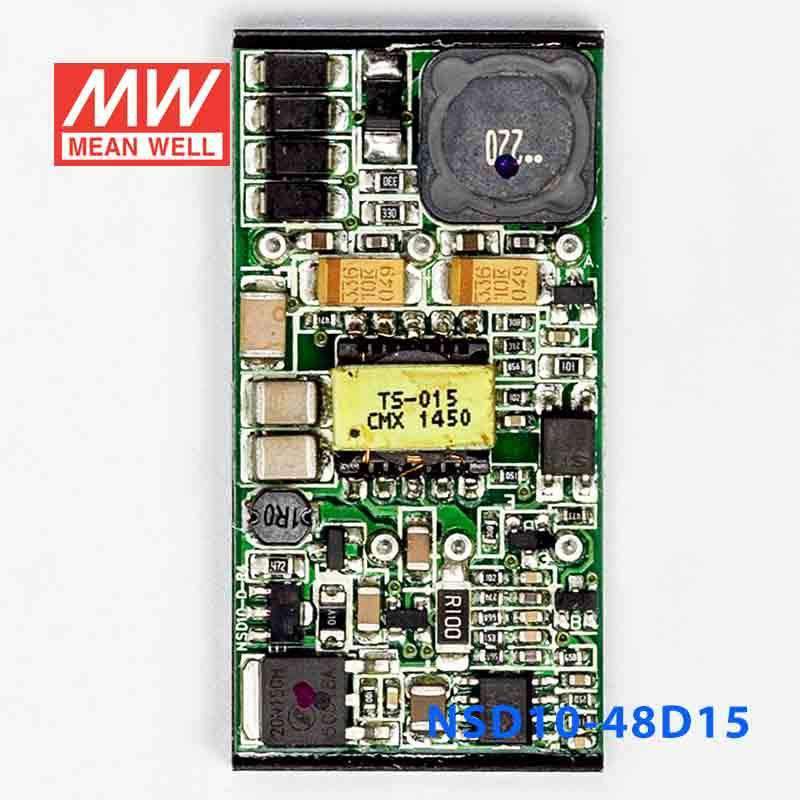

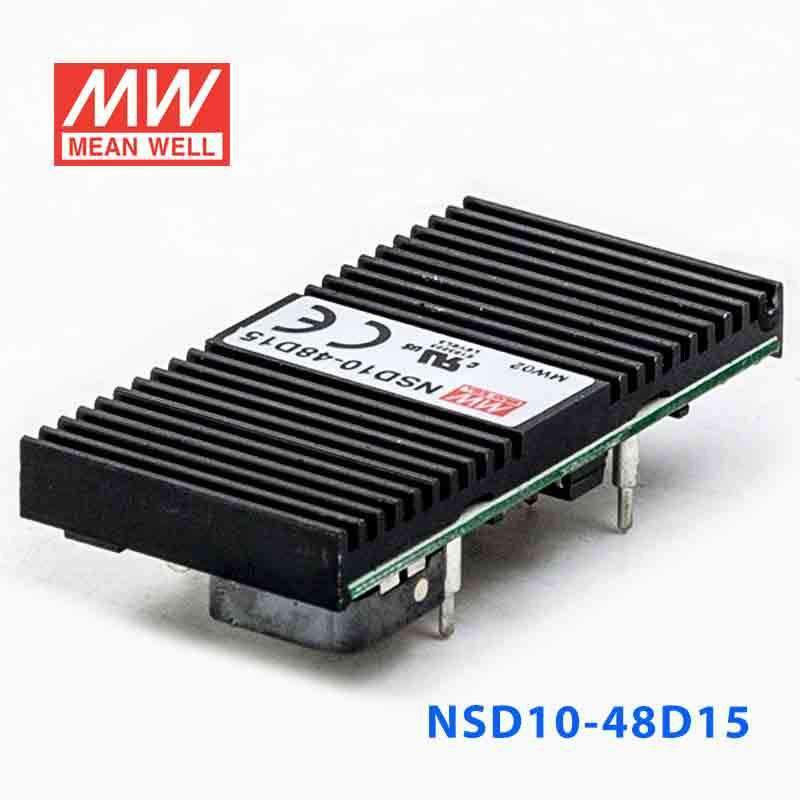

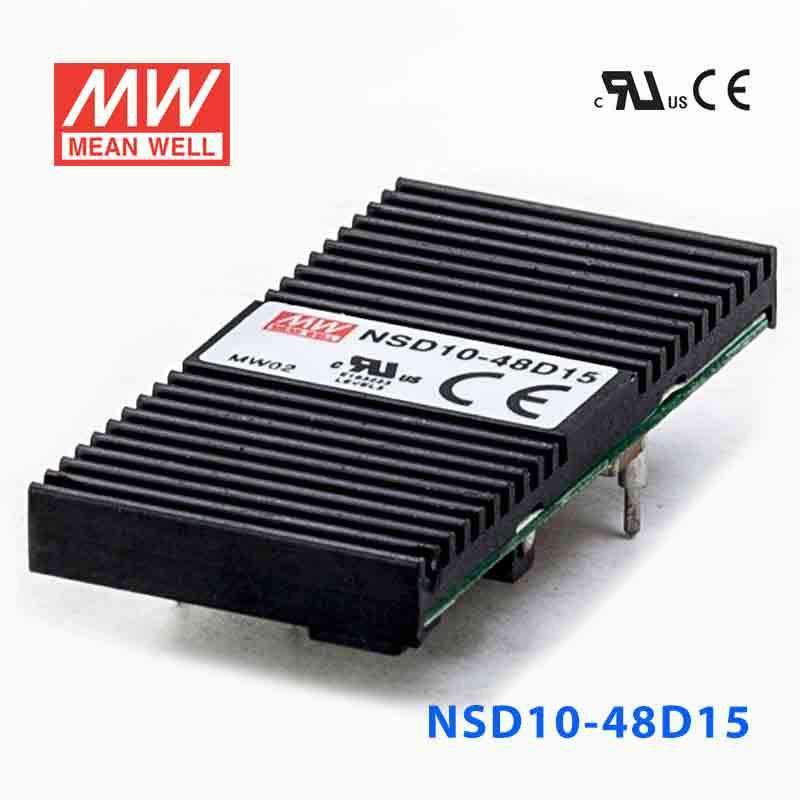

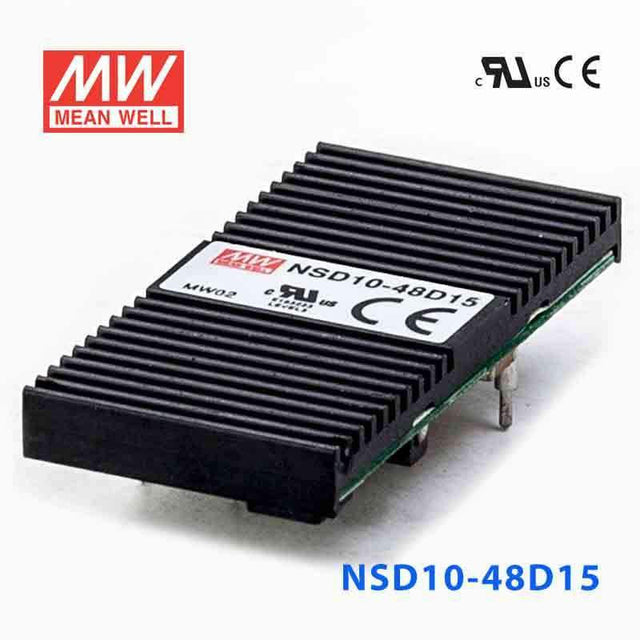

Mean Well NSD10-48D15 DC-DC Converter - 9.9W - 22~72V in ±15V out 3...
Overview
NSD10-48D15 is the 15V -15V output model of this series: rated current 0.33A 0.33A, rated power 9.9W, typical efficiency 77%.
Features
- Wide 4:1 DC input range
- Protections: Short circuit / Overload / Over voltage
- 1000VDC I/O isolation
- Built-in EMI filter
- Cooling by free air convection
- Built-in remote ON-OFF control
- 100% full load burn-in test
- Lost cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V -15V
- RATED CURRENT
- 0.33A 0.33A
- CURRENT RANGE
- 0.016 ~ 0.33A 0.016 ~ 0.33A
- RATED POWER
- 9.9W
- CAPACITIVE LOAD (max.)
- ±1000uF
- RIPPLE & NOISE (max.)Note.2
- 75mVp-p(10% ~ 100% load)
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP TIME
- 100ms/RATED DC INPUT at full Load
INPUT
- RATED DC INPUT
- 48VDC
- VOLTAGE RANGE
- 22 ~ 72VDC
- EFFICIENCY (Typ.)
- 77%
- DC CURRENT
- 0.4A/48VDC
- SHUTDOWN IDLE CURRENT
- 20mA/12VDC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE(CLAMP)
- 17.3 ~ 22.5V -17.3 ~ -22.5V
- SHORT CIRCUITNote.4
- Recovers automatically after fault condition is removed
FUNCTION
- ON/OFF CONTROL
- Logic "1" OPEN: ON logic "0" GND: OFF
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- ISOLATION VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 12288.5K hrs min. Telcordia SR-332 (Bellcore) ; 1878.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
- PACKING
- 0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Short circuit not more than 60 seconds.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
- 7. EMC filter suggestion:
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the NSD10-48D15 for bipolar analog circuits or measurement electronics that need +/-15V?
Yes, it provides constant-voltage +/-15V output and is rated for 9.9W total power. It fits lower-power bipolar analog, measurement, and interface circuits that require +/-15V within that 9.9W rating.
Is the NSD10-48D15 suitable for industrial instrumentation or signal-conditioning boards?
It can be used where industrial instrumentation or signal-conditioning electronics need regulated +/-15V rails. The output is intended for compact loads, with a listed 9.9W power rating and 0.33A per output as provided in the product specs.
Can this model support +/-15V control electronics from a 22~72V input source?
Yes, the converter is specified for a 22~72V input range and constant-voltage +/-15V output. That makes it suitable for systems using a higher-voltage source while feeding lower-power +/-15V electronics.
Is the NSD10-48D15 practical for compact embedded or cabinet-mounted designs?
The unit measures 50.8 x 25.4 x 10.0 mm and weighs 0.02 kg, so it is well suited to compact layouts. It is a small-format option for designs that need a bipolar +/-15V converter with a 9.9W rating.
Can the NSD10-48D15 be used in outdoor equipment or only protected environments?
The listed operating temperature range is -25C to +70C, which supports demanding indoor industrial conditions. No IP rating is shown in the provided specs, so the product data does not present it as an outdoor-rated converter by itself.
What other NSD10 series models are available alongside the NSD10-48D15?
On the NSD10-D datasheet, the 9.8~36VDC input models are NSD10-12D5 (10W, ±5V, 1A per output), NSD10-12D12 (10.08W, ±12V, 0.42A) and NSD10-12D15 (9.9W, ±15V, 0.33A); the 22~72VDC input models are NSD10-48D5 (10W, ±5V, 1A), NSD10-48D12 (10.08W, ±12V, 0.42A) and NSD10-48D15 (9.9W, ±15V, 0.33A). All are dual-output units in the same 50.8 x 25.4 x 10 mm package with 1KVDC I/O isolation.
