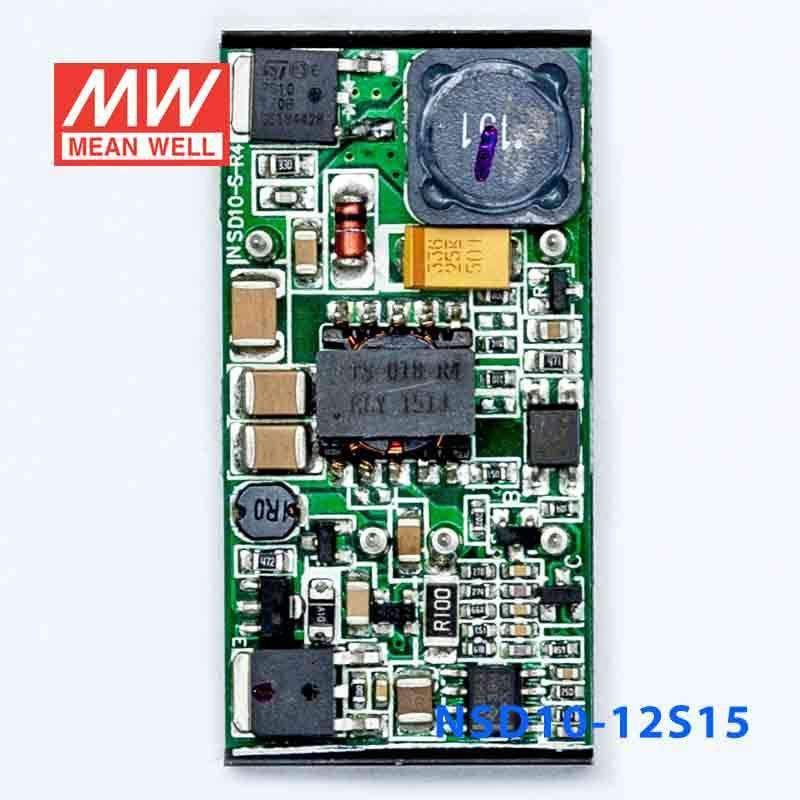

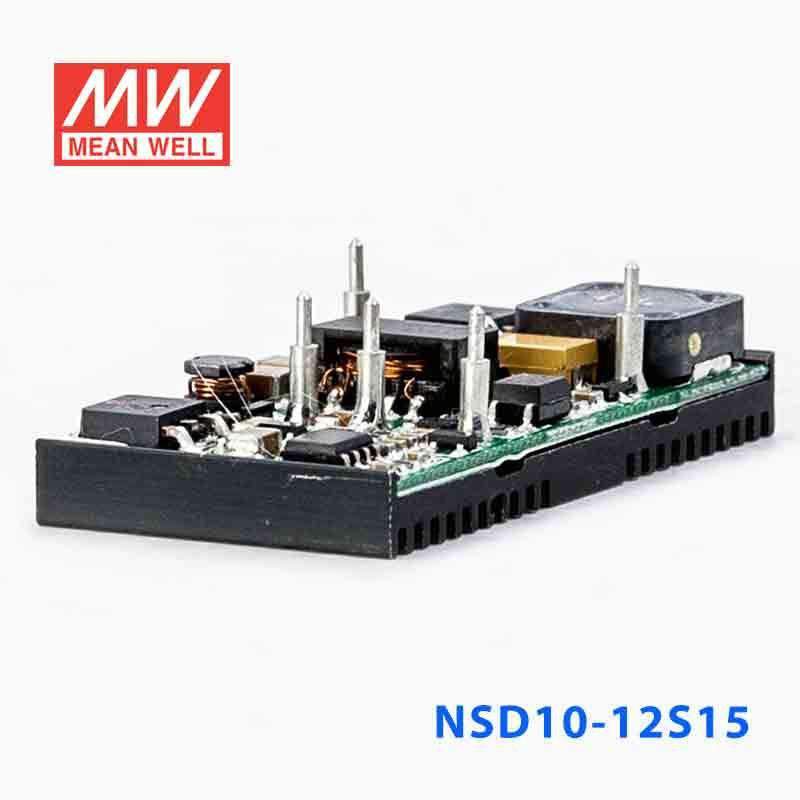

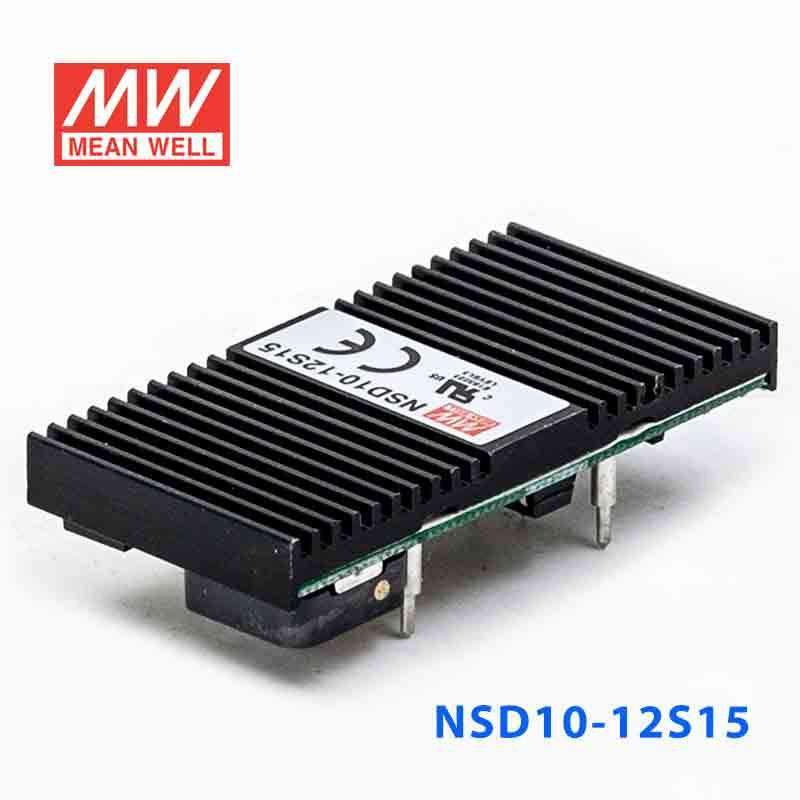

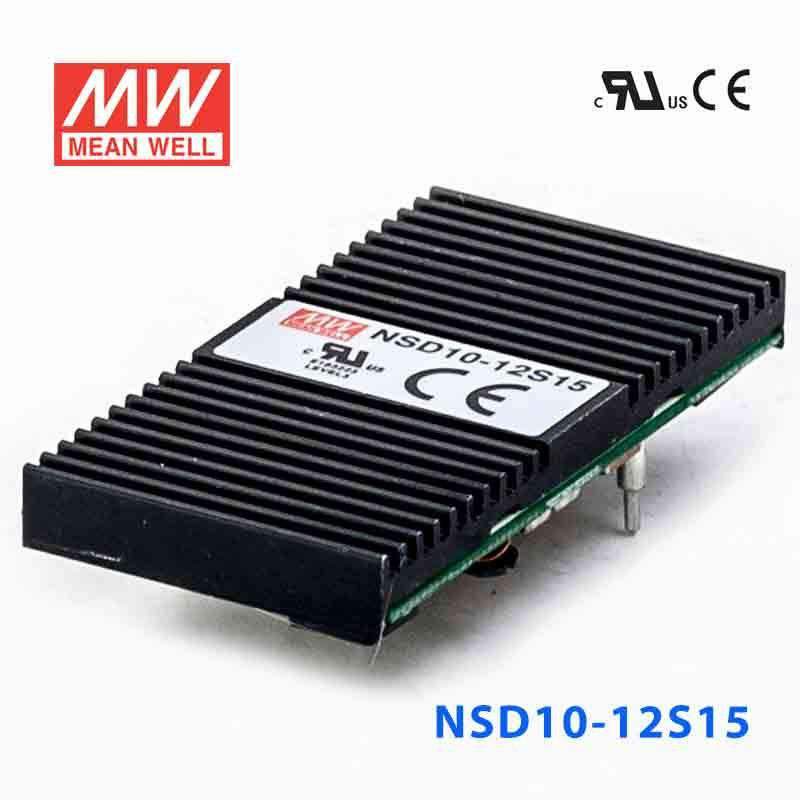

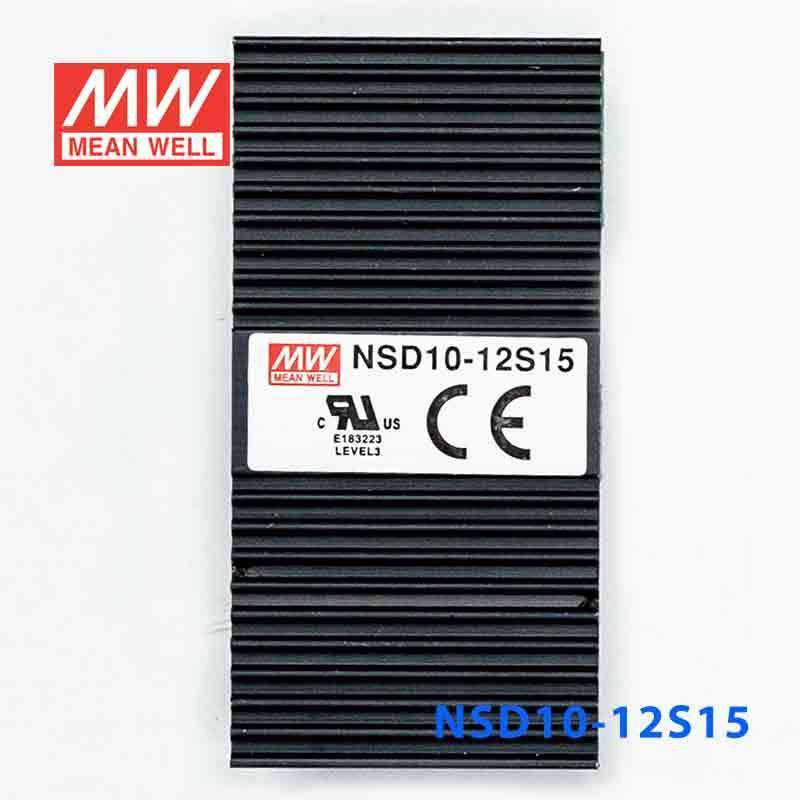

Mean Well NSD10-12S15 DC-DC Converter - 10.05W - 9.8~36V in 15V out...
Overview
NSD10-12S15 is the 15V output model of this series: rated current 0.67A, rated power 10.05W, typical efficiency 80%.
Features
- Wide 4:1 DC input range
- Protections: Short circuit / Overload / Over voltage
- 1000VDC I/O isolation
- Built-in EMI filter
- Cooling by free air convection
- Built-in remote ON-OFF control
- 100% full load burn-in test
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 0.67A
- CURRENT RANGE
- 0.03 ~ 0.67A
- RATED POWER
- 10.05W
- CAPACITIVE LOAD (max.)
- 3300uF
- RIPPLE & NOISE (max.)Note.2
- 75mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0% max.
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP TIME
- 100ms/RATED DC INPUT at full Load
INPUT
- RATED DC INPUT
- 12VDC
- VOLTAGE RANGE
- 9.8 ~ 36VDC
- EFFICIENCY (Typ.)
- 80%
- DC CURRENT
- 1.4A/12VDC
- SHUTDOWN IDLE CURRENT
- 20mA/12VDC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE(CLAMP)
- 17.3 ~ 22.5V
- SHORT CIRCUITNote.4
- Recovers automatically after fault condition is removed
FUNCTION
- ON/OFF CONTROL
- Logic "1" OPEN: ON logic "0" GND: OFF
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- ISOLATION VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 2138.0K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
- PACKING
- 0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Short circuit not more than 60 seconds.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
- 7. EMC filter suggestion:
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the NSD10-12S15 for 15V instrumentation or industrial sensing electronics?
Yes, this model is suitable for electronics that need constant-voltage 15V output from a 9.8-36VDC input range and stay within 10.05W. That makes it relevant for lower-power instrumentation and sensing circuits that operate on 15V.
Is the NSD10-12S15 appropriate for embedded 15V control boards or monitoring devices?
It can be used where the device requires regulated 15V output and total demand remains within 10.05W. The small 50.8 × 25.4 × 10.0 mm footprint also helps in compact embedded assemblies.
Can this converter power 15V industrial interface or relay logic sections?
Yes, if the application needs constant-voltage 15V power and the load fits within the 10.05W rating. It is aimed at lower-power 15V control and interface sections rather than larger 15V power loads.
How does the NSD10-12S15 compare with the other NSD10 converters in the 12-input family?
In the 9.8~36VDC input NSD10-S lineup, NSD10-12S3 is 8.25W, 3.3V, 2.5A; NSD10-12S5 is 10W, 5V, 2A; NSD10-12S9 is 9.9W, 9V, 1.1A; NSD10-12S12 is 9.96W, 12V, 0.83A; and NSD10-12S15 is 10.05W, 15V, 0.67A. The same output voltages are also offered as 22~72VDC input NSD10-48S versions. This unit is the single-output 15V version within that group.
Can the NSD10-12S15 handle wider temperature swings than standard indoor electronics?
Its specified working temperature range is -25°C to +70°C, with storage rated from -40°C to +85°C and working humidity up to 95% RH. The provided product specs do not state an IP rating, so outdoor exposure protection is not established here.
