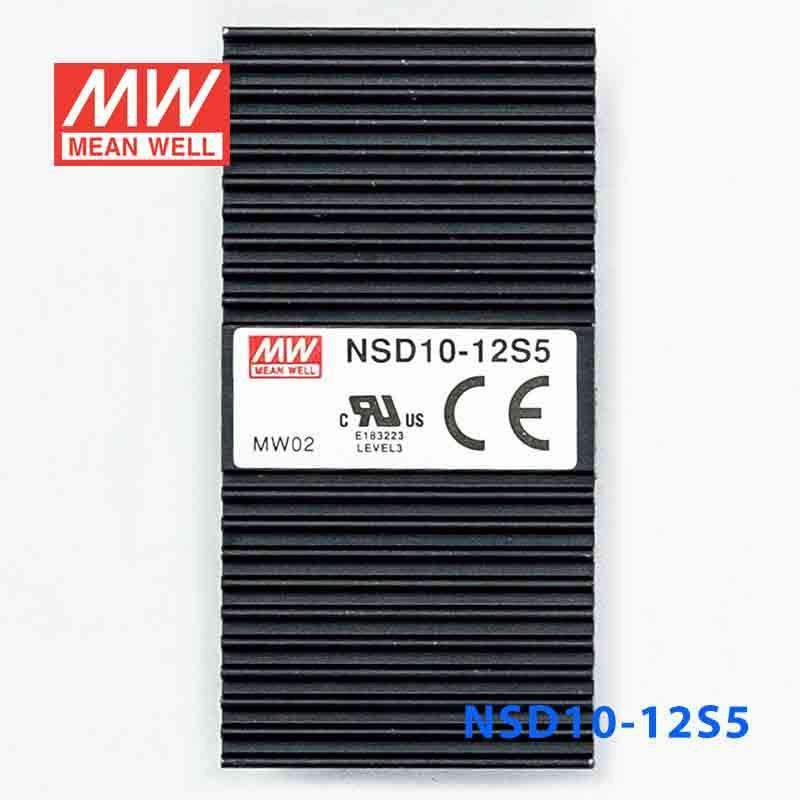

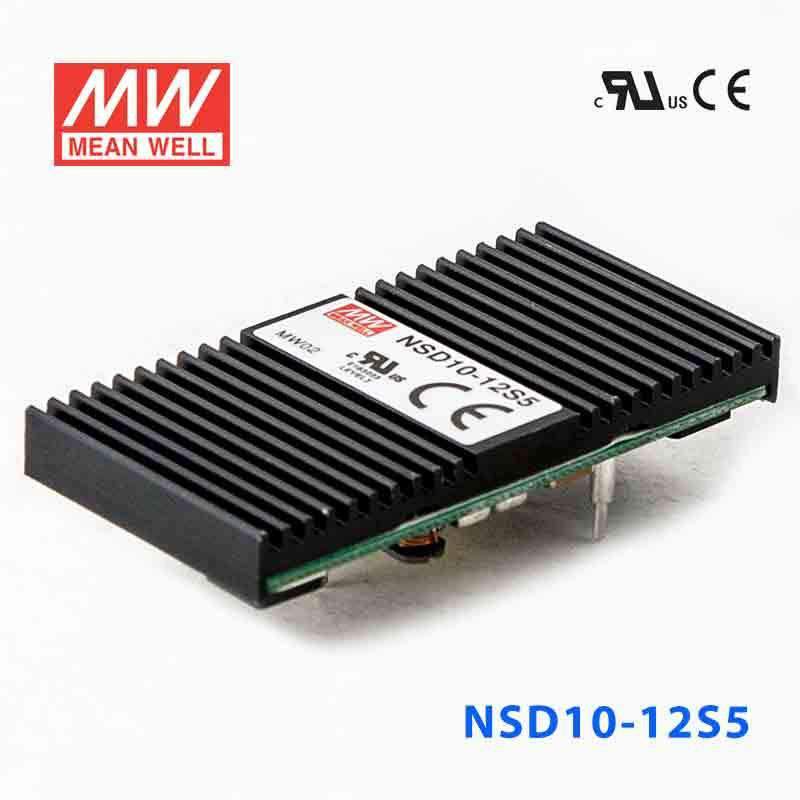

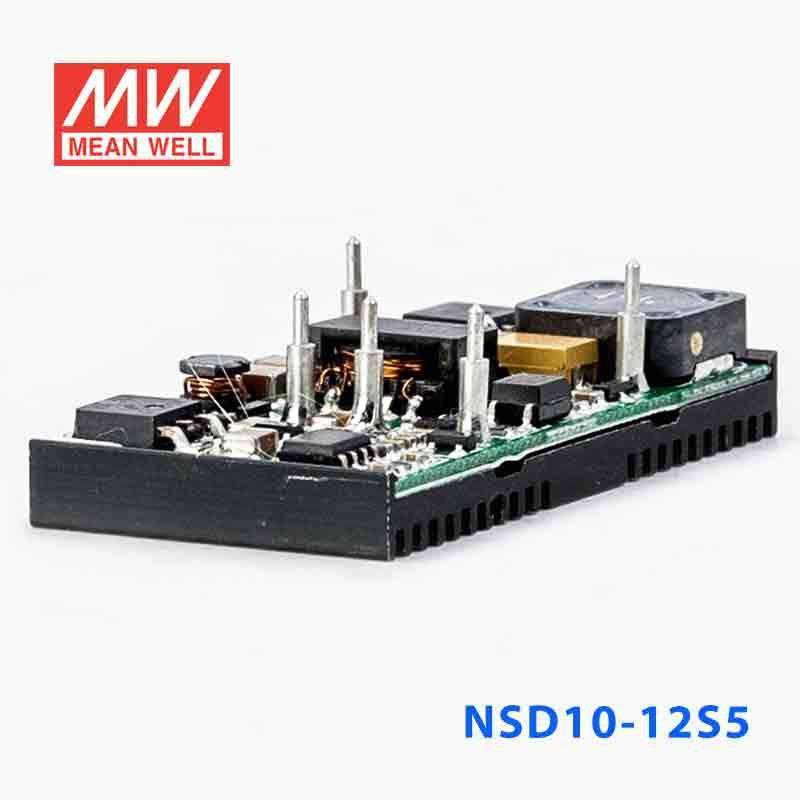

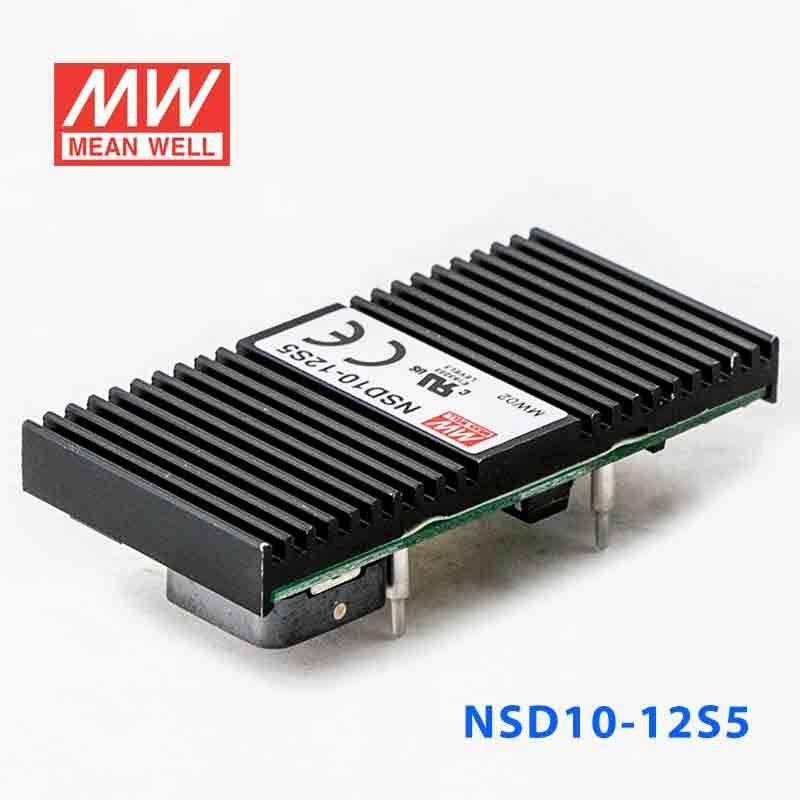

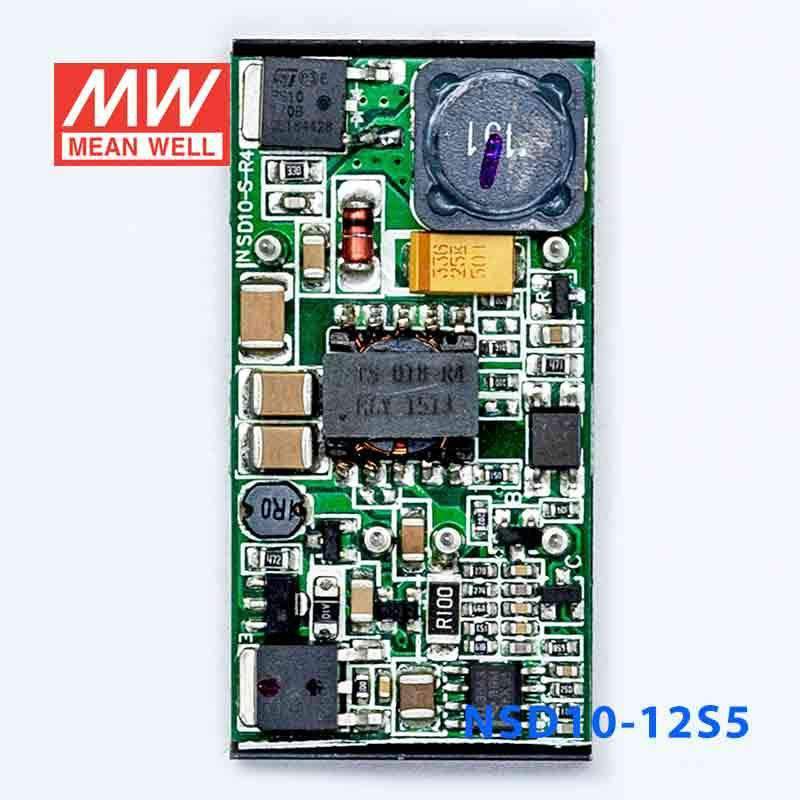

Mean Well NSD10-12S5 DC-DC Converter - 10W - 9.8~36V in 5V out
Description
Description
Features
| 4: 1 wide input range |
| 1000VDC I / O isolation |
| Built-in EMI filter |
| Protection: Short circuit / Overload / Over voltage |
| Built-in remote ON / OFF control |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2.0% (max.) |
| Line regulation | ± 1% @ 10 ~ 100% load |
| Load regulation | ± 1 ~ 3% @ 10 ~ 100% load |
| Efficiency | 80% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| Over voltage protection | Clamp @ 115 ~ 150% |
| Shutdown idle current | 20mA |
| I / O isolation voltage | 1000VDC |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 70°C |
| Storage temperature | -40 to + 85°C |
| Short circuit protection | Continuous, auto-recovery |
| Temp. Coefficient | ± 0.03% / °C |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8 |
| Safety standards | UL60950-1 approved |
| Dimension (LxWxH) (mm) | 2" x 1" x 0.394" |
| Packing | 0.02kg; 300pcs / 7.0kg / 0.97CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage9.8V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.39 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NSD10-12S5 for a 5V industrial controller or HMI support circuit?
Yes, it provides constant 5V output at up to 2A with a 10W power rating. It fits 5V control electronics, HMI support boards, and low-power automation devices when the total load remains within 5V, 2A, and 10W.
Is the NSD10-12S5 suitable for 5V USB-class or embedded peripherals inside equipment?
It can be used for 5V embedded peripherals and accessory circuits that need a regulated 5V rail. The sizing limit is 2A output current and 10W total power, so the connected 5V load needs to stay within those values.
Can this model power 5V sensors, interface boards, or compact automation modules?
Yes, the 5V constant-voltage output makes it suitable for 5V sensors, interface electronics, and compact automation modules. It is intended for lower-power 5V sections rather than loads above 2A or 10W.
Is the NSD10-12S5 appropriate where cabinet space is tight?
It is compact at 50.8 x 25.4 x 10.0 mm and weighs 0.02 kg, so it fits well in dense control layouts. That helps in embedded or industrial assemblies where a small 5V, 10W converter is needed.
Can the NSD10-12S5 handle indoor industrial temperature swings, and is it outdoor rated?
The operating temperature range is -40C to +85C, which supports use across a wide temperature span. The provided specs do not list an IP rating, so the product data does not describe it as sealed or outdoor rated by itself.
What are the main differences between the NSD10-12S5 and the other NSD10 variants?
In the 9.8~36V input branch, the series includes NSD10-12D12 at 10.8W, 12V, 420A; NSD10-12D15 at 9.9W, 15V, 333A; NSD10-12D5 at 10W, 5V, 1A; NSD10-12S12 at 9.96W, 12V, 830A; NSD10-12S15 at 10.05W, 15V, 670A; NSD10-12S3 at 8.25W, 3.3V, 2.5A; and NSD10-12S9 at 9.9W, 9V, 1.1A. The 22~72V input branch includes NSD10-48D12 at 10.8W, 12V, 420A; NSD10-48D15 at 9.9W, 15V, 333A; NSD10-48D5 at 10W, 5V, 1A; NSD10-48S12 at 9.96W, 12V, 830A; NSD10-48S15 at 10.05W, 15V, 670A; NSD10-48S3 at 8.25W, 3.3V, 2.5A; NSD10-48S5 at 10W, 5V, 2A; and NSD10-48S9 at 9.9W, 9V, 1.1A.
