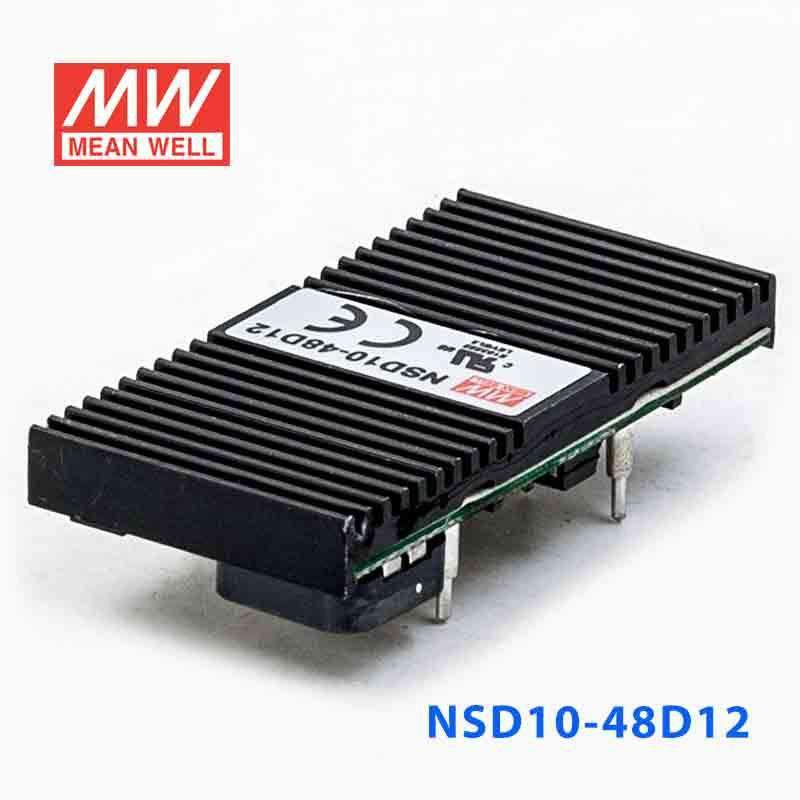

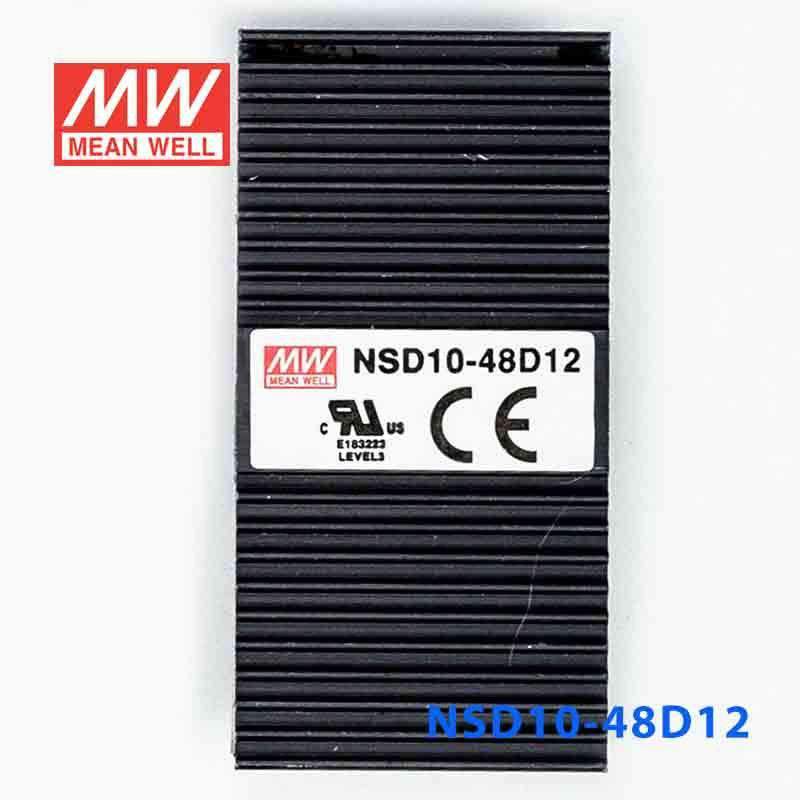

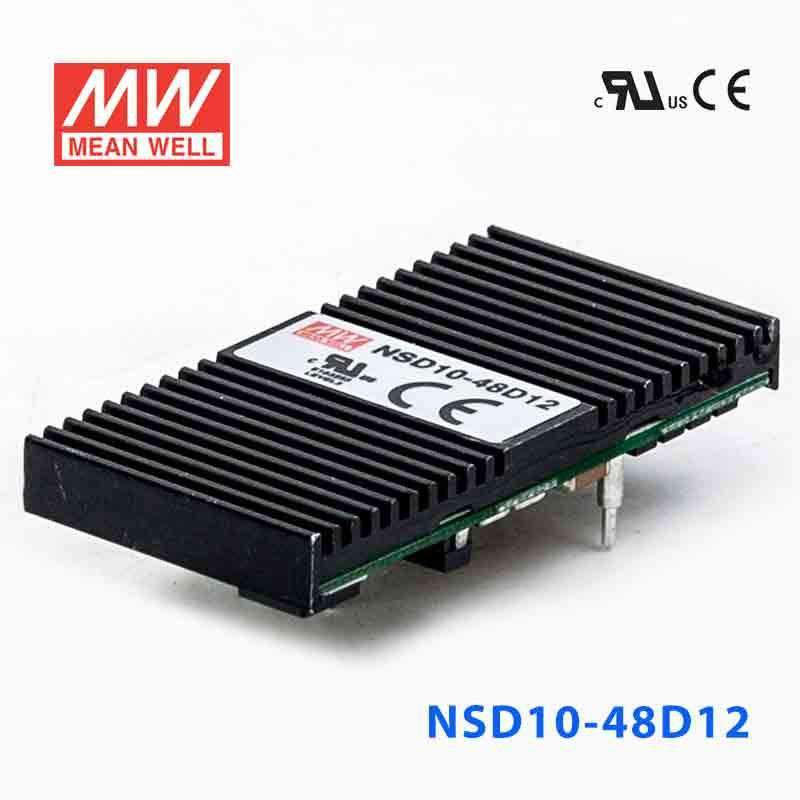

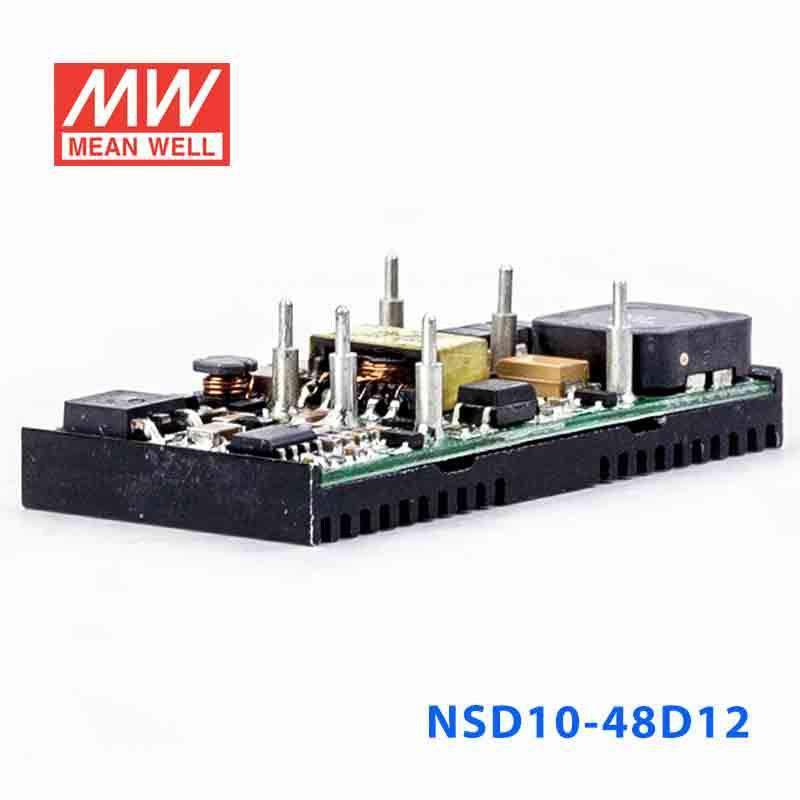

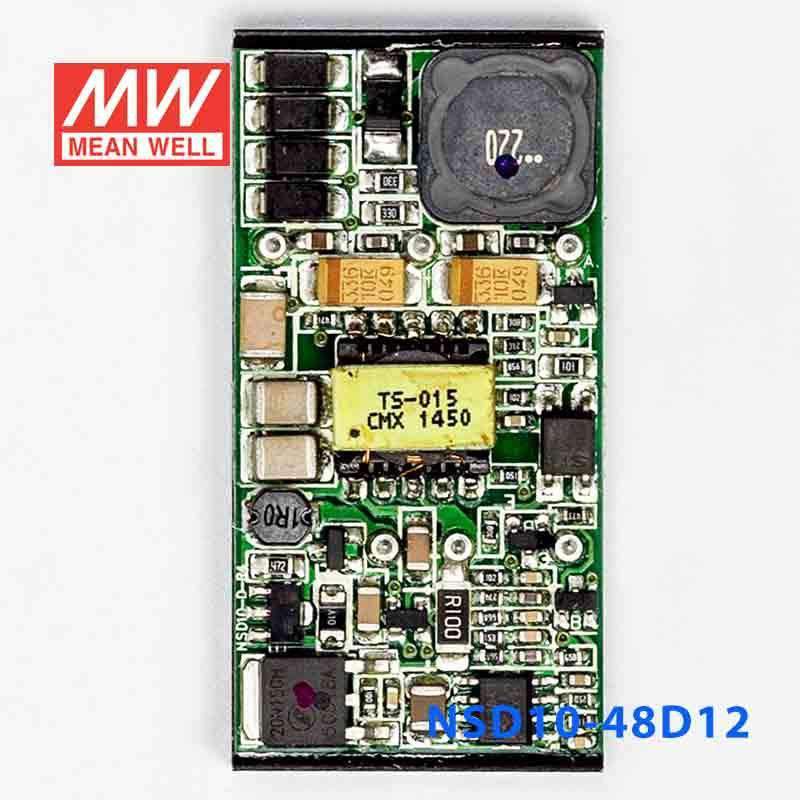

Mean Well NSD10-48D12 DC-DC Converter - 10.8W - 22~72V in ±12V out ...
Overview
NSD10-48D12 is the 12V -12V output model of this series: rated current 0.42A 0.42A, rated power 10.08W, typical efficiency 77%.
Features
- Wide 4:1 DC input range
- Protections: Short circuit / Overload / Over voltage
- 1000VDC I/O isolation
- Built-in EMI filter
- Cooling by free air convection
- Built-in remote ON-OFF control
- 100% full load burn-in test
- Lost cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V -12V
- RATED CURRENT
- 0.42A 0.42A
- CURRENT RANGE
- 0.02 ~ 0.42A 0.02 ~ 0.42A
- RATED POWER
- 10.08W
- CAPACITIVE LOAD (max.)
- ±1000uF
- RIPPLE & NOISE (max.)Note.2
- 75mVp-p(10% ~ 100% load)
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP TIME
- 100ms/RATED DC INPUT at full Load
INPUT
- RATED DC INPUT
- 48VDC
- VOLTAGE RANGE
- 22 ~ 72VDC
- EFFICIENCY (Typ.)
- 77%
- DC CURRENT
- 0.4A/48VDC
- SHUTDOWN IDLE CURRENT
- 20mA/12VDC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE(CLAMP)
- 13.8 ~ 18V -13.8 ~ -18V
- SHORT CIRCUITNote.4
- Recovers automatically after fault condition is removed
FUNCTION
- ON/OFF CONTROL
- Logic "1" OPEN: ON logic "0" GND: OFF
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- ISOLATION VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 12288.5K hrs min. Telcordia SR-332 (Bellcore) ; 1878.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
- PACKING
- 0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Short circuit not more than 60 seconds.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
- 7. EMC filter suggestion:
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the NSD10-48D12 for bipolar analog or signal-conditioning circuits in industrial equipment?
Yes, this model provides constant-voltage +/-12V output with a 10.08W rating. It is suited to lower-power bipolar analog, signal-conditioning, and interface circuits that need +/-12V and stay within the listed 10.08W output rating.
Is the NSD10-48D12 suitable for control and monitoring boards that need +/-12V rails?
It can be used for control, monitoring, and instrumentation boards that require +/-12V output. The converter is intended for compact loads within its 10.08W capacity rather than higher-power +/-12V subsystems.
Can this converter be used in equipment with a 22~72V input bus and +/-12V electronics?
Yes, the specified input range is 22~72V and the output is constant-voltage +/-12V. That makes it relevant for systems built around a higher-voltage input bus feeding lower-power bipolar electronics.
Does the NSD10-48D12 work well in compact industrial assemblies?
Its dimensions are 50.8 x 25.4 x 10.0 mm and its weight is 0.02 kg, so it is small enough for dense layouts. That is useful when a compact +/-12V converter is needed inside a control enclosure or embedded assembly.
Is the NSD10-48D12 meant for outdoor use or temperature-demanding indoor equipment?
The operating temperature range is -25C to +70C, so it is specified for a broad industrial indoor temperature range. No IP rating is listed, so the provided specs do not define it as outdoor rated or weather-sealed.
How does the NSD10-48D12 compare with other NSD10 converter options?
On the NSD10-D datasheet, the 9.8~36VDC input models are NSD10-12D5 (10W, ±5V, 1A per output), NSD10-12D12 (10.08W, ±12V, 0.42A) and NSD10-12D15 (9.9W, ±15V, 0.33A); the 22~72VDC input models are NSD10-48D5 (10W, ±5V, 1A), NSD10-48D12 (10.08W, ±12V, 0.42A) and NSD10-48D15 (9.9W, ±15V, 0.33A). All are dual-output units in the same 50.8 x 25.4 x 10 mm package with 1KVDC I/O isolation.
