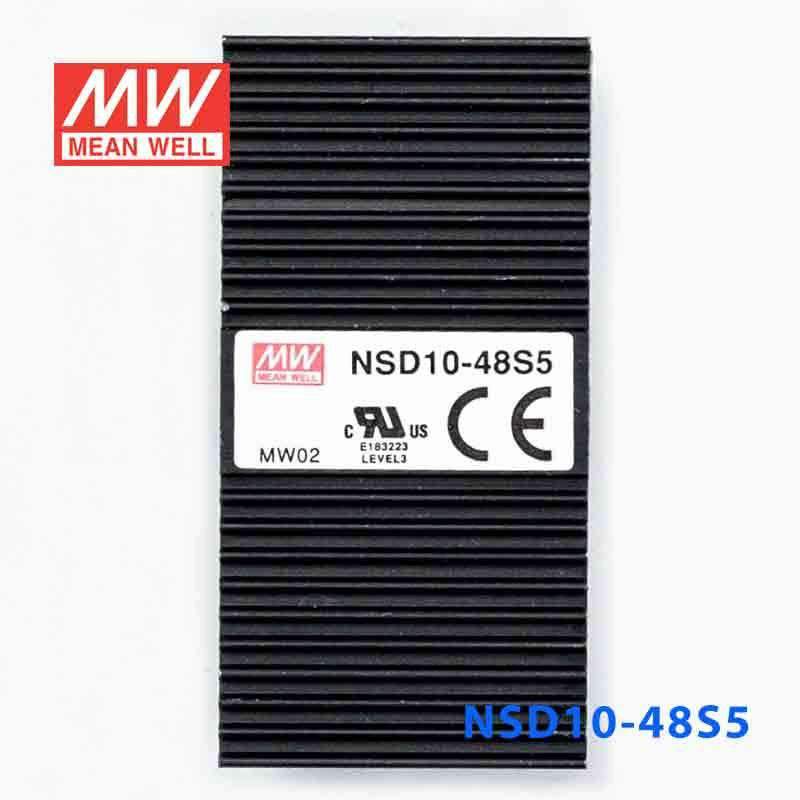

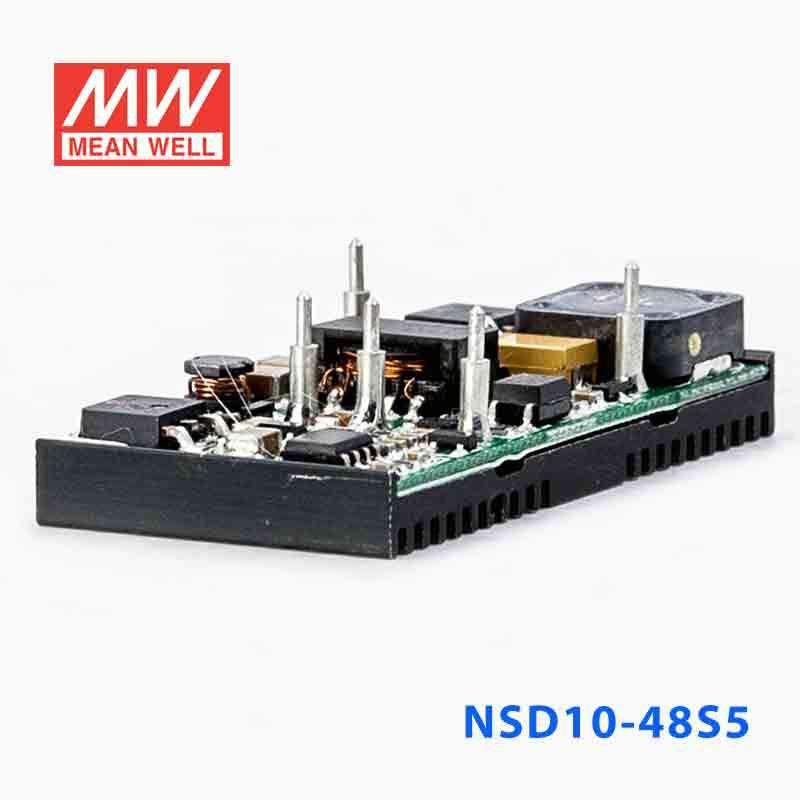

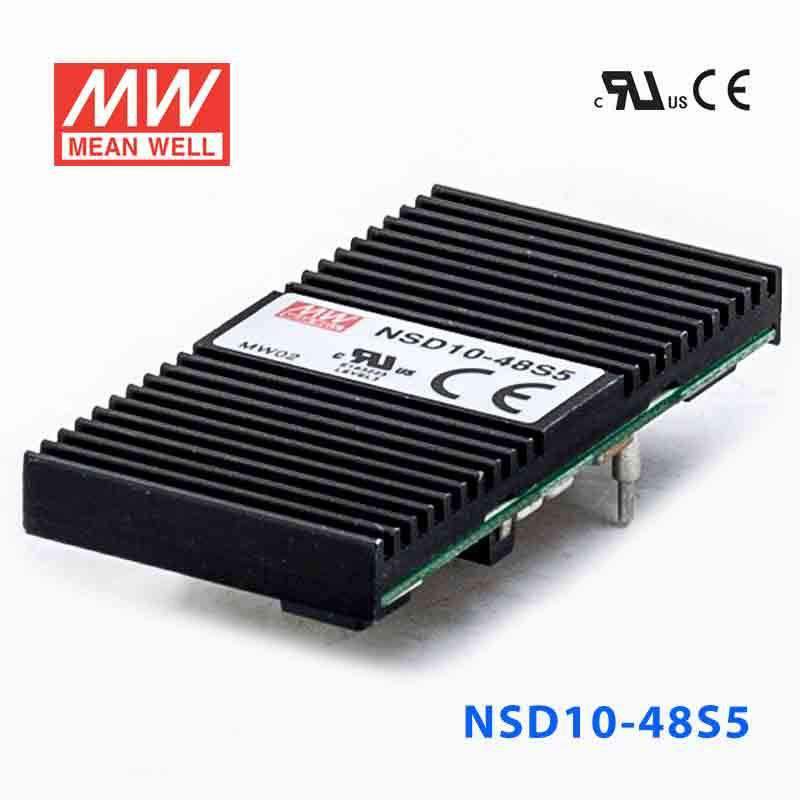

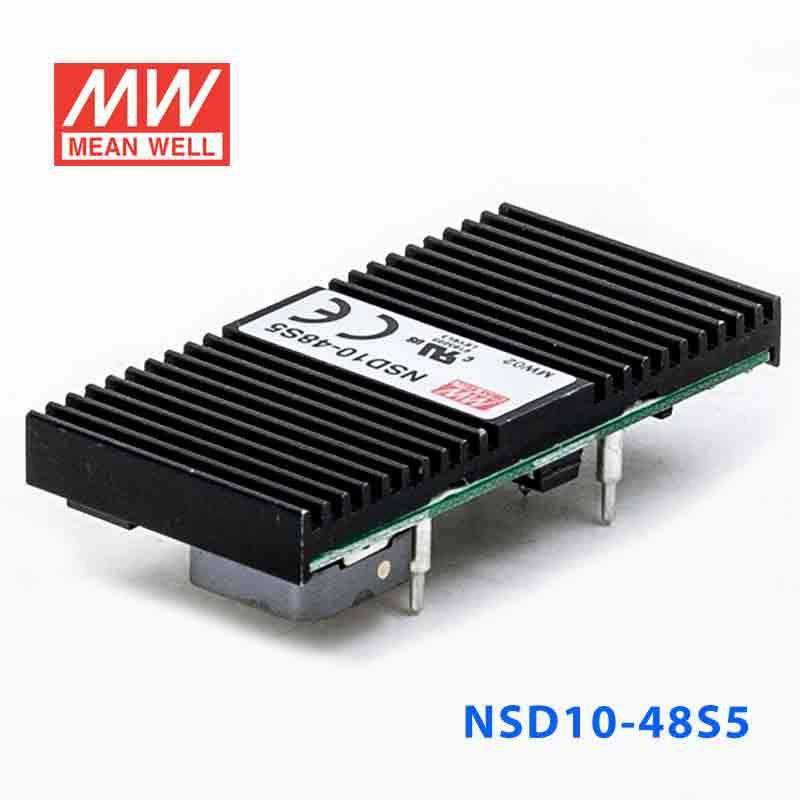

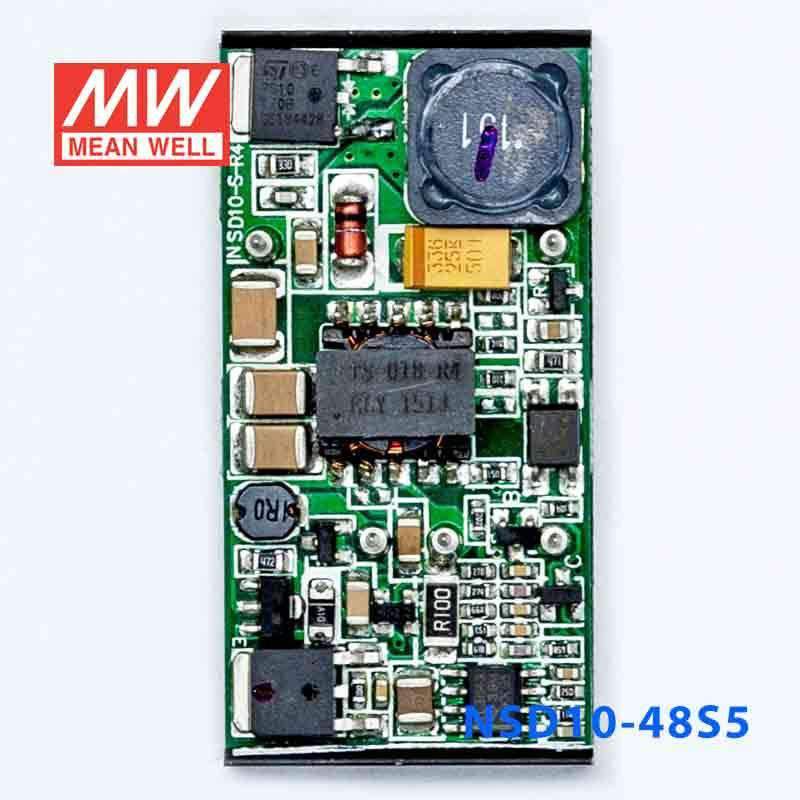

Mean Well NSD10-48S5 DC-DC Converter - 10W - 22~72V in 5V out 2A
The NSD10 is a 10W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage22V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.39 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the NSD10-48S5 for 5V industrial control or embedded computing hardware?
Yes, it can fit compact industrial control or embedded computing hardware that needs a constant 5V output from a 22-72VAC input source. With a 10W rating and 2A output, it supports more 5V current than the 5V 1A version in the same family.
Is the NSD10-48S5 suitable for 5V gateways, HMI logic boards, or monitoring devices?
It is a practical option for 5V gateways, HMI logic sections, and monitoring electronics if the load stays within 10W. The 50.8 × 25.4 × 10.0 mm size also helps in compact automation assemblies.
Can this model be used for low-power 5V automation electronics in a wide-temperature enclosure?
Yes, if the electronics need a regulated 5V output and the source is within 22-72VAC. Its operating temperature range is -40°C to +85°C, which supports use in broader temperature conditions than models limited to -25°C to +70°C.
Is the NSD10-48S5 suitable for outdoor installations?
An IP rating is not provided in the supplied specs, so exposed outdoor use is not established here. The listed environmental data is the -40°C to +85°C operating range, which covers temperature but not ingress protection.
How does the NSD10-48S5 differ from the other NSD10 models in the same series?
The sibling list includes NSD10-12D12 at 10.8W, 12V, 420A; NSD10-12D15 at 9.9W, 15V, 333A; NSD10-12D5 at 10W, 5V, 1A; NSD10-12S12 at 9.96W, 12V, 830A; NSD10-12S15 at 10.05W, 15V, 670A; NSD10-12S3 at 8.25W, 3.3V, 2.5A; NSD10-12S5 at 10W, 5V, 2A; and NSD10-12S9 at 9.9W, 9V, 1.1A. The related 48-input models are NSD10-48D12 at 10.8W, 12V, 420A; NSD10-48D15 at 9.9W, 15V, 333A; NSD10-48D5 at 10W, 5V, 1A; NSD10-48S12 at 9.96W, 12V, 830A; NSD10-48S15 at 10.05W, 15V, 670A; NSD10-48S3 at 8.25W, 3.3V, 2.5A; and NSD10-48S9 at 9.9W, 9V, 1.1A.
