Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

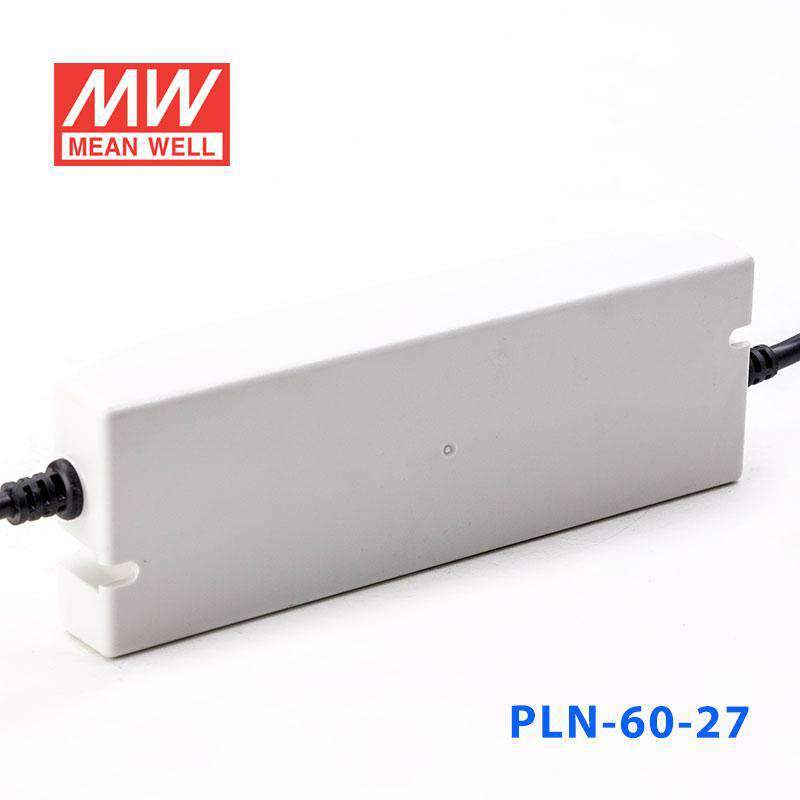

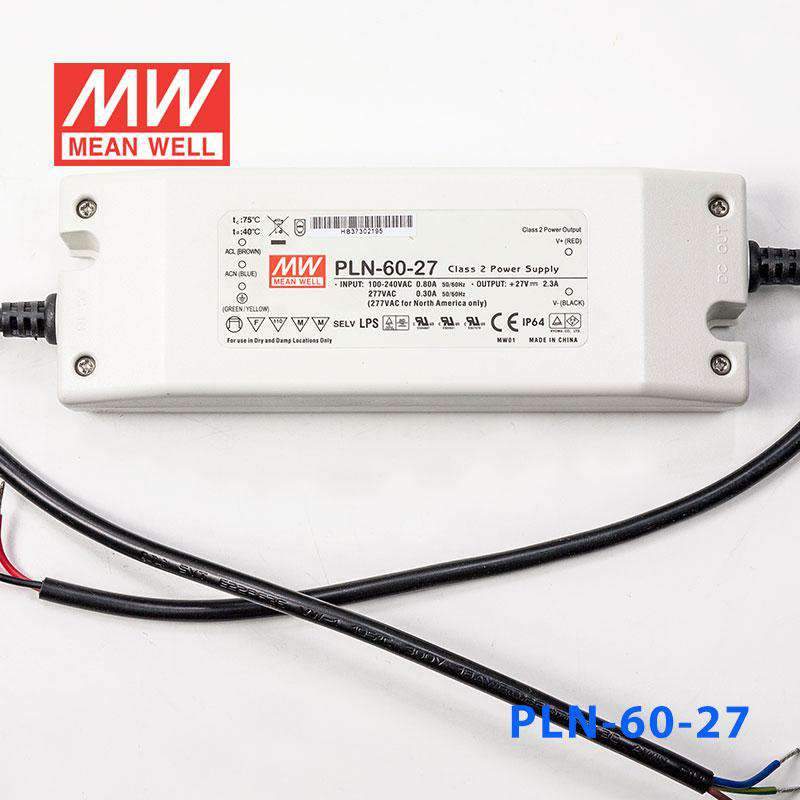

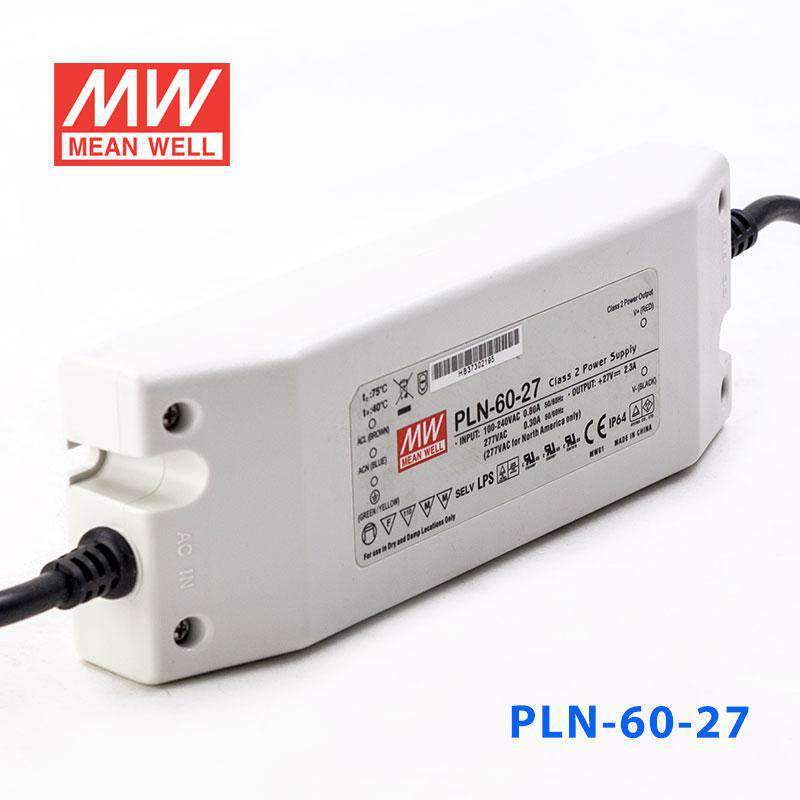

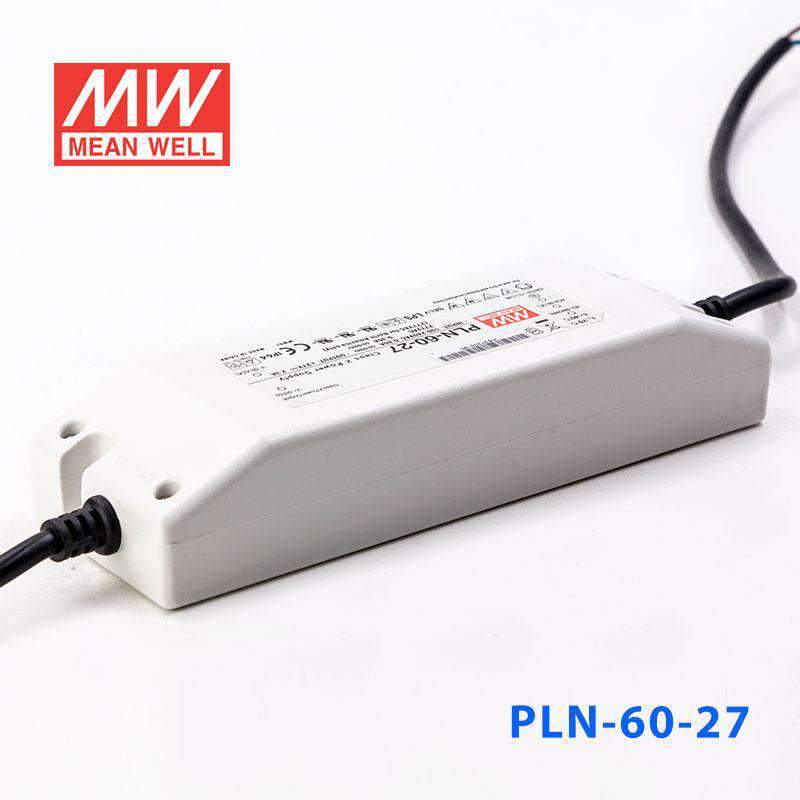

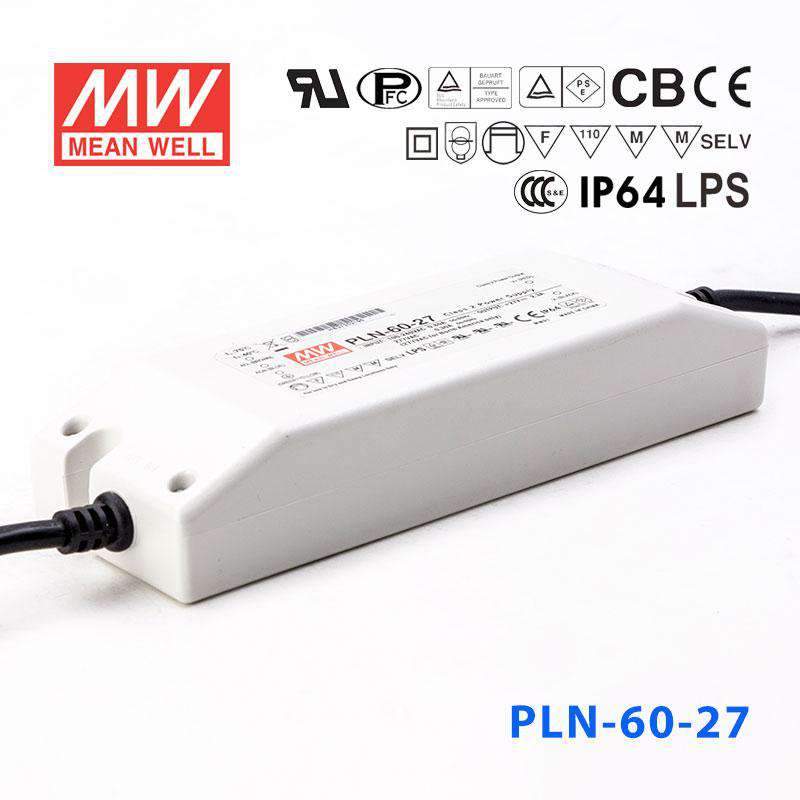

Mean Well PLN-60-27 Power Supply 60W 27V - IP64
The PLN-60 is a 60W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating62.1 Watt
-
Output Voltage27 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-60-27 for LED signage modules?
Yes, this model is suitable for signage applications when the LED load is designed for constant-current operation in the 18-27V range. It delivers up to 2.3A and 62.1W, so the sign modules need to stay within those output limits.
Is the PLN-60-27 suitable for 27V constant-current linear lighting?
It can be a fit for linear lighting that uses a constant-current LED engine operating within the 18-27V CC voltage range. The driver provides 27V nominal output and 2.3A output current, so the fixture needs to match that operating window.
Can this driver power a 27V LED strip or tape light?
Only if the strip is specifically designed for constant-current 27V operation and falls within the 18-27V CC range. For sizing, the maximum load is 62.1W, so estimated strip length = 62.1W divided by your strip's rated power per meter; check your strip rated power per meter before sizing.
Can I use the PLN-60-27 in outdoor sign boxes or damp locations?
Its IP64 rating makes it suited to dusty areas and locations where splashing water is expected, such as protected outdoor signage enclosures. It is not the right choice for submersion or applications that require a higher water-ingress rating than IP64.
Is the PLN-60-27 a good match for enclosed display or accent lighting systems?
It can work well in enclosed display or accent lighting systems that use constant-current LEDs within the 18-27V range. The fully isolated plastic case, 90-295VAC input, and operating range of -30°C to +50°C make it practical for a wide range of indoor or sheltered commercial lighting environments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLN-60 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLN-60-48 Power Supply 60W 48V - IP64 | 62.4W | 48V | 1.3A | IP64 | $35.98 | View |
| Mean Well PLN-60-36 Power Supply 60W 36V - IP64 | 61.2W | 36V | 1.7A | IP64 | $38.90 | View |
| Mean Well PLN-60-24 Power Supply 60W 24V - IP64 | 60W | 24V | 2.5A | IP64 | $38.92 | View |
| Mean Well PLN-60-20 Power Supply 60W 20V - IP64 | 60W | 20V | 3A | IP64 | $35.98 | View |
| Mean Well PLN-60-15 Power Supply 60W 15V - IP64 | 60W | 15V | 4A | IP64 | $38.90 | View |
| Mean Well PLN-60-12 Power Supply 60W 12V - IP64 | 60W | 12V | 5A | IP64 | $35.98 | View |
