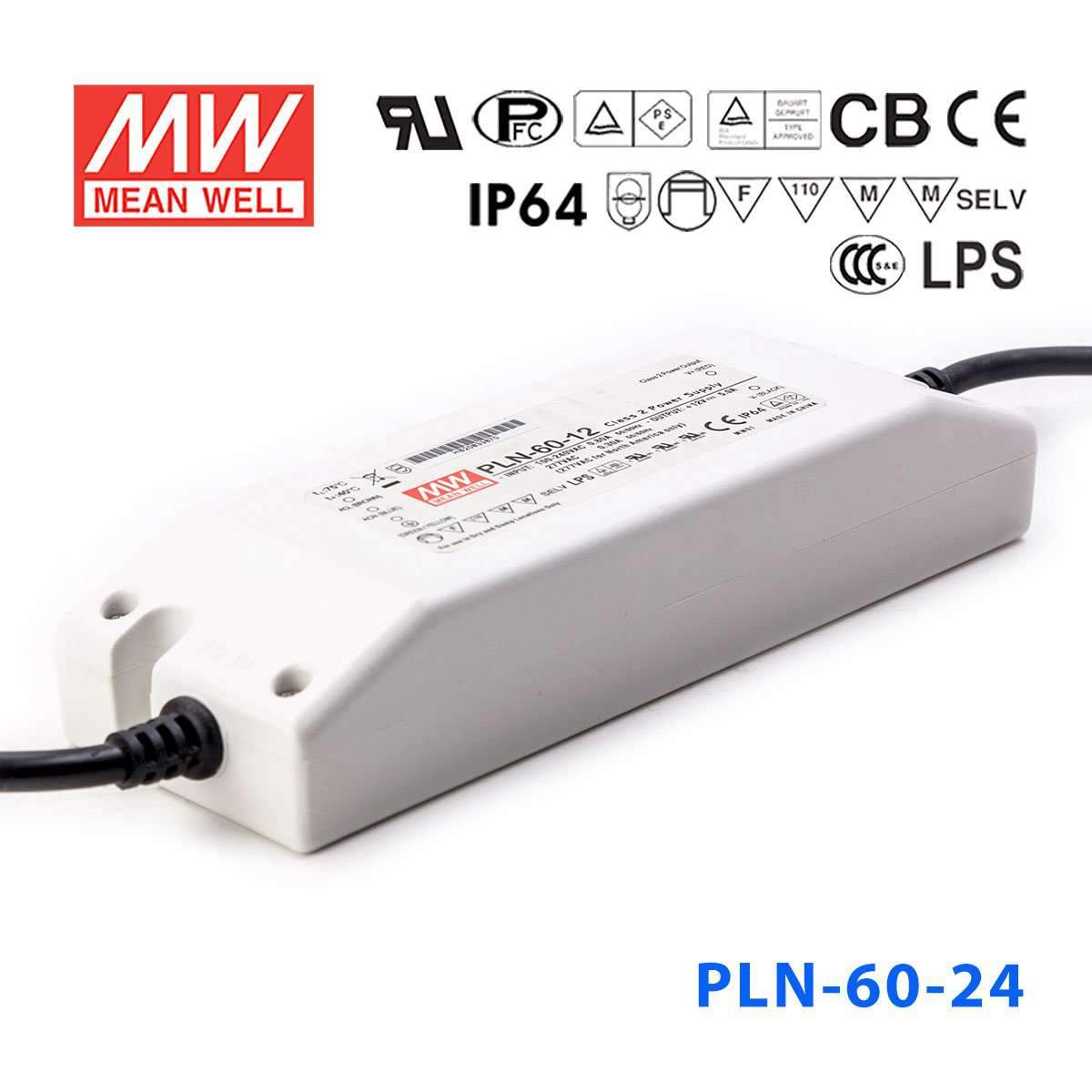

Mean Well PLN-60-24 Power Supply 60W 24V - IP64

fully isolated plastic case, IP64, suitable for signage applications
$38.92 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range
Fully isolated plastic case with IP64 level
Built-in active PFC function, PF>0.9 for 75% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
Built-in constant current limiting circuit (C.V.+C.C. mode)
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
User adjustable output voltage and current protection level
Cooling by free air convection
Suitable for LED lighting and moving sign applications
2 years warranty

General Specification

AC input voltage range 90~295VAC ; 127~417VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range 95%~108% rated output voltage
Current adjustment range 75%~103%
Over current protection 95%~110% constant current limiting, auto-recovery
Over voltage protection 115%~140% rated output voltage
Setup, rise, hold up time 1500ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature -30~+50ºC (refer to output derating curve)
Safety standards UL879, UL1310, UL8750(PLN-45/60), TUV EN61347-1, EN61347-2-13,PSE J61347-1, J61347-2-13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SVT 18AWGx3C (30cm)
Connection Output UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 181x 61.5x 35

Specifications

  • Brand
    Mean Well
  • Series
    PLN Series
  • Power Rating
    60 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    2.5 Ampere
  • Input Voltage
    90V~295V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CCC,CE,EAC,PSE,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -30°C~50°C
  • Warranty
    2 Year
  • Length
    7.13 in
  • Width
    2.42 in
  • Height
    1.38 in
  • Weight
    1.1 lb

File Downloads

::specification::
