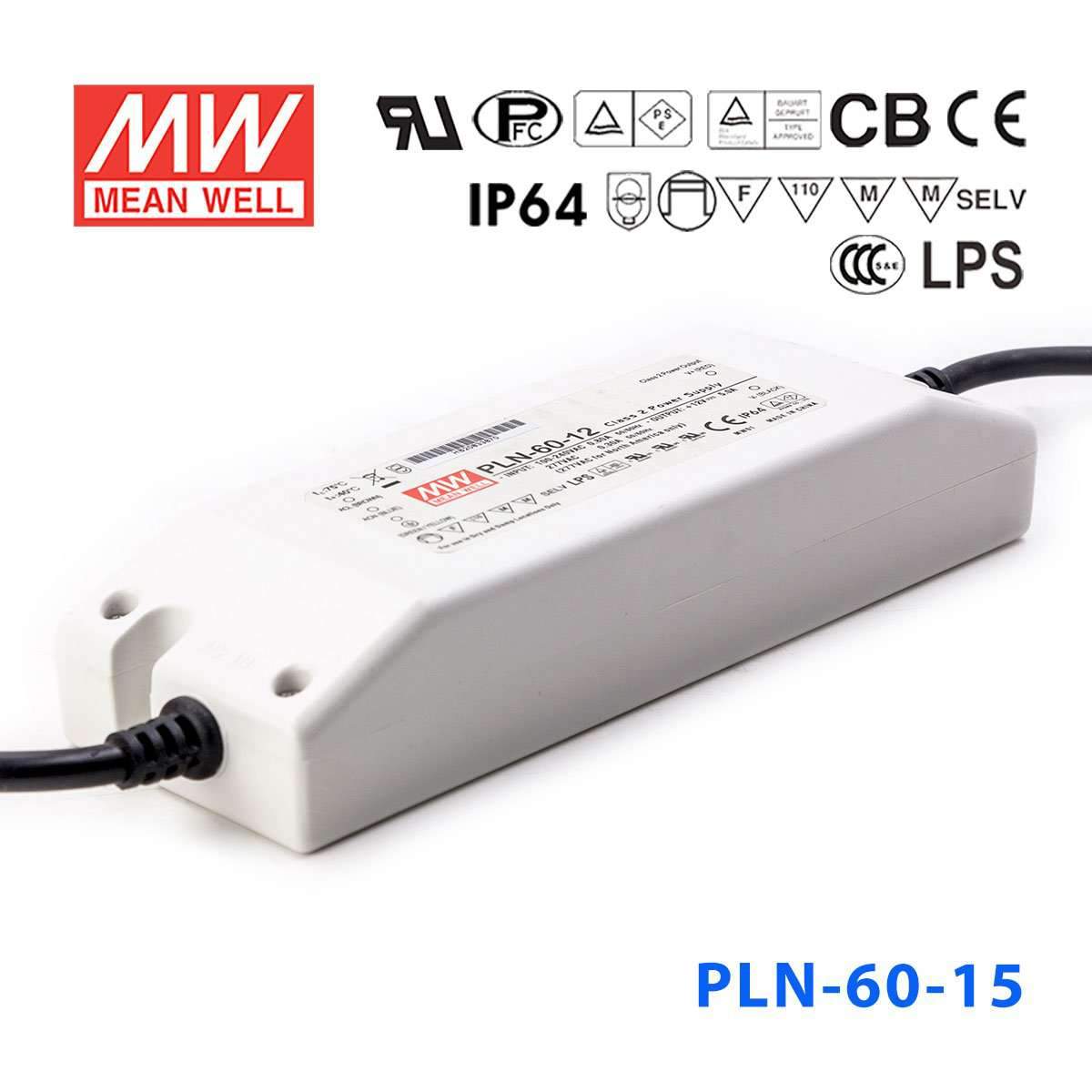

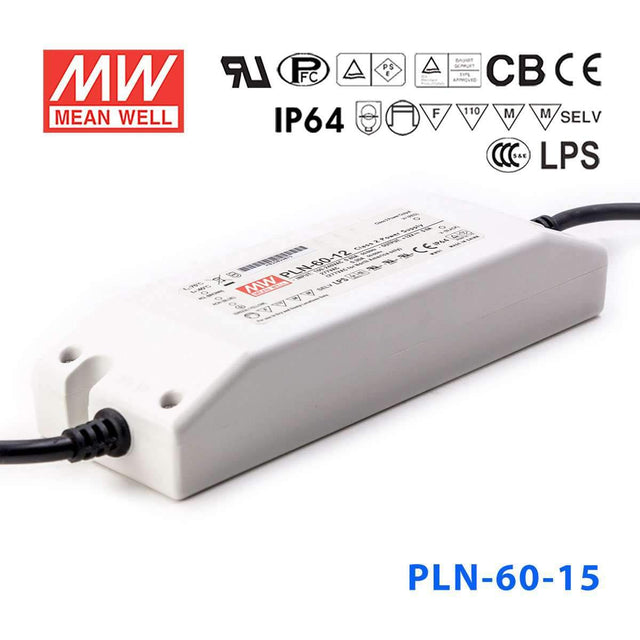

Mean Well PLN-60-15 Power Supply 60W 15V - IP64
The PLN-60 is a 60W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-60-15 for 15V LED lighting in sign cabinets?
Yes, if the lighting load is designed for 15V and stays within 60W and 4A. This model is listed as suitable for signage applications and uses an IP64 enclosure.
Is the PLN-60-15 suitable for 15V linear lighting or display illumination?
It can be used for 15V linear or display lighting loads up to 60W. The 90-295VAC input range is also useful where the AC source may vary by site.
Can this driver be used for 15V accent lighting in commercial interiors?
It can work for 15V accent lighting when the total demand remains within its 60W output capacity and 4A current rating. Its fully isolated plastic case also suits enclosed lighting assemblies where a sealed housing is preferred.
How much 15V LED strip can the PLN-60-15 run?
The maximum strip length depends on the strip's power draw per meter: 60W ÷ strip watts per meter = maximum meters. Check your strip rated power per meter and keep the overall load within 60W and 4A.
Can the PLN-60-15 be used in wet or outdoor conditions?
Its IP64 rating indicates protection against dust and splashing water, so it is intended for harsher environments than an open indoor driver. For final suitability, stay within the rated enclosure protection and the operating temperature range of -30°C to +50°C.
