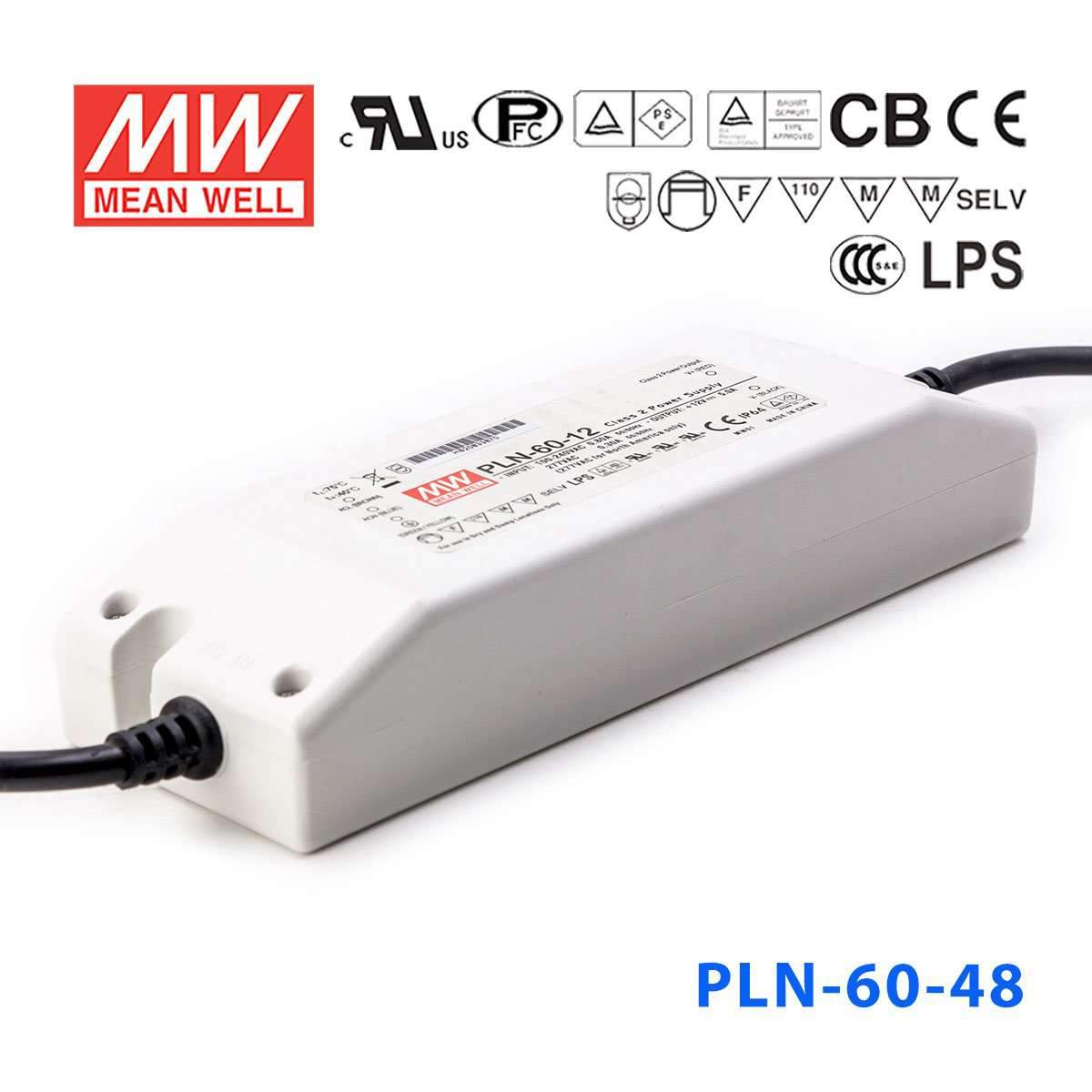

Mean Well PLN-60-48 Power Supply 60W 48V - IP64
$35.98 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 295VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF>0.9 for 75% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| User adjustable output voltage and current protection level |
| Cooling by free air convection |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~295VAC ; 127~417VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| DC adjustment range | 95%~108% rated output voltage |
| Current adjustment range | 75%~103% |
| Over current protection | 95%~110% constant current limiting, auto-recovery |
| Over voltage protection | 115%~140% rated output voltage |
| Setup, rise, hold up time | 1500ms(setup time) at full load and 230VAC, no hold up time |
| Withstand voltage | I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC |
| Working temperature | -30~+50ºC (refer to output derating curve) |
| Safety standards | UL879, UL1310, UL8750(PLN-45/60), TUV EN61347-1, EN61347-2-13,PSE J61347-1, J61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating62.4 Watt
-
Output Voltage48 Volt
-
Rated Current1.3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
