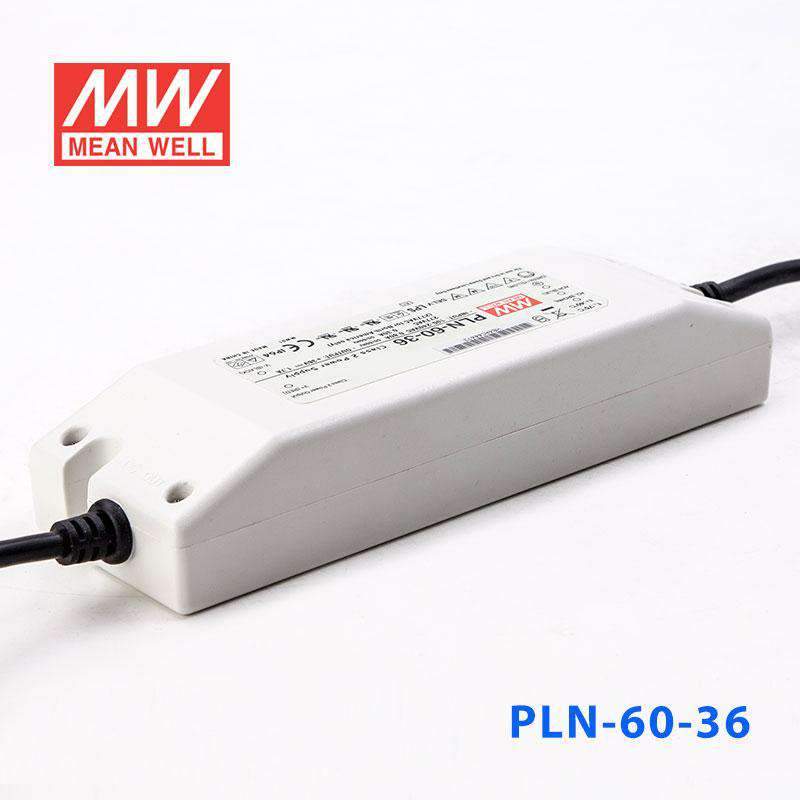

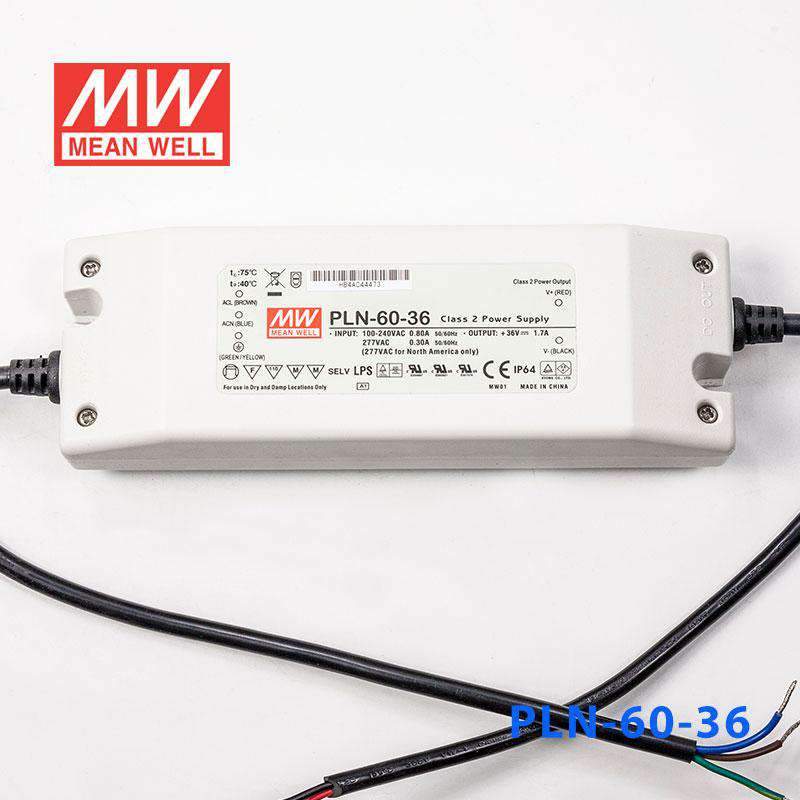

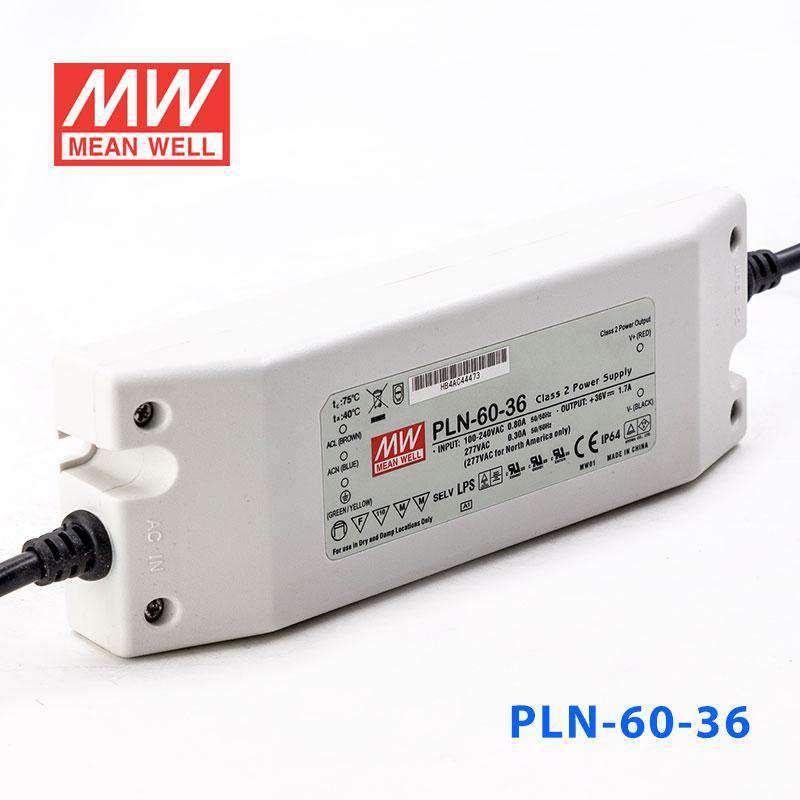

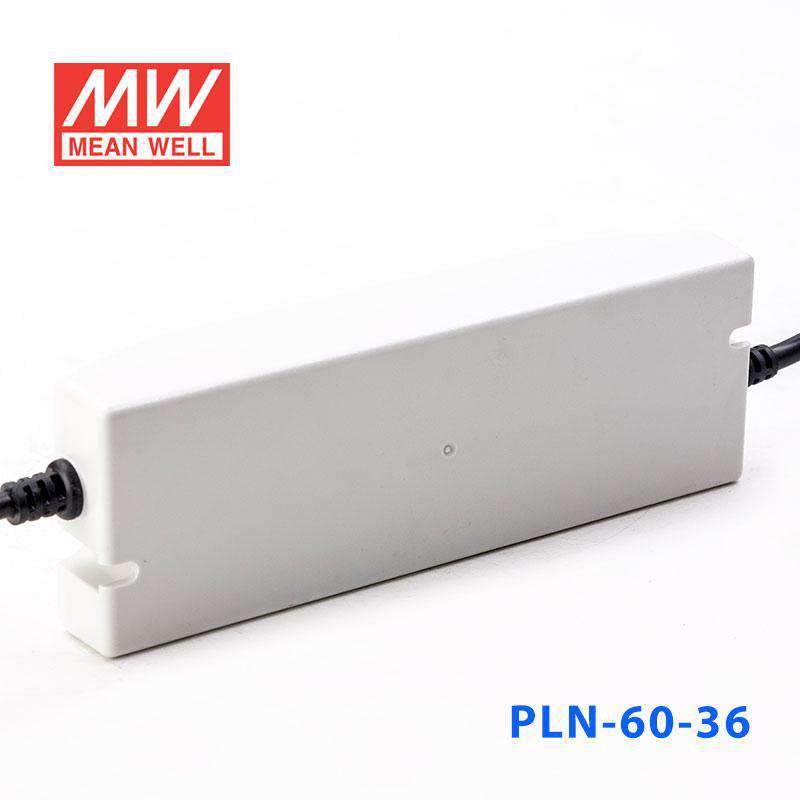

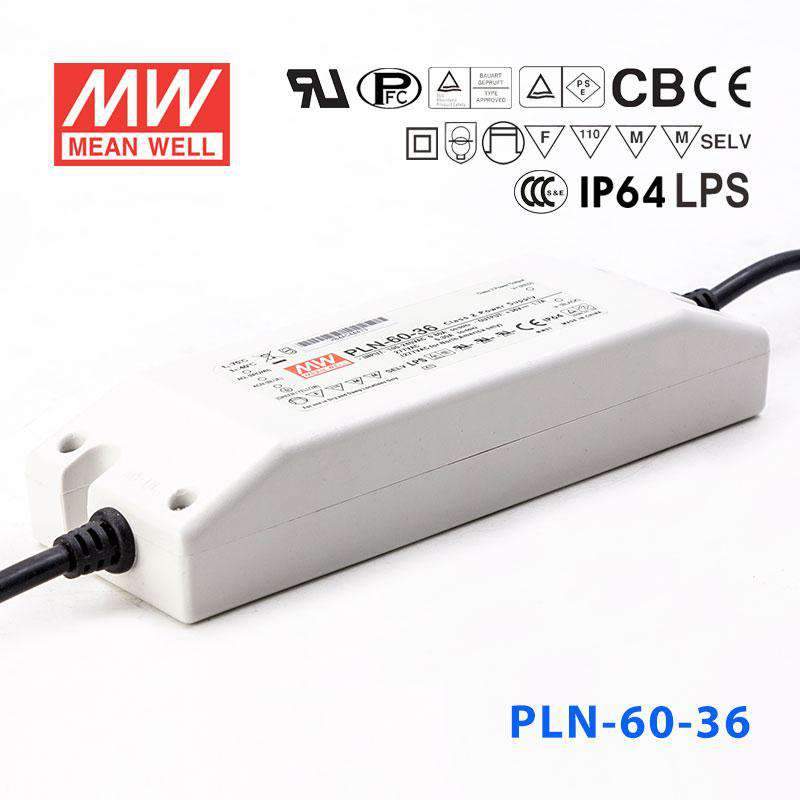

Mean Well PLN-60-36 Power Supply 60W 36V - IP64
The PLN-60 is a 60W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating61.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-60-36 for 36V LED signage lighting?
Yes, if the signage load is a constant-current LED system that operates within the 25-36V range. This driver supplies 36V nominal output, 1.7A, and up to 61.2W, so the sign modules need to stay within those limits.
Is the PLN-60-36 suitable for architectural linear lighting?
It is suitable for architectural or linear lighting fixtures built around constant-current LED engines in the 25-36V CC range. The output is regulated at 1.7A, so the light engine has to be designed for that current level.
Can the PLN-60-36 be used for display lighting or illuminated light boxes?
It can be used for display lighting or light-box applications when the LED load is a constant-current design within 25-36V. The 90-295VAC input range also helps in installations where supply voltage may vary across regions or sites.
How much 36V LED strip can the PLN-60-36 support?
Only use it with strip lighting that is specifically designed for constant-current 36V operation and stays within the 25-36V range. The maximum load is 61.2W, so estimated strip length = 61.2W divided by your strip's rated power per meter; check your strip rated power per meter before sizing.
Is the PLN-60-36 suitable for wet or outdoor environments?
The IP64 housing is appropriate for environments with dust exposure and splashing water, including protected outdoor or damp lighting enclosures. Its operating temperature range of -30°C to +50°C also supports use in cold and warm conditions, provided the application does not need a higher IP rating than IP64.
