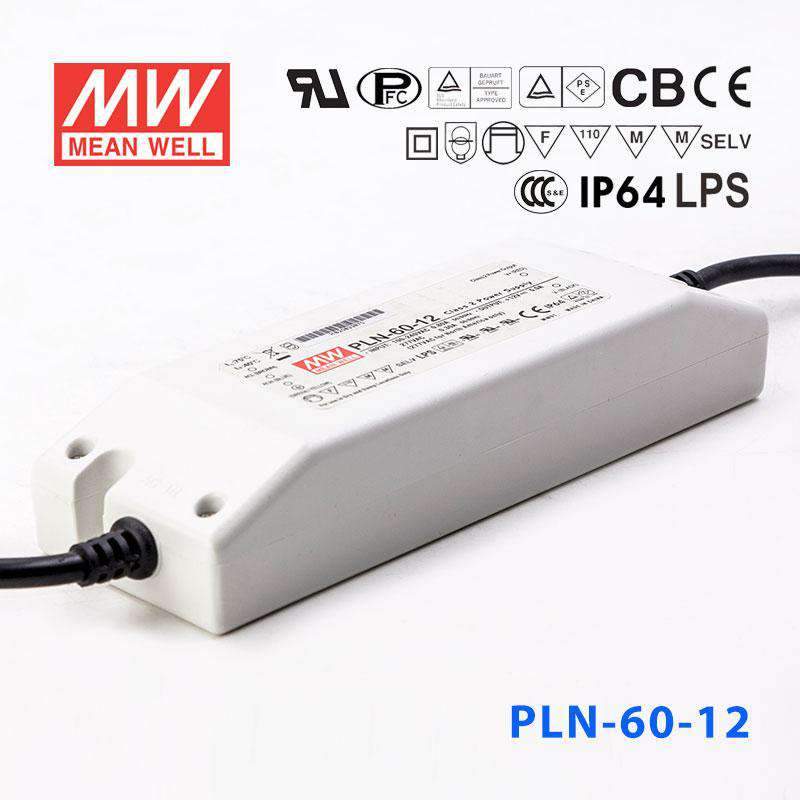

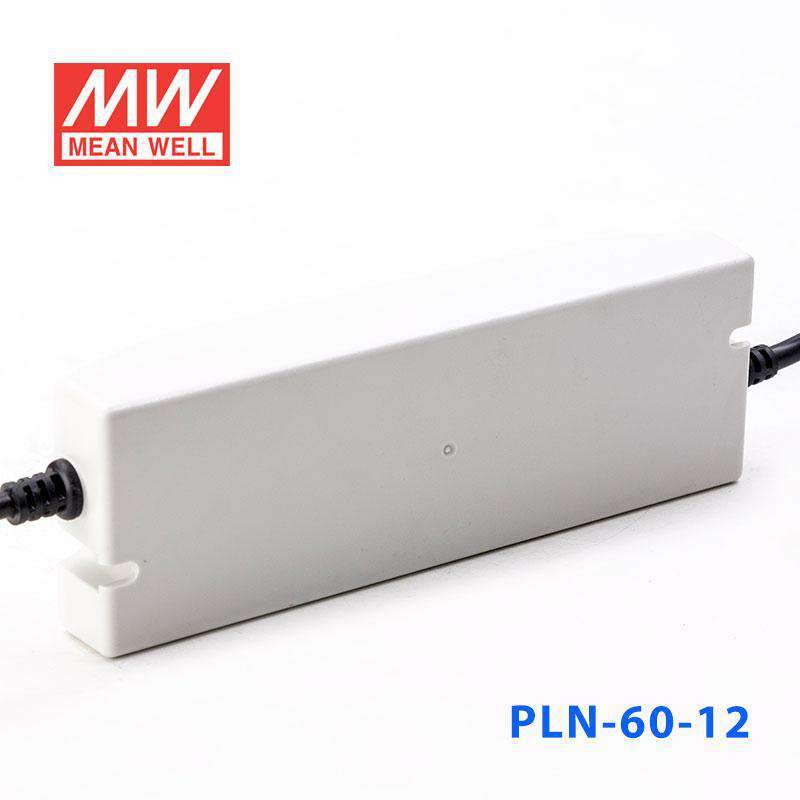

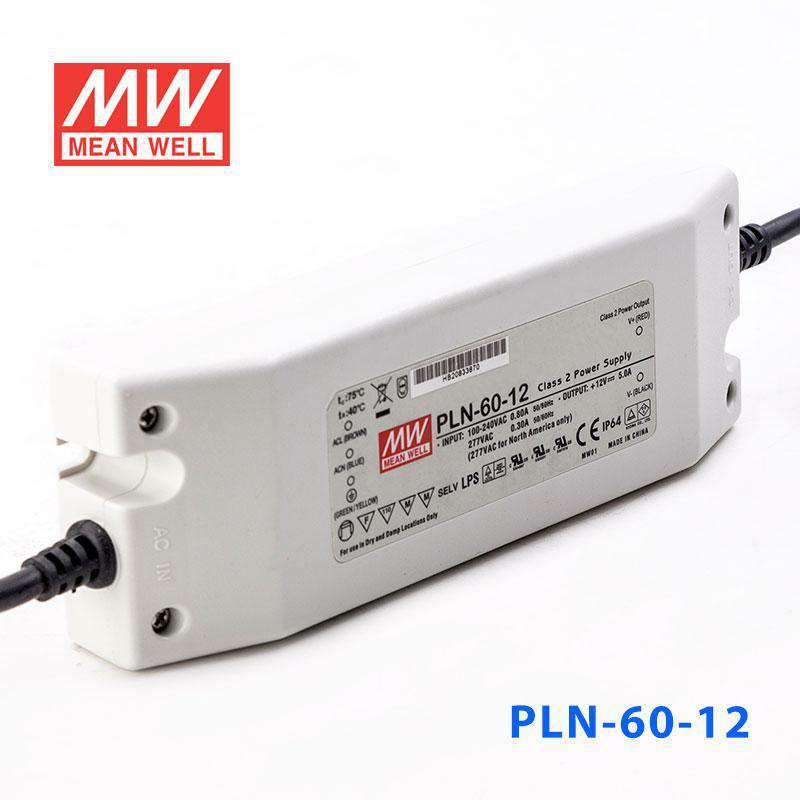

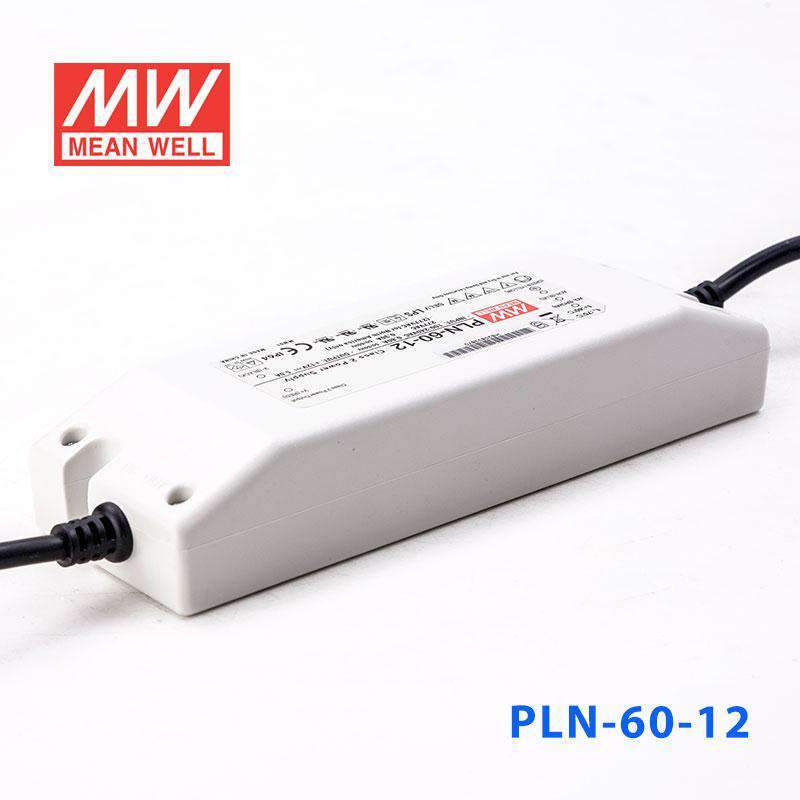

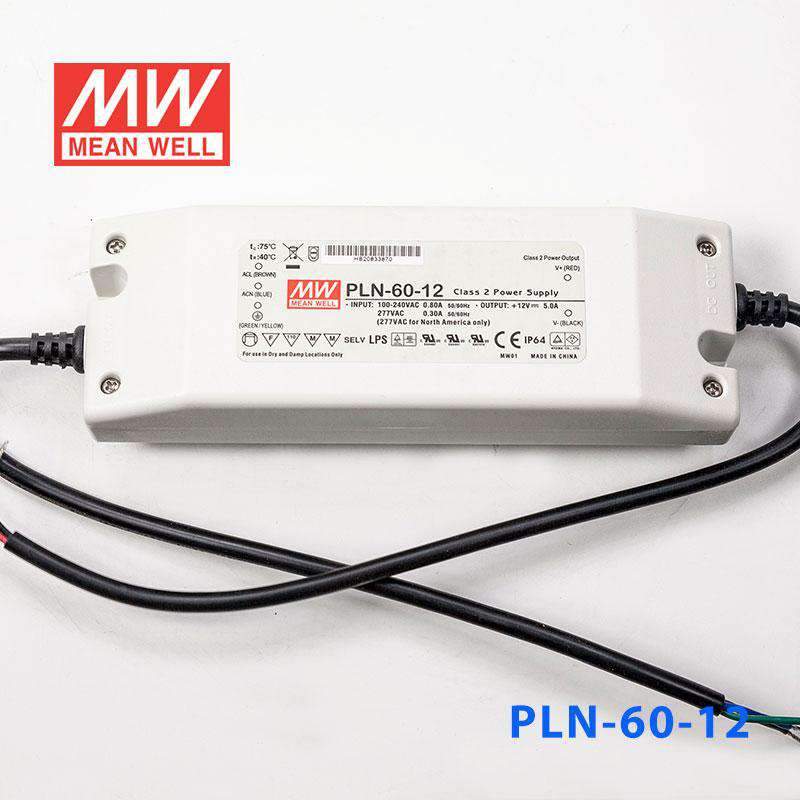

Mean Well PLN-60-12 Power Supply 60W 12V - IP64
The PLN-60 is a 60W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-60-12 for 12V LED strip lighting in signage?
Yes, for 12V signage lighting loads that stay within 60W and 5A. The product is specifically noted as suitable for signage applications and carries an IP64 enclosure rating.
Is the PLN-60-12 a good fit for 12V under-canopy or display lighting?
It can be a fit for 12V display or under-canopy lighting when the total load does not exceed 60W. Its IP64 housing is better suited to dust and splash exposure than a non-protected indoor driver.
Can this power 12V LED strip runs for retail shelving or cove lighting?
It can support 12V strip lighting as long as the combined load remains at or below 60W and 5A. For longer or higher-density runs, the deciding factor is the strip's actual wattage per meter.
How do I estimate the maximum 12V LED strip length for the PLN-60-12?
Use the strip wattage to calculate the limit: 60W ÷ strip watts per meter = maximum meters. Check your strip rated power per meter and keep the total connected load within 60W and 5A.
Is the PLN-60-12 suitable for outdoor or damp-area lighting?
The IP64 rating means it is designed to resist dust and splashing water, so it is more appropriate for damp or sheltered locations than an open indoor-only unit. It is also rated to operate from -30°C to +50°C, which helps in a wide range of ambient conditions.
