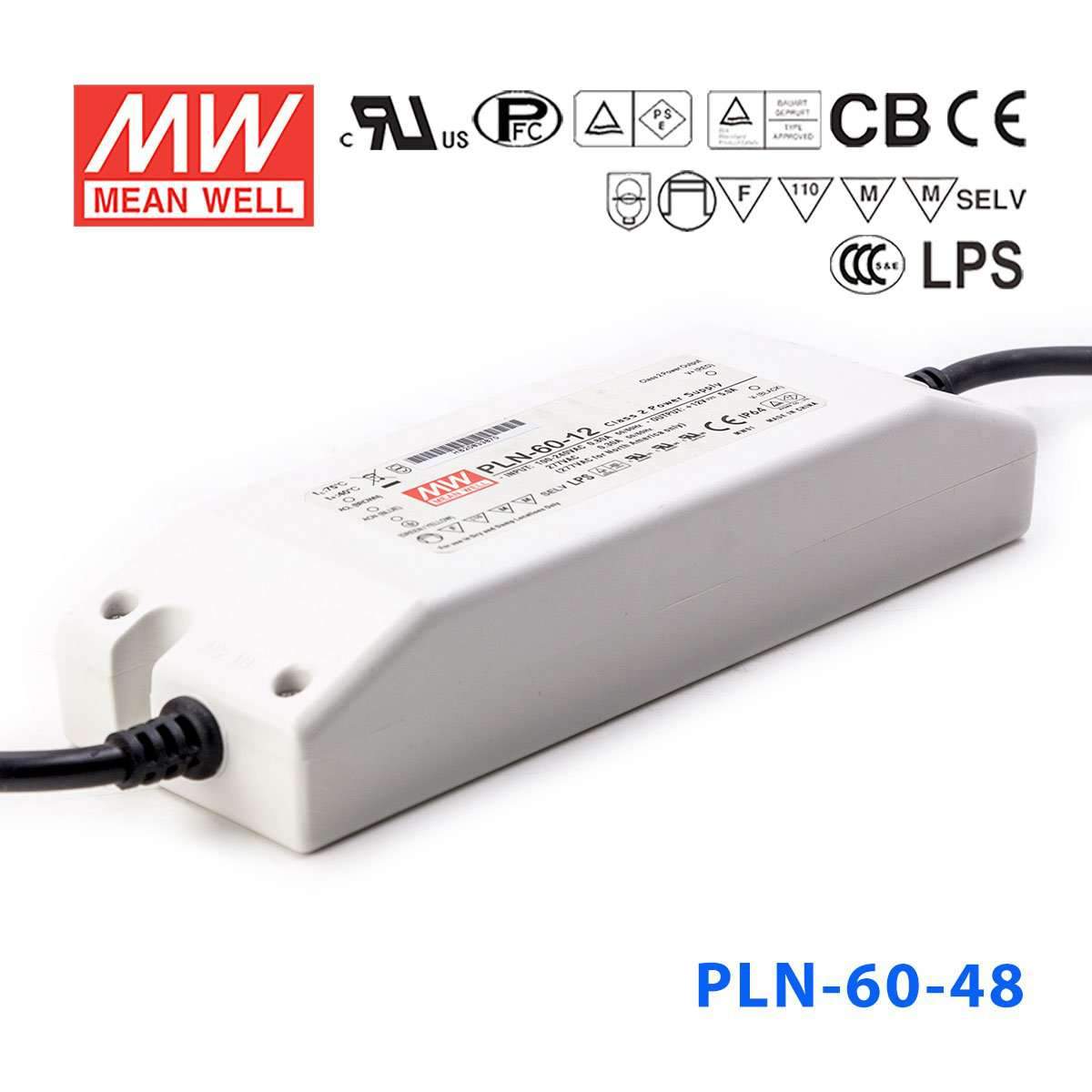

Mean Well PLN-60-48 Power Supply 60W 48V - IP64
The PLN-60 is a 60W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating62.4 Watt
-
Output Voltage48 Volt
-
Rated Current1.3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-60-48 for 48V LED signage systems?
Yes, when the signage system uses a constant-current LED load that operates within the 33-48V range. This driver provides 48V nominal output, 1.3A, and up to 62.4W, so the connected load needs to stay within that window.
Is the PLN-60-48 a fit for 48V linear or architectural lighting?
It can be a fit for linear or architectural lighting products built around constant-current LED engines in the 33-48V CC range. Because the output current is 1.3A, the fixture must be designed for that current requirement.
Can the PLN-60-48 be used for commercial display or backlighting applications?
It is suitable for commercial display or backlighting applications that use constant-current 48V-class LED assemblies within the 33-48V range. The wide 90-295VAC input range and fully isolated plastic case are useful in commercial lighting systems that need broad mains compatibility.
How do I estimate LED strip length for the PLN-60-48?
Only use it with strip lighting that is specifically designed for constant-current 48V operation and remains within the 33-48V range. The driver's maximum output is 62.4W, so estimated strip length = 62.4W divided by your strip's rated power per meter; check your strip rated power per meter before sizing.
Can the PLN-60-48 be used outdoors or in damp conditions?
Its IP64 rating means it is intended for dusty locations and exposure to splashing water, such as protected outdoor lighting enclosures or sign housings. It is not intended for immersion or applications that require a water rating above IP64.
