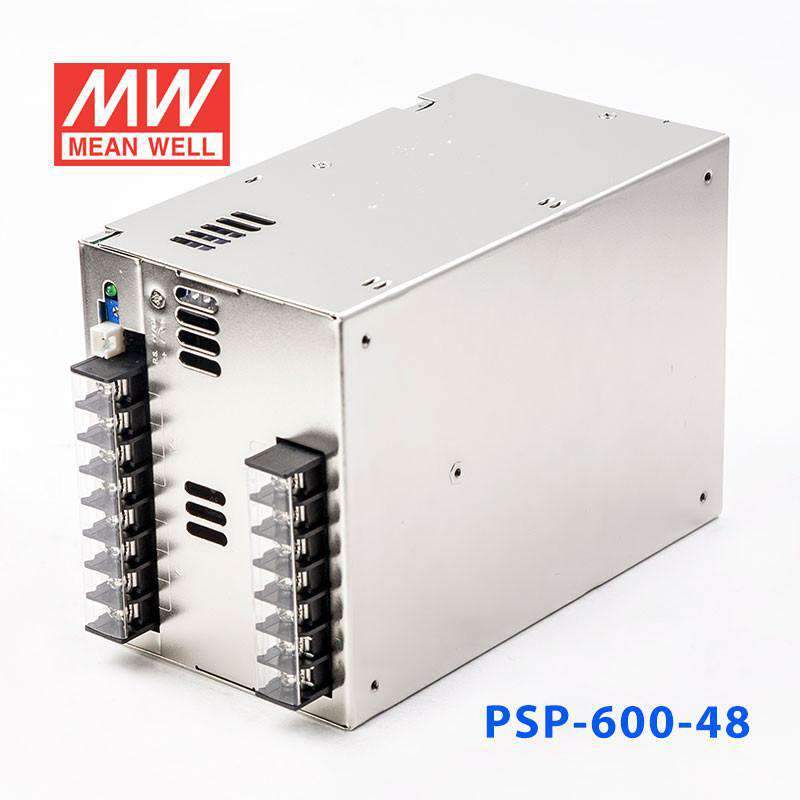

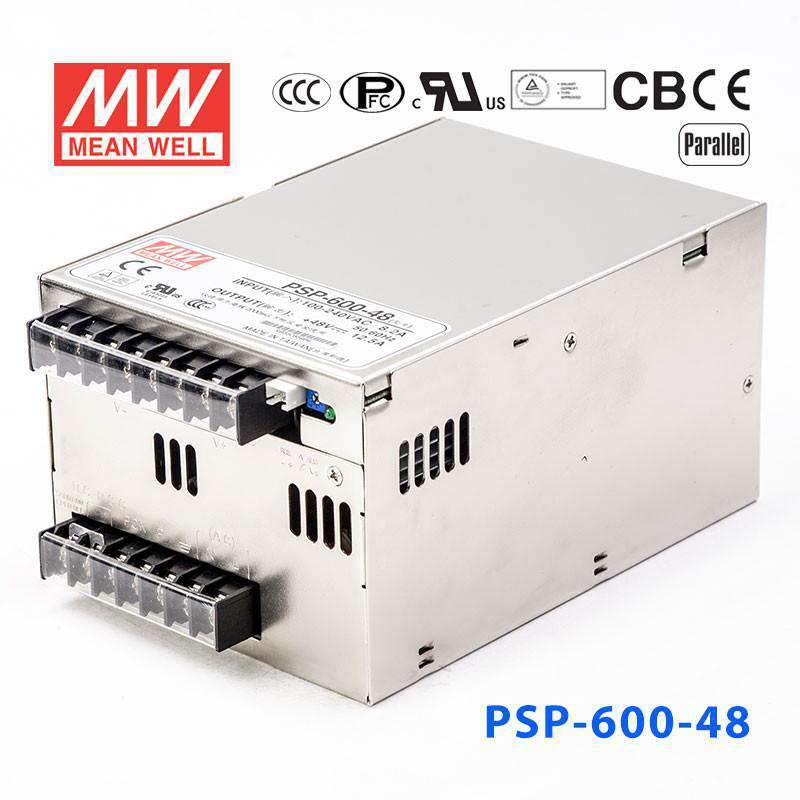

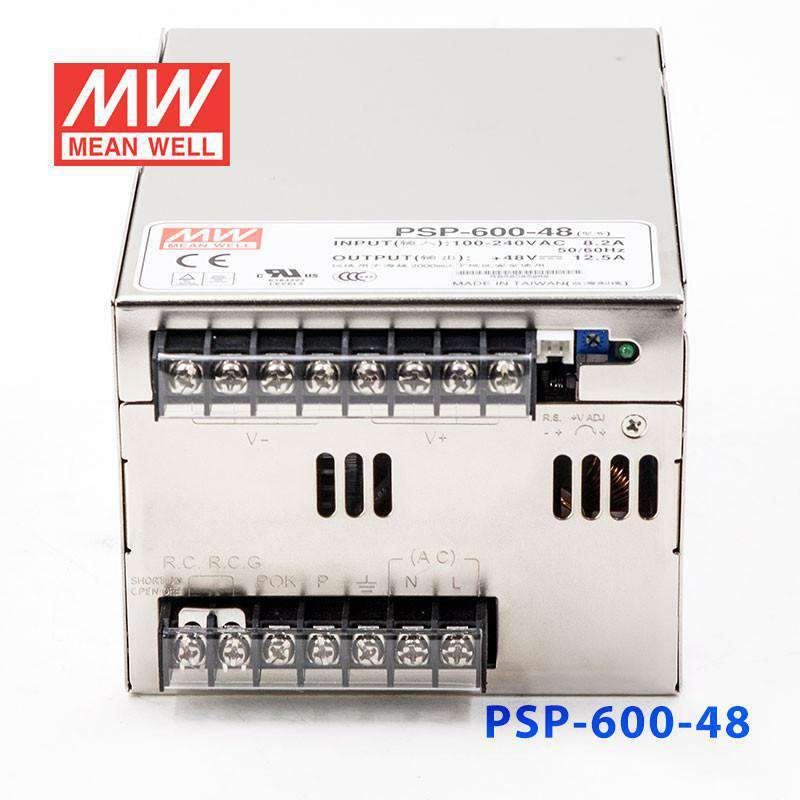

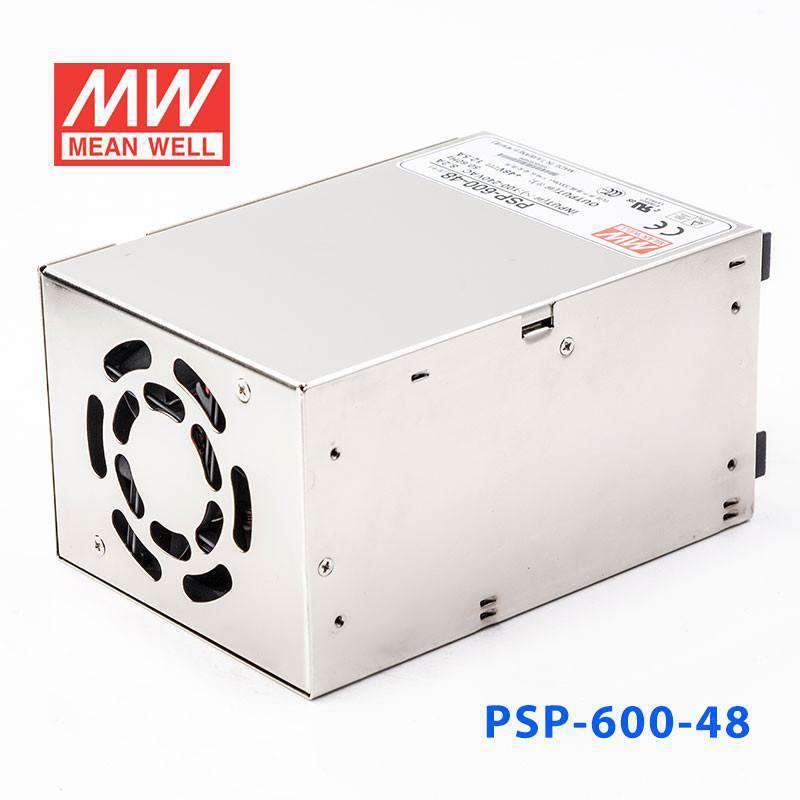

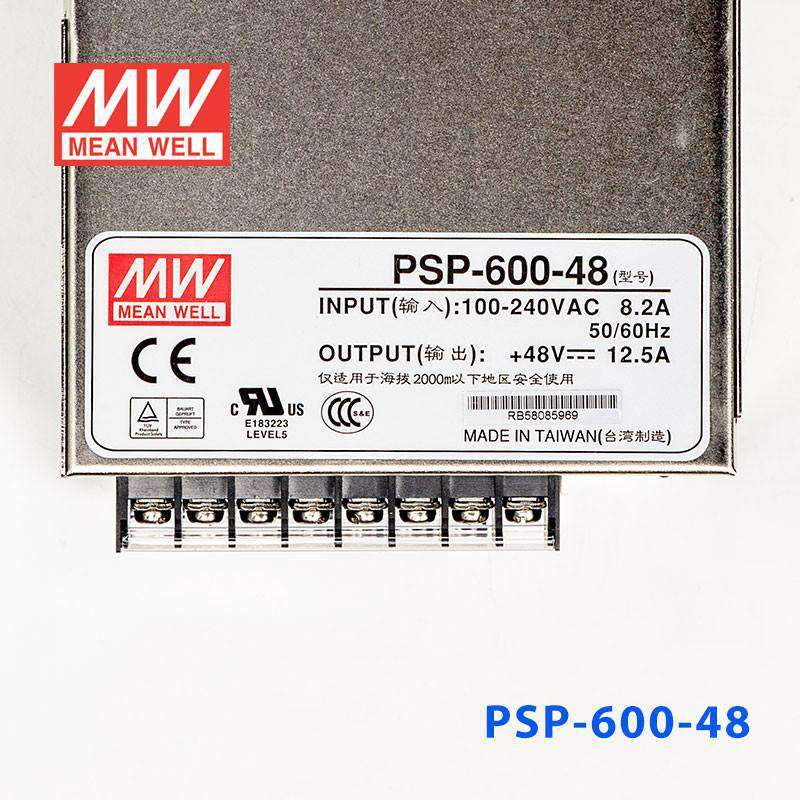

Mean Well PSP-600-48 Power Supply 600W 48V
The PSP-600 is a 600W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, CCC GB4943.1 BSMI CNS14336-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current12.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length6.69 in
-
Width4.72 in
-
Height3.66 in
-
Weight4.19 lb
::specification::
Frequently Asked Questions
Can I use the PSP-600-48 for 48V telecom or network equipment?
Yes, if the equipment is designed for a constant 48V DC source. This unit provides 600W at 48V with up to 12.5A, which suits 48V telecom, networking, or control loads that stay within those limits.
Is the PSP-600-48 suitable for 48V industrial control and embedded systems?
It is suitable when the system requires regulated 48V DC and the total demand is no more than 12.5A or 600W. The constant voltage design is intended for equipment that expects a fixed 48V supply.
Can this model support a centralized 48V DC power rail for multiple loads?
Yes, as long as the combined 48V load does not exceed 600W and 12.5A. For larger systems, the feature set includes current sharing up to 2400W (3+1).
Is the PSP-600-48 appropriate for outdoor or unsealed locations?
The specs state an operating temperature range of -20°C to +60°C, which defines thermal operation. The provided data does not list an IP rating, so outdoor or unsealed use should not be assumed from the published specs alone.
How does the PSP-600-48 compare with other PSP series outputs?
The sibling list includes PSP-1000-24 at 1000W, 24V, 37.6A; PSP-1500-24 at 1500W, 24V, 56.4A; PSP-500-13.5 at 499.5W, 13.5V, 37A; PSP-500-15 at 495W, 15V, 33A; PSP-500-24 at 499.2W, 24V, 20.8A; and PSP-500-27 at 499.5W, 27V, 18.5A. The other 600 series models are PSP-600-12 at 600W, 12V, 50A; PSP-600-13.5 at 600.75W, 13.5V, 44.5A; PSP-600-15 at 600W, 15V, 40A; PSP-600-24 at 600W, 24V, 25A; PSP-600-27 at 599.4W, 27V, 22.2A; and PSP-600-5 at 400W, 5V, 80A.
