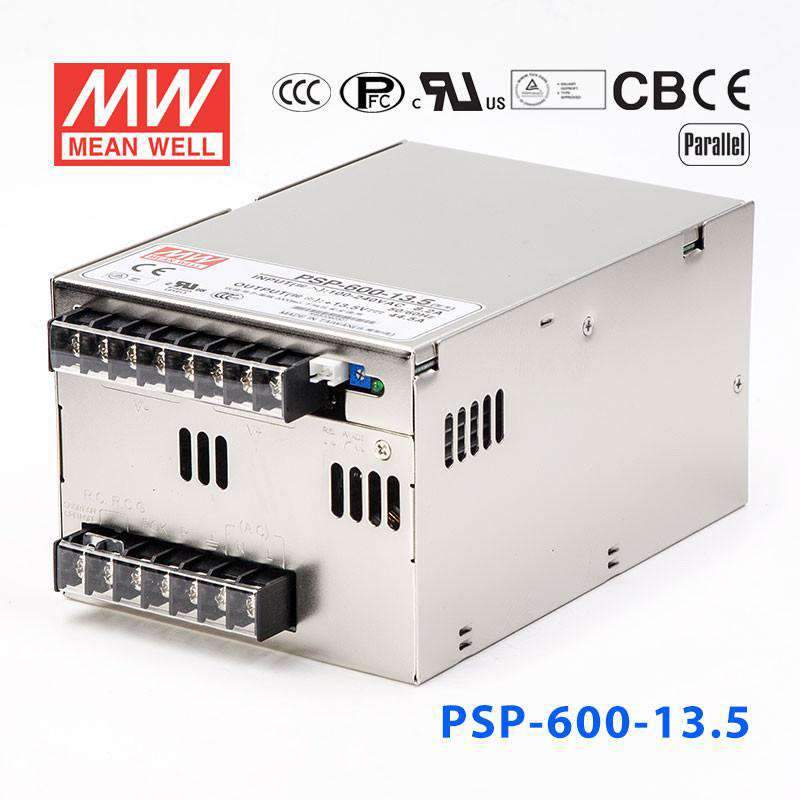

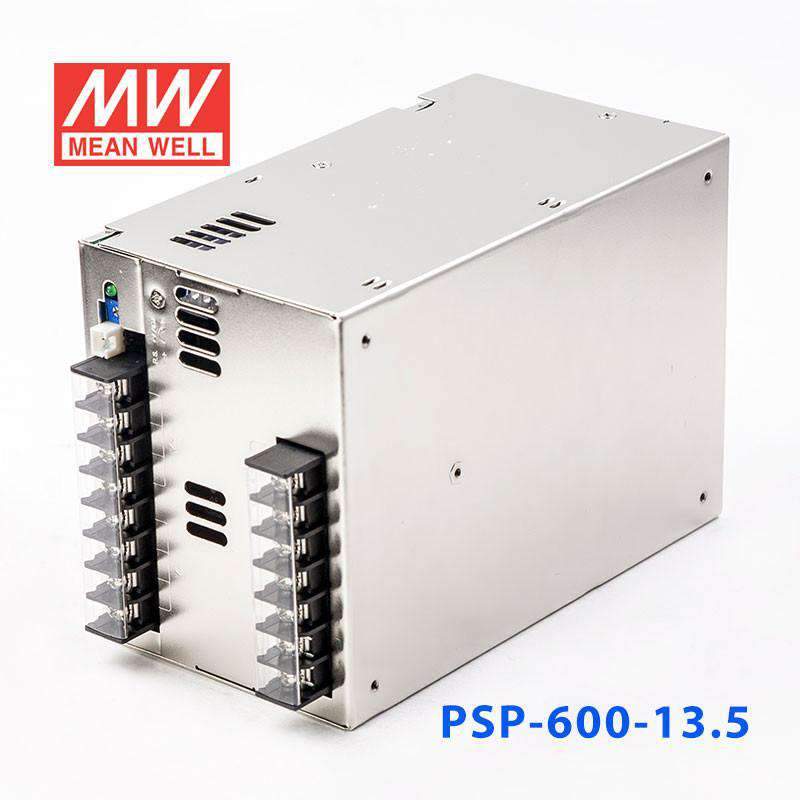

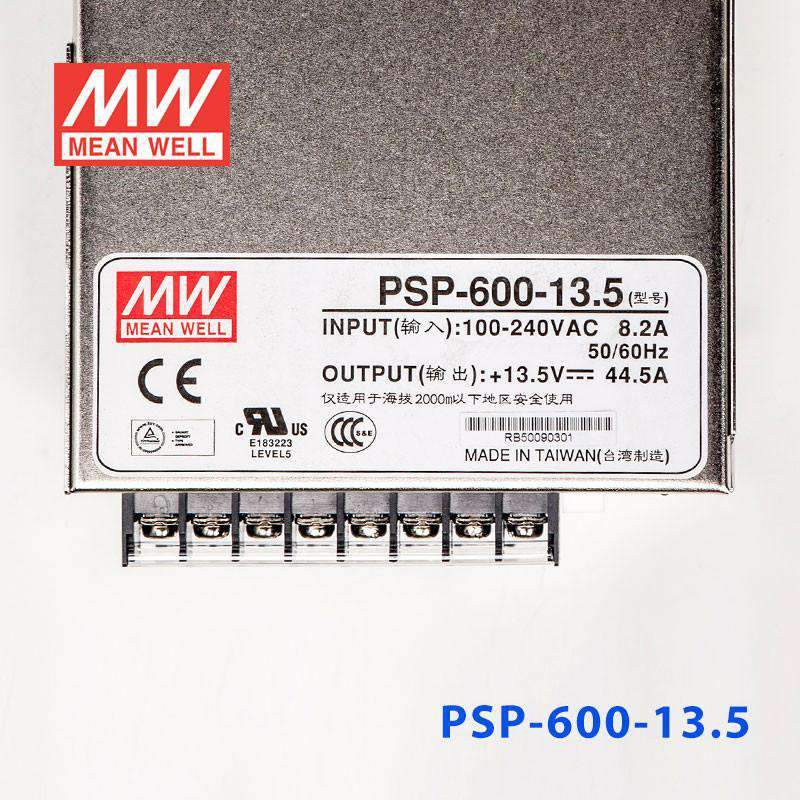

Mean Well PSP-600-13.5 Power Supply 600W 13.5V 44.5A

built-in active PFCcurrent sharing up to 2400W(3+1)
SKU PSP-600-13.5
$156.98 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

PSP-600-13.5 is the 13.5V output model of this series: rated current 44.5A, rated power 600.75W, typical efficiency 85%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage / Over temperature

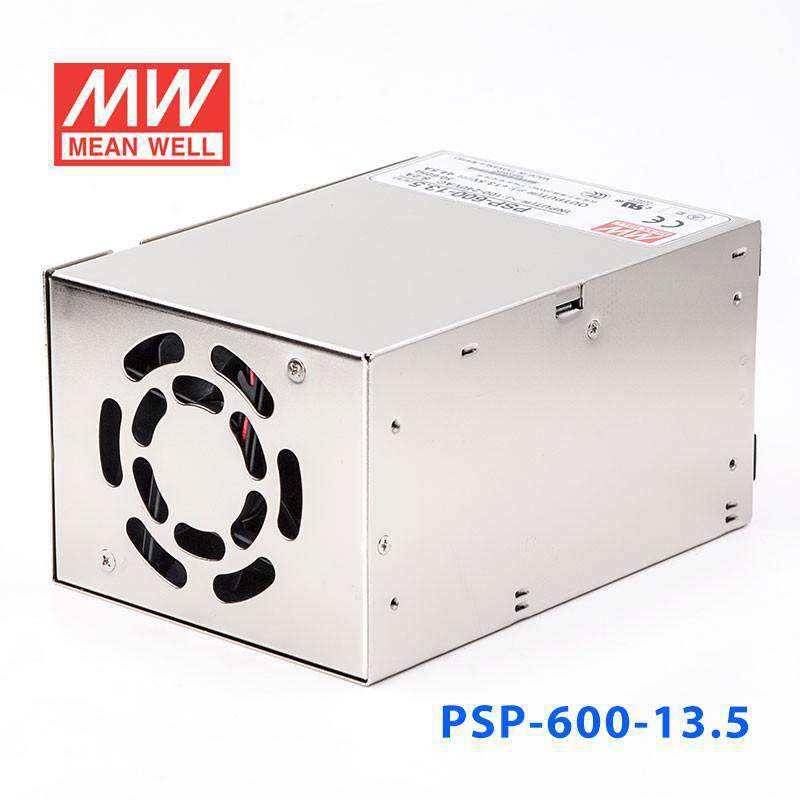

  • Forced air cooling by built-in DC fan
  • With DC OK Signal output
  • Current sharing up to 2400W(3+1)
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • Fixed switching frequency at PFC:88KHz PWM:100KHz
  • Operating altitude up to 3000 meters (Note.6)
  • 3 years warranty

Specifications

PSP-600-13.5Specifications from the official datasheet (2024-12-23 edition)

OUTPUT

DC VOLTAGE
13.5V
RATED CURRENT
44.5A
CURRENT RANGE
0 ~ 44.5A
RATED POWER
600.75W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
12 ~ 15V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1500ms, 50ms at full load
HOLD UP TIME (Typ.)
20ms at full load

INPUT

VOLTAGE RANGENote.5
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
0.95/230VAC 0.99/115VAC at full load
EFFICIENCY(Typ.)
85%
AC CURRENT (Typ.)
6.8A/115VAC 3.4A/230VAC
INRUSH CURRENT (Typ.)
20A/115VAC 40A/230VAC
LEAKAGE CURRENT
<1.3mA/240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
15.5 ~ 18.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

FUNCTION

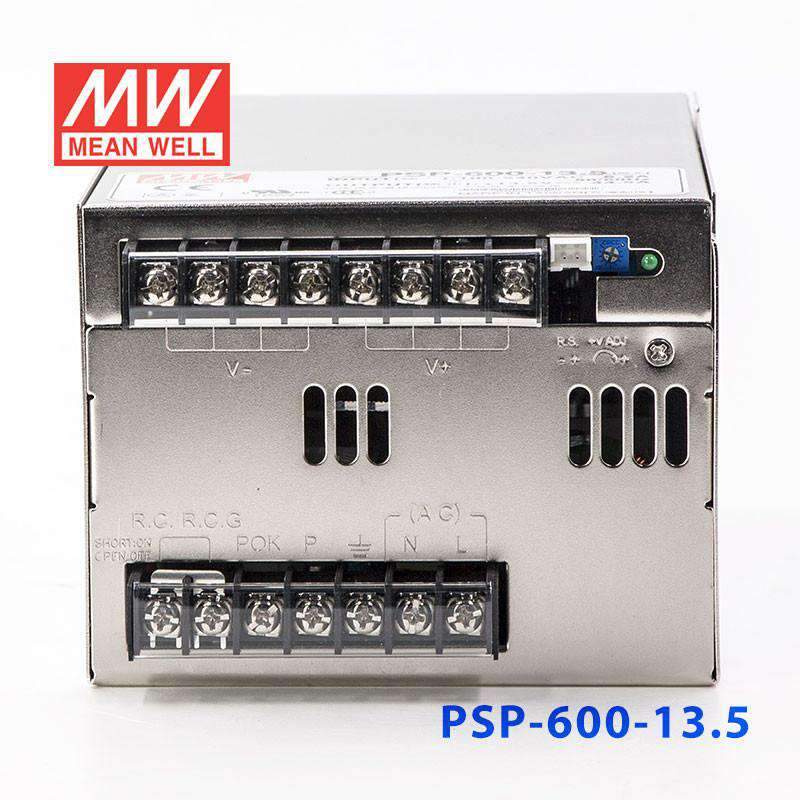

REMOTE CONTROL
RC+/RC-: Short = power on ; Open = power off
POK SIGNAL
PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS15936, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1132.9K hrs min. Telcordia SR-332 (Bellcore) ; 142.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
170*120*93mm (L*W*H)
PACKING
1.9Kg; 8pcs/15.5Kg/1.00CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The operating altitude is 2000 meters for CCC, 3000 meters for UL,TUV. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m (6500ft).

Technical drawings

PSP-600-13.5 Mechanical Specification
Mechanical Specification
PSP-600-13.5 Block Diagram
Block Diagram
PSP-600-13.5 Derating Curve
Derating Curve
PSP-600-13.5 Control Terminal Instruction Manual
Control Terminal Instruction Manual

Downloads

FAQ

Can I use the PSP-600-13.5 for a 13.5V communications or control cabinet?

Yes, if the cabinet equipment is designed for a constant 13.5V DC source. This model provides 600.75W at 13.5V with up to 44.5A, which suits higher-current 13.5V industrial or communications loads that stay within those limits.

Is the PSP-600-13.5 suitable for 13.5V embedded or industrial electronics that need high current?

It can be, provided the system requires regulated 13.5V DC and the total load does not exceed 44.5A or 600.75W. Because it is a constant voltage power supply, it is intended for equipment that expects a fixed 13.5V output.

Can this power supply support a 13.5V DC distribution load in automation equipment?

Yes, for automation or control equipment built around 13.5V DC input. Its 600.75W output and 44.5A capacity make it appropriate for larger 13.5V loads where a constant voltage supply is required.

Is the PSP-600-13.5 rated for outdoor or harsh-environment use?

The listed specs show an operating temperature range of -20°C to +60°C, but they do not list an IP rating. That means temperature capability is defined, but outdoor or washdown suitability should not be assumed from the provided specs alone.

How does the PSP-600-13.5 compare with other PSP series models?

The other PSP-600 series models on the same sheet are PSP-600-12 at 600W, 12V, 50A; PSP-600-15 at 600W, 15V, 40A; PSP-600-24 at 600W, 24V, 25A; PSP-600-27 at 599.4W, 27V, 22.2A; PSP-600-48 at 600W, 48V, 12.5A; and PSP-600-5 at 400W, 5V, 80A. The PSP-600-13.5 is 600.75W at 13.5V with 44.5A.
