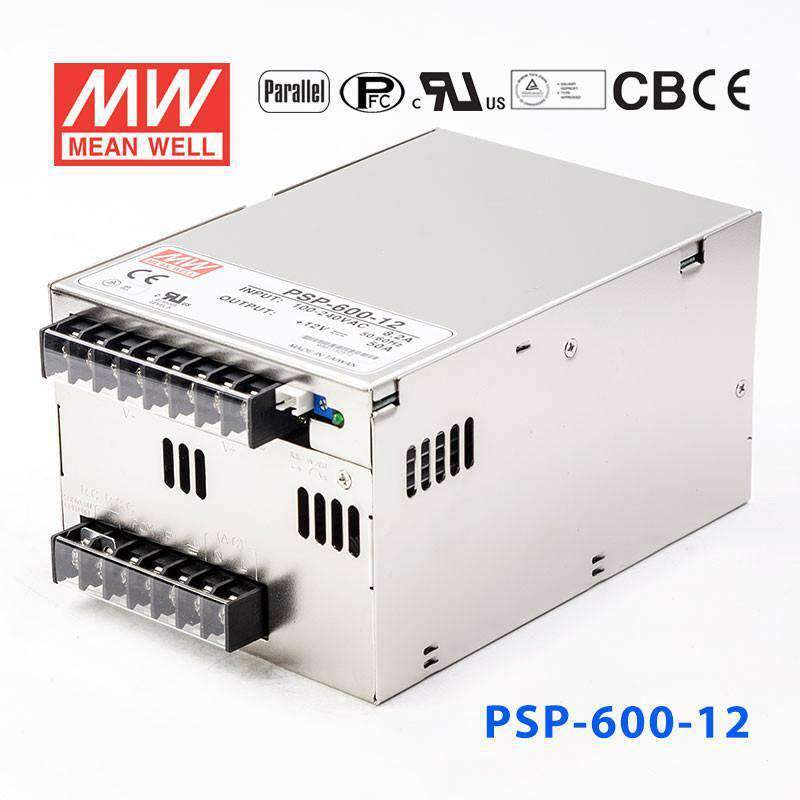

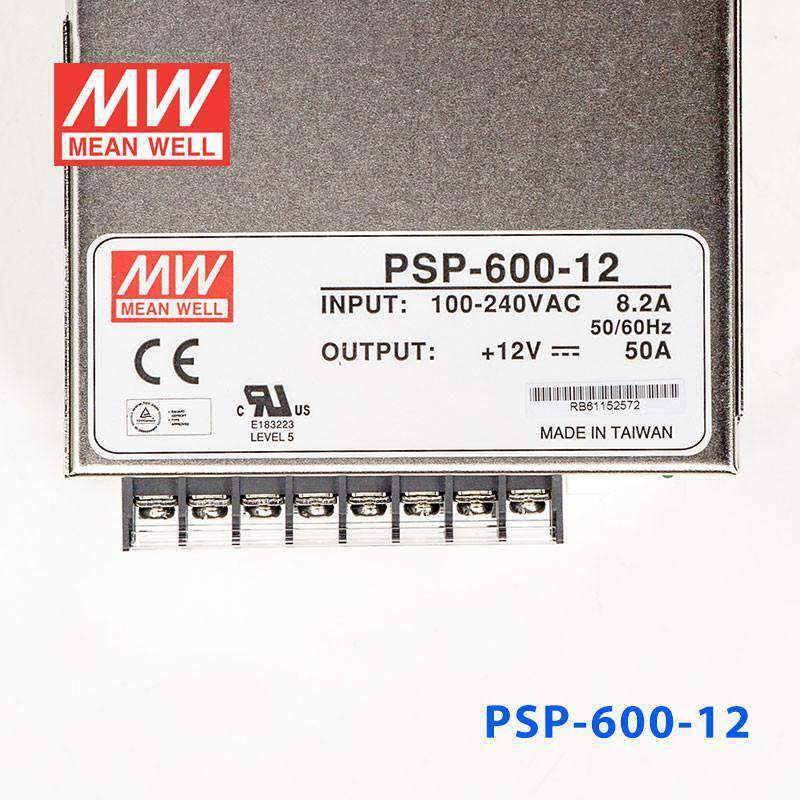

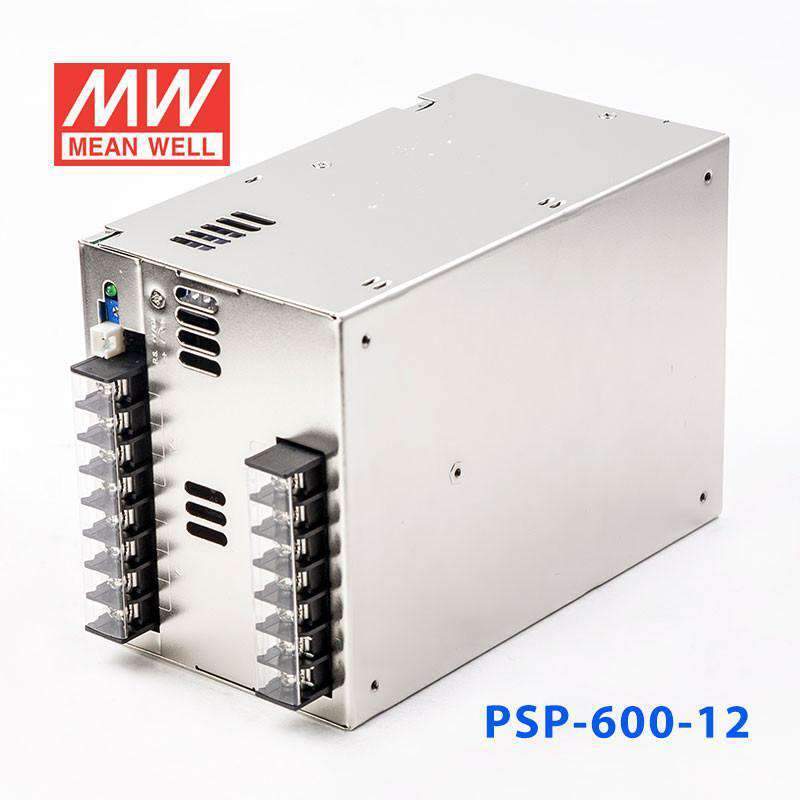

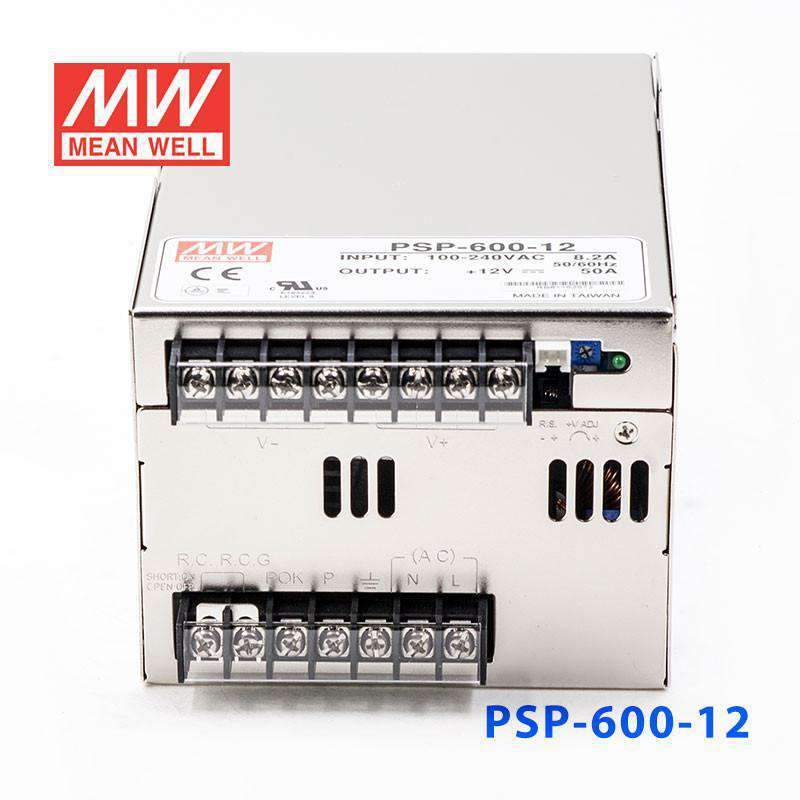

Mean Well PSP-600-12 Power Supply 600W 12V 50A
Overview
PSP-600-12 is the 12V output model of this series: rated current 50A, rated power 600W, typical efficiency 84%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature

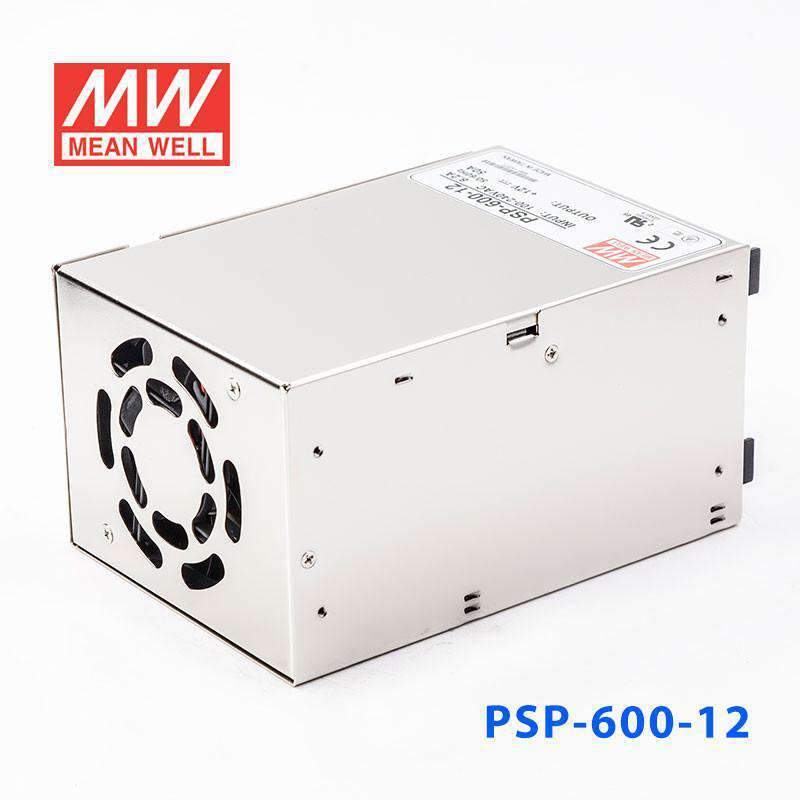

- Forced air cooling by built-in DC fan
- With DC OK Signal output
- Current sharing up to 2400W(3+1)
- Built-in remote ON-OFF control
- Built-in remote sense function
- Fixed switching frequency at PFC:88KHz PWM:100KHz
- Operating altitude up to 3000 meters (Note.6)
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 50A
- CURRENT RANGE
- 0 ~ 50A
- RATED POWER
- 600W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ADJ. RANGE
- 10 ~ 13.2V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1500ms, 50ms at full load
- HOLD UP TIME (Typ.)
- 20ms at full load
INPUT
- VOLTAGE RANGENote.5
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.95/230VAC 0.99/115VAC at full load
- EFFICIENCY(Typ.)
- 84%
- AC CURRENT (Typ.)
- 6.8A/115VAC 3.4A/230VAC
- INRUSH CURRENT (Typ.)
- 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <1.3mA/240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
FUNCTION
- REMOTE CONTROL
- RC+/RC-: Short = power on ; Open = power off
- POK SIGNAL
- PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS15936, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 1132.9K hrs min. Telcordia SR-332 (Bellcore) ; 142.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 170*120*93mm (L*W*H)
- PACKING
- 1.9Kg; 8pcs/15.5Kg/1.00CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The operating altitude is 2000 meters for CCC, 3000 meters for UL,TUV. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m (6500ft).
Technical drawings
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can the PSP-600-12 power a 12V industrial control panel or automation cabinet?
Yes, this is a constant-voltage 12V power supply rated for 600W and up to 50A output current. Its wide 88-264VAC input range makes it suitable for AC-powered equipment that needs a high-current 12V rail.
Is the PSP-600-12 suitable for 12V loads in IT or communications equipment?
It can support 12V systems that require a substantial current budget, with output rated at 50A and 600W. The built-in active PFC also makes it part of an AC-input power supply design intended for broad input conditions from 88VAC to 264VAC.
Can I use the PSP-600-12 for a centralized 12V DC bus in embedded or industrial equipment?
Yes, it is designed as a 12V constant-voltage supply and can deliver up to 50A. For higher-capacity systems, up to 4 units can be paralleled, with total output current limited to 50A x number of units x 0.9 (180A with 4 units).
Is the PSP-600-12 intended for outdoor use or exposed environments?
The specified operating temperature range is -20°C to +60°C, but no IP rating is provided in the supplied specs. Based on that information, the page confirms temperature range but does not confirm outdoor or sealed-enclosure protection.
How does the PSP-600-12 compare with other PSP-600 models?
Within the PSP-600 family, the listed variants are PSP-600-13.5 at 600.75W and 44.5A, PSP-600-15 at 600W and 40A, PSP-600-24 at 600W and 25A, PSP-600-27 at 599.4W and 22.2A, PSP-600-48 at 600W and 12.5A, and PSP-600-5 at 400W and 80A. This PSP-600-12 version is 600W at 12V with 50A output.
