Description
Description
Features
Universal AC input / Full range |
Built-in active PFC function |
Protections: Short circuit / Overload / Over voltage / Over temperature |

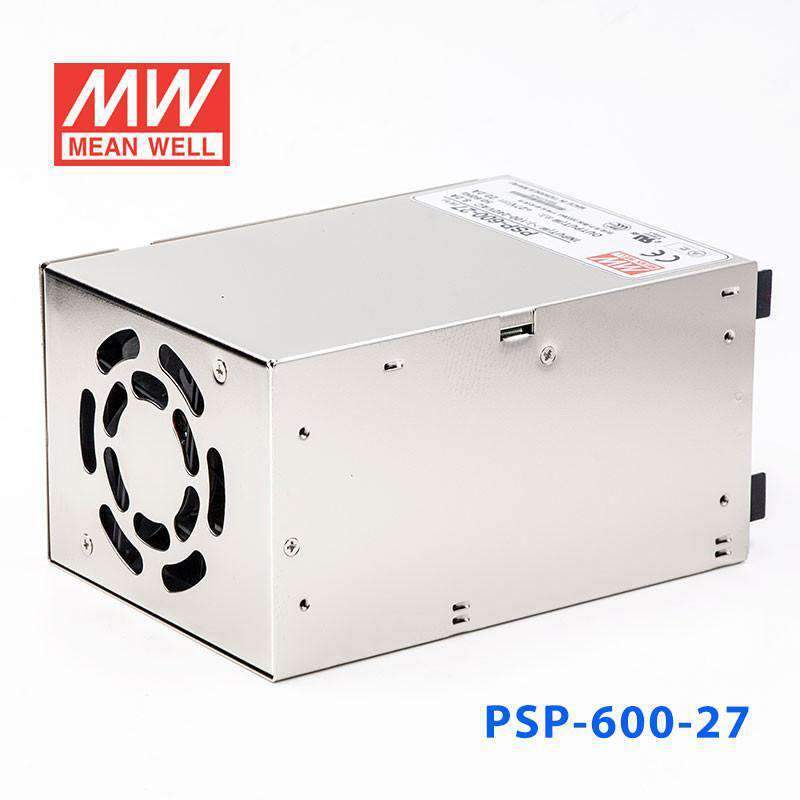

Forced air cooling by built-in DC fan |
Built-in remote sense function and ON/OFF control |
Current sharing up to 2400W (3+1) |
With DC OK signal output |
100% full load burn-in test |
3 years warranty |
General Specification
AC input voltage range | 88~264VAC |
AC inrush current (max.) | Cold start, 40A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~135% |
Overload protection Type | Constant current limiting, auto-recovery |
Over voltage protection | 115%~140% |
Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute |
Working temperature | -20~+60°C |
Safety standards | UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V) |
EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |

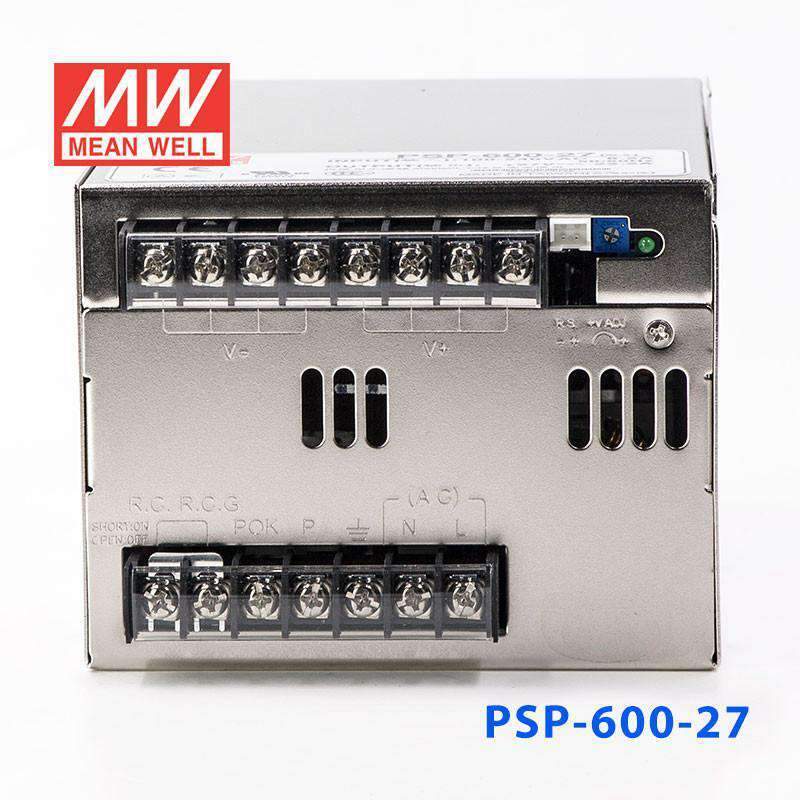

Connection | 7+8P / 9.5mm pitch terminal block with cover |
Dimension (LxWxH) | 170x120x93 |
Case No. | 910A |
Packing | 8pcs / 15.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating599.4 Watt
-
Output Voltage27 Volt
-
Rated Current22.2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length6.69 in
-
Width4.72 in
-
Height3.66 in
-
Weight4.19 lb
