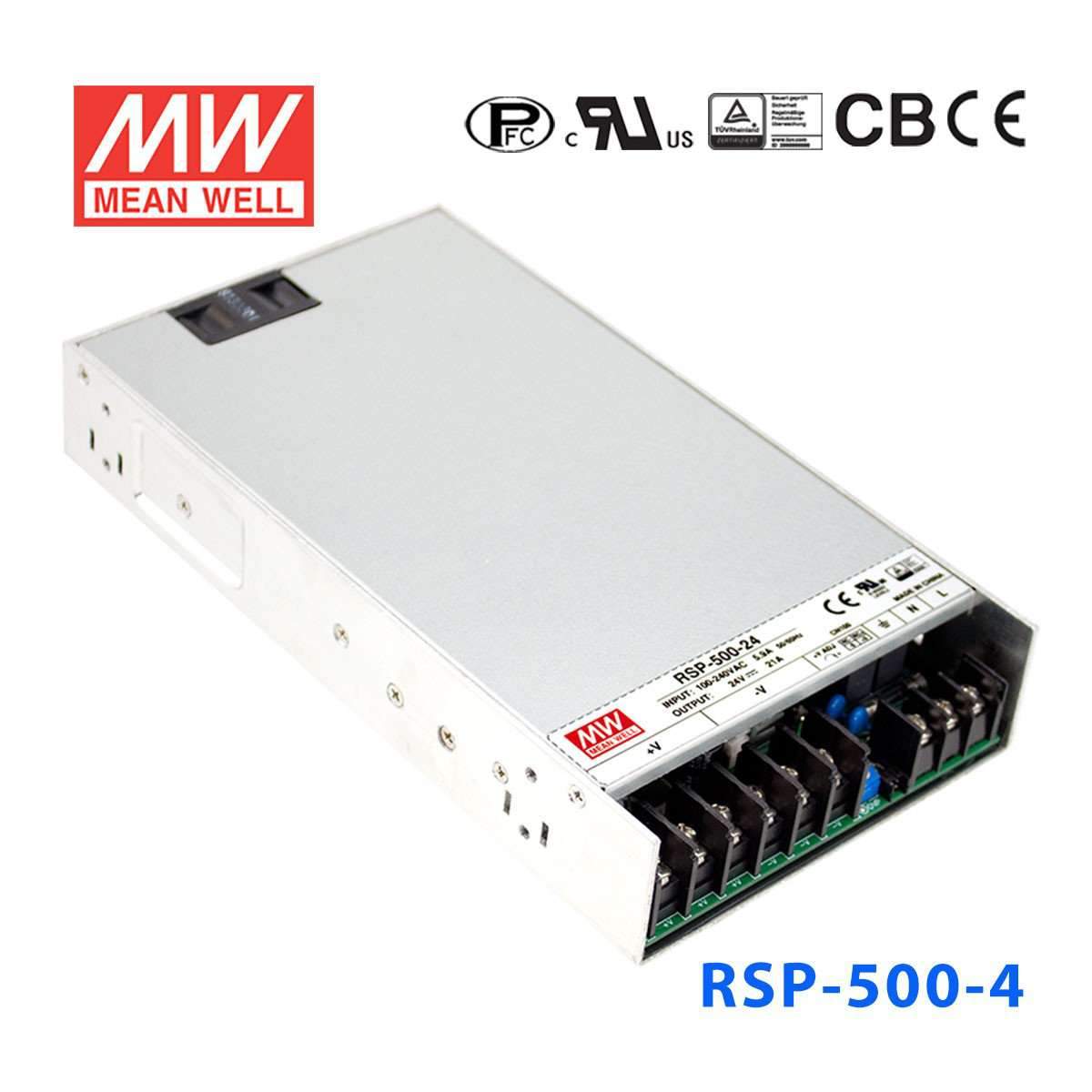

Mean Well RSP-500-4 Power Supply 360W 4V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating360 Watt
-
Output Voltage4 Volt
-
Rated Current90 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is a typical application for a 4V, 90A power supply?
The RSP-500-4 delivers 4V at 90A (360W), used for powering low-voltage bus converters, telecom processing board power rails, and certain embedded computing subsystems that specify a regulated 4V source with high current capacity.
What is the cold-temperature limit of the RSP-500-4?
The RSP-500-4 operates down to -30°C ambient, with an upper limit of +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is rated for indoor enclosed use.
How does the RSP-500-4 compare to the RSP-500-3.3 and RSP-500-5?
All three share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-3.3 provides 297W at 90A, the RSP-500-4 provides 360W at 90A, and the RSP-500-5 provides 450W at 90A. Current output is identical across the three; power scales with voltage.
What is the actual rated power of the RSP-500-4?
The RSP-500-4 is rated at 360W (4V × 90A). It includes built-in active PFC and weighs 1.3 kg. A 3-year warranty is included.
