Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

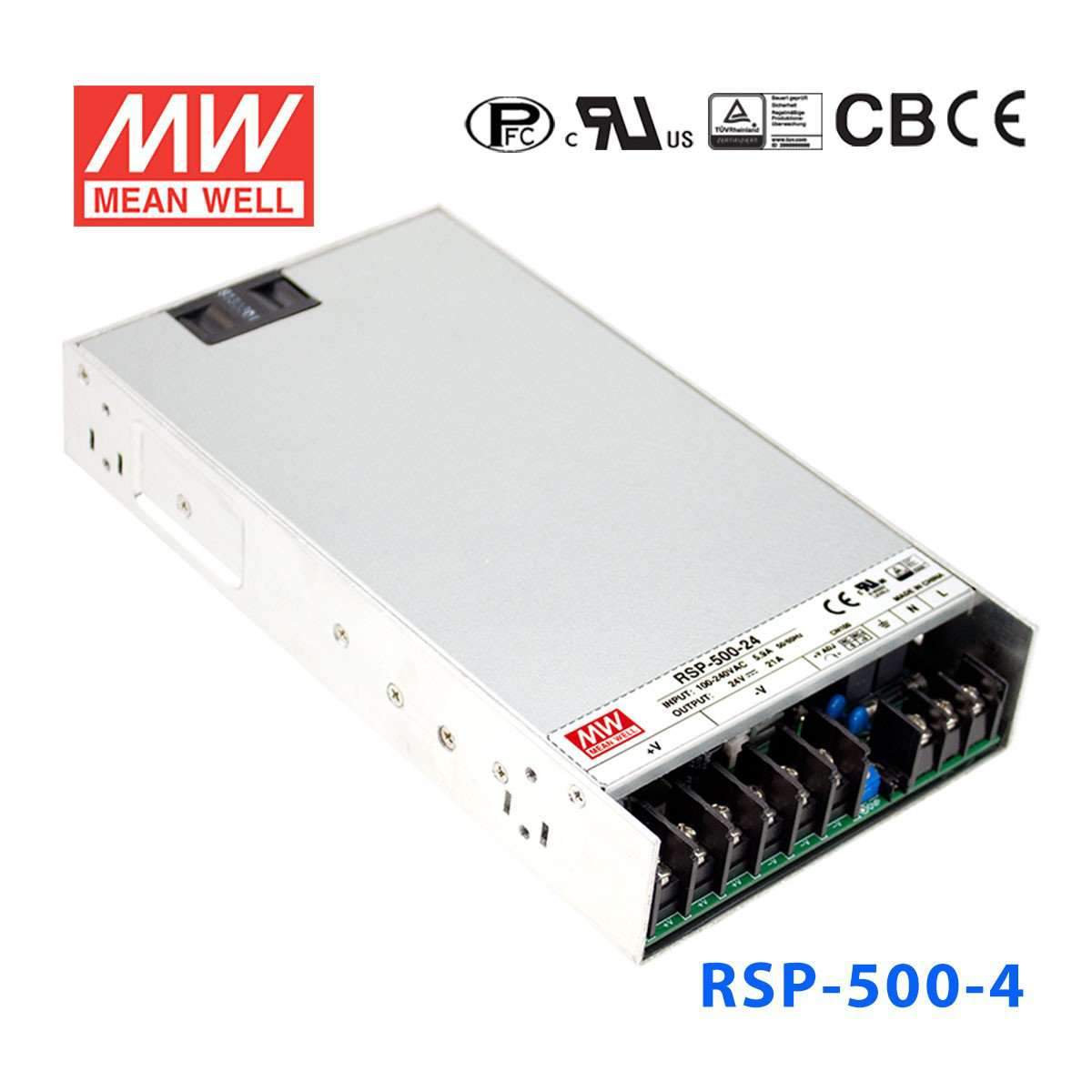

Mean Well RSP-500-4 Power Supply 360W 4V

1U low profile with active PFC, high efficiency

SKU:

RSP-500-4

$106.80 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

1U low profile

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

LED indicator for power on

Built-in remote sense and ON/OFF control

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~130%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection Range	115%~145%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500)
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
Connection Input	3P / 9.5mm pitch terminal block
Connection Output	6P / 11mm pitch terminal block
Dimension (LxWxH)	230x127x40.5
Case No.	226A

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

360 Watt
Output Voltage

4 Volt
Rated Current

90 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9.06 in
Width

5 in
Height

1.59 in
Weight

2.87 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is a typical application for a 4V, 90A power supply?

The RSP-500-4 delivers 4V at 90A (360W), used for powering low-voltage bus converters, telecom processing board power rails, and certain embedded computing subsystems that specify a regulated 4V source with high current capacity.

What is the cold-temperature limit of the RSP-500-4?

The RSP-500-4 operates down to -30°C ambient, with an upper limit of +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is rated for indoor enclosed use.

How does the RSP-500-4 compare to the RSP-500-3.3 and RSP-500-5?

All three share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-3.3 provides 297W at 90A, the RSP-500-4 provides 360W at 90A, and the RSP-500-5 provides 450W at 90A. Current output is identical across the three; power scales with voltage.

What is the actual rated power of the RSP-500-4?

The RSP-500-4 is rated at 360W (4V × 90A). It includes built-in active PFC and weighs 1.3 kg. A 3-year warranty is included.
