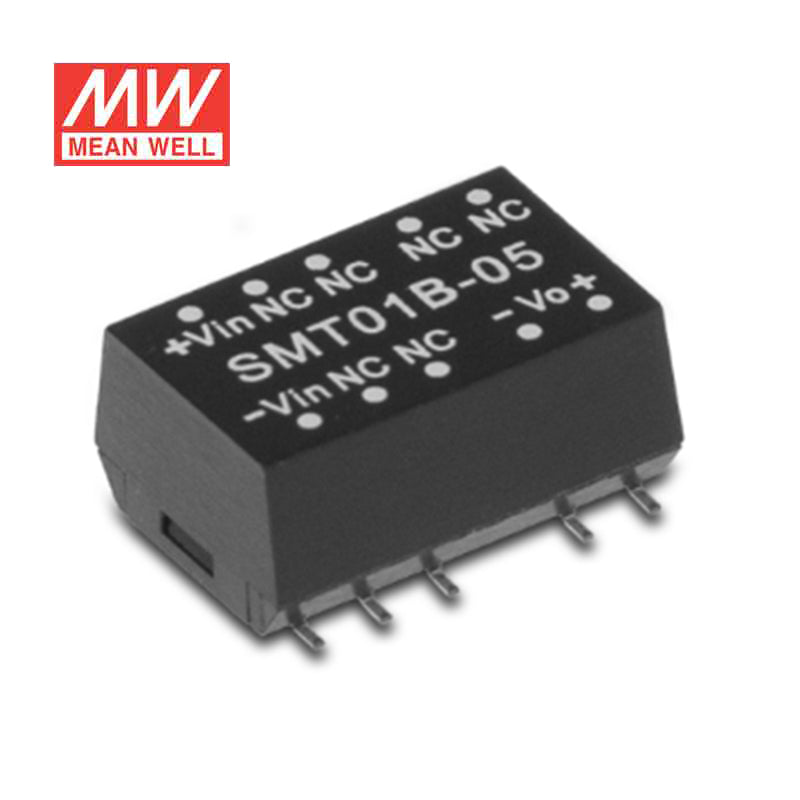

Mean Well SMT01B-05 DC-DC Converter - 1W - 18~36V in 5V out
The SMT01B is a 1W Mean Well power converter (input range: 9~18Vdc).
Key Features
- ✓ Input voltage range: 9~18Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSMT Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.6 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SMT01B-05 to derive 5V logic power from a 24V-class control supply?
This model is designed for a listed input range of 18-36VAC and provides a 5V constant-voltage output. With a 1W rating, it is suited to low-power logic or control sections that only need a small auxiliary 5V rail.
Is the SMT01B-05 a good fit for embedded monitoring or communication modules on higher-voltage equipment?
It can fit embedded monitoring or communication circuits when the source available falls within 18-36VAC and the module needs a regulated 5V output. The converter is only 1W, so it is intended for light-power electronics rather than high-load subsystems.
Can this converter support low-power automation electronics that need 5V from an 18-36VAC bus?
Yes, it is aimed at low-power constant-voltage applications with 18-36VAC input and 5V output. The main sizing limit is the 1W power rating, so it should be reserved for small automation, signal, or interface loads.
Can the SMT01B-05 be used in outdoor cabinets or hot and cold environments?
The temperature specification is -40°C to +90°C, which supports use across a wide operating range. These specs do not list an IP rating, so they do not by themselves confirm outdoor exposure resistance or sealed-enclosure performance.
What are the differences between the SMT01B-05 and the other SMT01B versions?
The SMT01B family shown here shares a 1W rating and 18-36VAC input range. The SMT01B-05 is listed at 5V and 200A, the SMT01B-12 is 12V at 0.08A, and the SMT01B-15 is 15V at 0.07A.
