Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

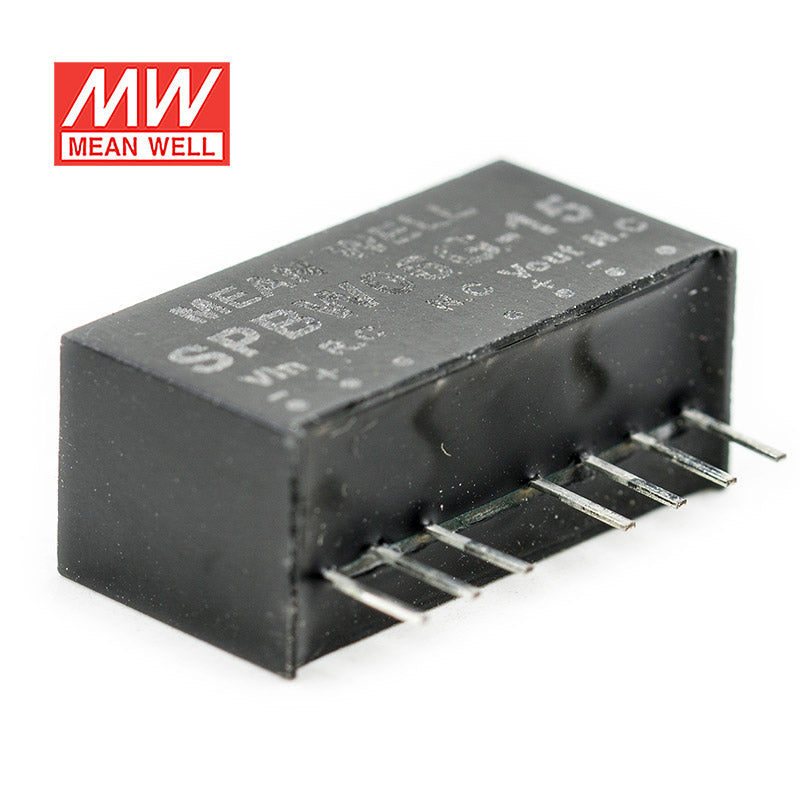

Mean Well SPBW06G-15 DC-DC Converter - 6W - 18~75V in 15V out
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓4:1 wide input range
- ✓Wide operating temperature range -40~+85°C
- ✓No minimum load required
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.4 Ampere
-
Input Voltage18V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPBW06G-15 for a 15V industrial control or instrumentation circuit?
This converter is intended for low-power 15V applications that need constant-voltage output up to 6W. It is a reasonable fit for compact industrial control, instrumentation, or embedded electronics built around a regulated 15V rail.
Is the SPBW06G-15 suitable for embedded analog or signal interface stages that require 15V?
Yes, it can fit 15V analog or signal interface sections as long as the load stays within the 6W output rating. The constant-voltage design is appropriate where the downstream circuit expects a fixed 15V supply instead of current-driven output behavior.
Can this model work in higher-voltage automation equipment with a wide input range?
The specified input range is 18-75VAC, so it is aimed at equipment operating somewhere within that span and needing a 15V output. That makes it relevant for higher-voltage automation or control assemblies that need a compact low-power conversion stage.
How well does the SPBW06G-15 handle temperature extremes or exposed environments?
The operating temperature range is -40C to +85C, which supports use across demanding temperature conditions. The listed data does not include an IP rating, so the product page does not define outdoor exposure or ingress protection performance.
How does the SPBW06G-15 compare with the 3.3V, 5V, and 12V versions?
These SPBW06G models all share a 6W platform and differ by output rating. The siblings are SPBW06G-03 at 3.3V and 1.5A, SPBW06G-05 at 5V and 1.2A, SPBW06G-12 at 12V and 500A, and this SPBW06G-15 at 15V and 400A.
