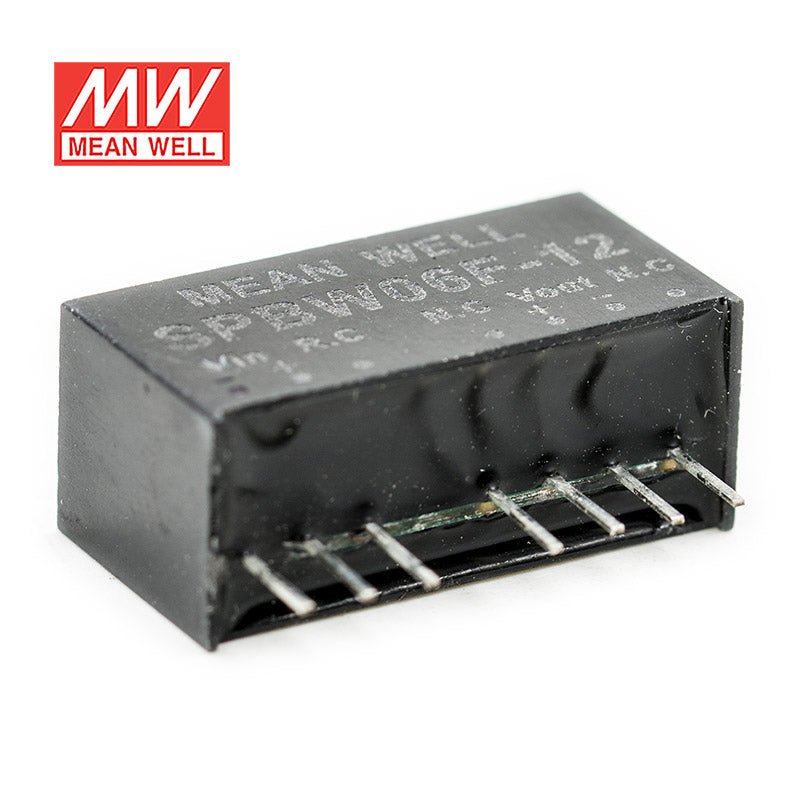

Mean Well SPBW06F-12 DC-DC Converter - 6W - 9~36V in 12V out
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓4:1 wide input range
- ✓Wide operating temperature range -40~+85°C
- ✓No minimum load required
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.5 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPBW06F-12 for low-power 12V industrial control electronics?
Yes, it provides 12V constant voltage output with a 6W rating, which suits low-power 12V control electronics. The 9-36VAC input range also makes it usable across a wide range of source conditions.
Is the SPBW06F-12 appropriate for compact 12V embedded subsystems?
Its 21.8 × 11.1 × 9.2 mm size is useful in compact embedded equipment with limited space. With 12V output and 6W total power, it is intended for smaller auxiliary or support functions rather than larger 12V devices.
Can this converter support 12V auxiliary rails in automation or instrumentation equipment?
It is built for constant voltage operation at 12V and 6W, which fits low-power auxiliary rails in automation or instrumentation systems. The wide 9-36VAC input range is helpful when equipment platforms do not share one fixed input value.
Is the SPBW06F-12 suitable for outdoor environments or wide temperature swings?
The specified operating temperature is -40°C to +85°C, so it is rated for wide temperature variation. No IP rating is provided in the listed specs, so outdoor exposure protection is not defined here.
How does the SPBW06F-12 differ from the other SPBW06F converters?
The listed SPBW06F family members are all 6W models. The SPBW06F-03 is 3.3V and 1.5A, the SPBW06F-05 is 5V and 1.2A, the SPBW06F-12 is 12V and 500A, and the SPBW06F-15 is 15V and 400A.
