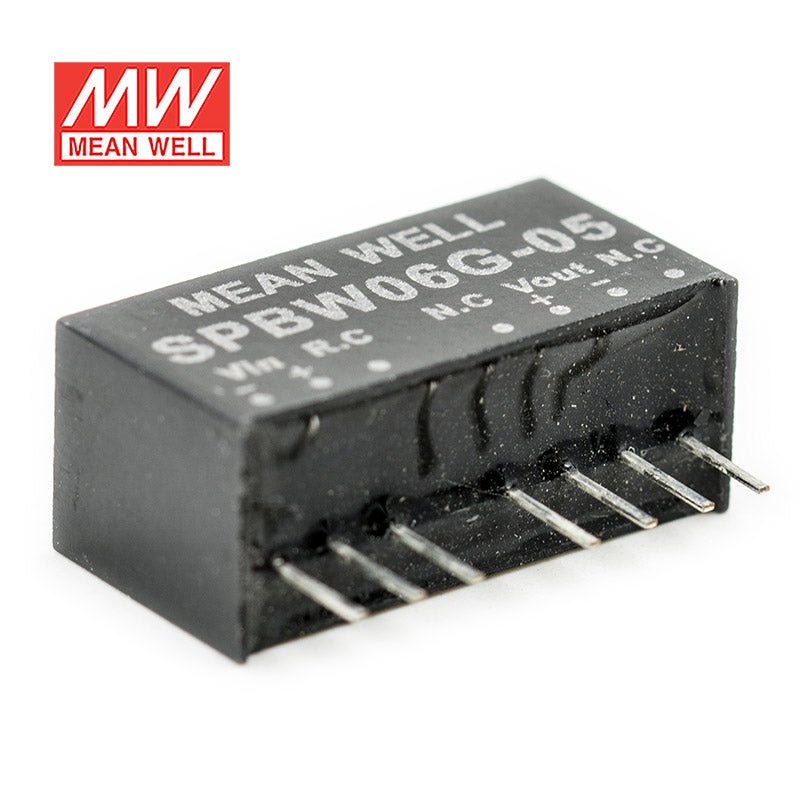

Mean Well SPBW06G-05 DC-DC Converter - 6W - 18~75V in 5V out
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓4:1 wide input range
- ✓Wide operating temperature range -40~+85°C
- ✓No minimum load required
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current1.2 Ampere
-
Input Voltage18V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPBW06G-05 for 5V industrial sensors or control electronics?
This converter provides a constant 5V output with a 6W rating, so it fits low-power industrial sensors, control electronics, or auxiliary boards designed for 5V operation. Its 18-75VAC input range also suits systems fed from higher-voltage industrial power domains within that span.
Is the SPBW06G-05 appropriate for embedded 5V processors or communication modules?
It is appropriate for embedded 5V loads such as processor boards, communication modules, or control interfaces that remain within 6W. The 1.2A output rating further indicates it is meant for low-power electronics rather than large actuators or high-draw devices.
Can this model be used in compact automation or instrumentation assemblies?
Yes, the package is only 21.8 x 11.1 x 9.2 mm and weighs 0.0048 kg, which helps in compact instrumentation and automation designs. It is intended where a fixed 5V rail is needed from an 18-75VAC input source.
Will the SPBW06G-05 handle cold or hot operating conditions?
The specified operating temperature range is -40C to +85C, so it is rated for both low and high ambient conditions within that band. No IP rating is provided in the specs, so enclosure protection against dust or water is not specified.
How does the SPBW06G-05 differ from the other SPBW06G output options?
The models in this series all use a 6W format, but the output differs by SKU. The sibling list is SPBW06G-03 at 3.3V and 1.5A, SPBW06G-12 at 12V and 500A, SPBW06G-15 at 15V and 400A, and this SPBW06G-05 at 5V and 1.2A.
