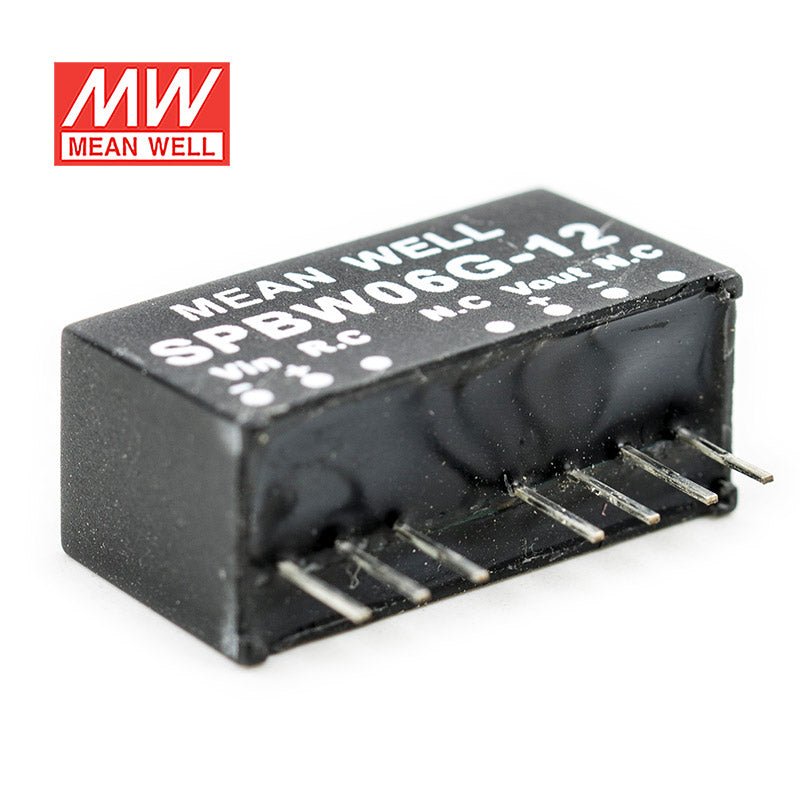

Mean Well SPBW06G-12 DC-DC Converter - 6W - 18~75V in 12V out
$10.33 USD
Unit price /
Unavailable
Description
Description
Features
| SIP8 package with industry-standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| High efficiency up to 89% |
| Protection: Short circuit(continuous)/Overload/Input under voltage |

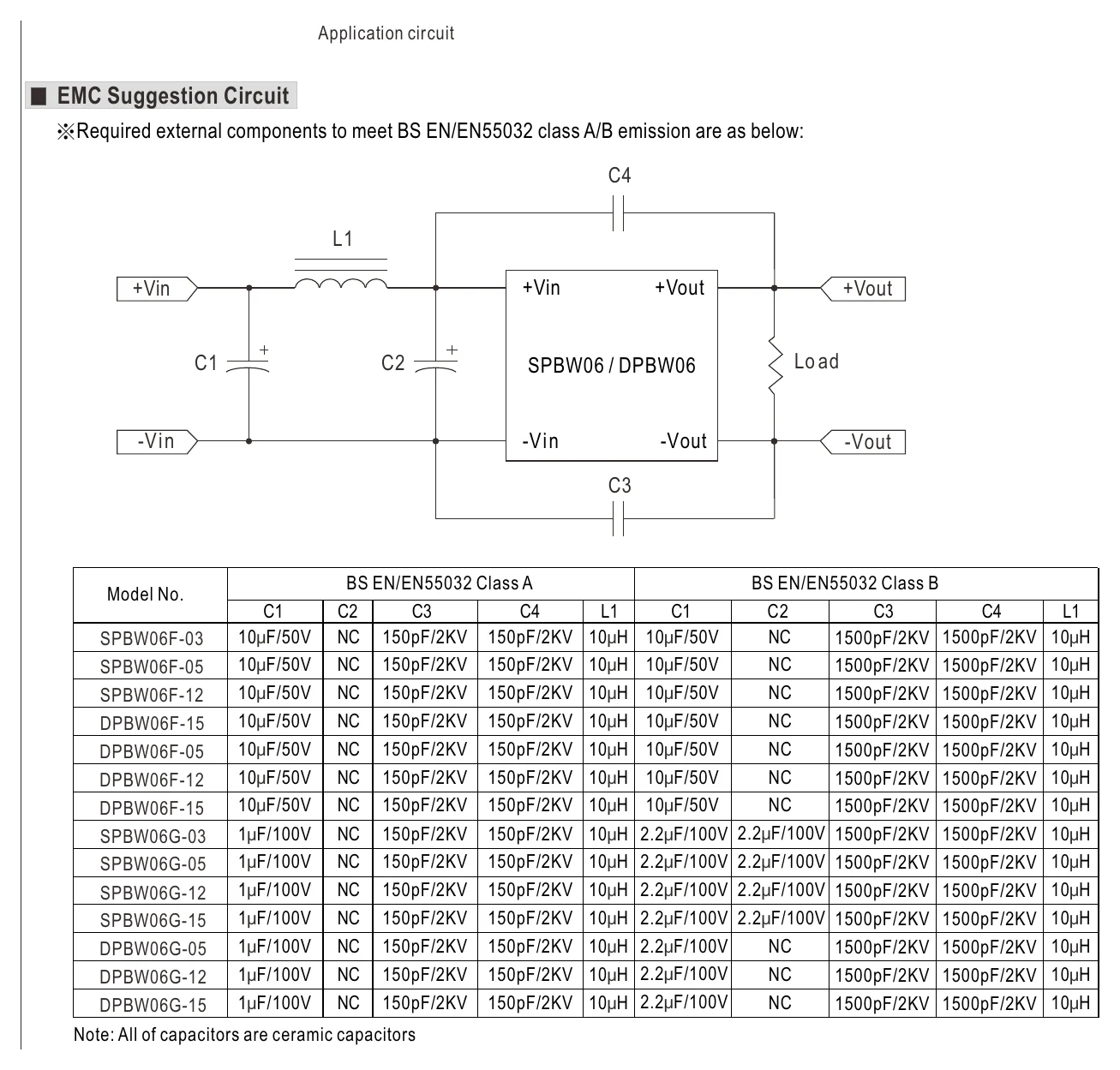

| Comply to BS EN/EN55032 radiated Class B without additional components |
| 1.5KVDC I/O isolation |

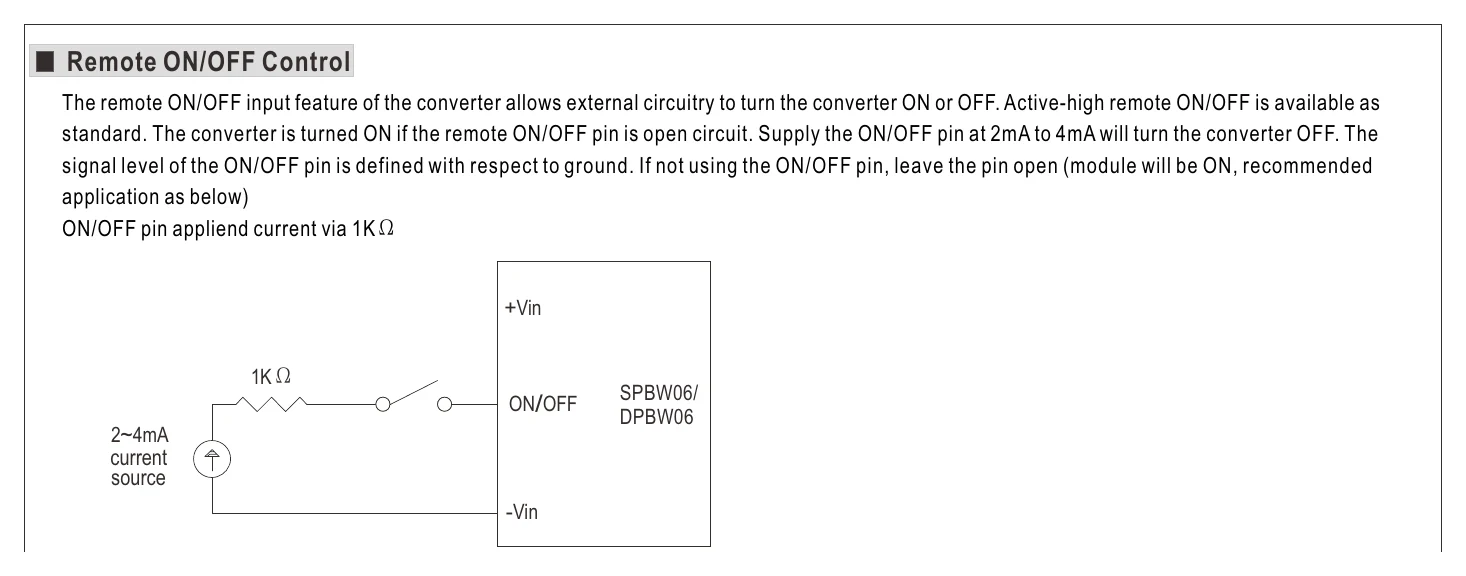

Remote ON/OFF control |
3 years warranty |
General Specification
| Voltage accuracy | ±1.5% |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | Continuous, auto-recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 65℃) |
| Dimension (LxWxH) (mm) | 21.8*9.2*11.1mm |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.5 Ampere
-
Input Voltage18V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
