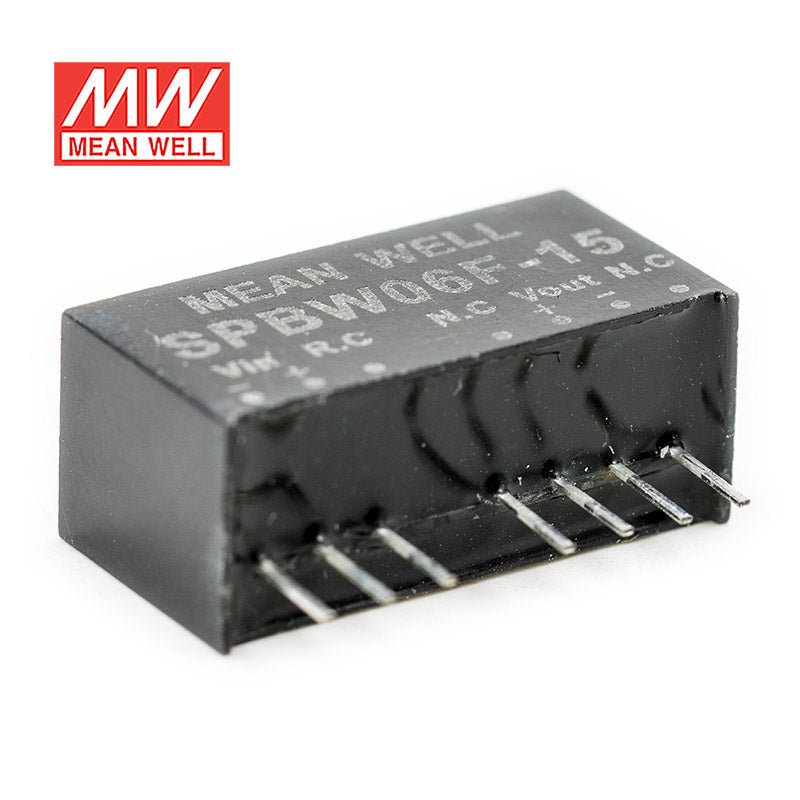

Mean Well SPBW06F-15 DC-DC Converter - 6W - 9~36V in 15V out
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓4:1 wide input range
- ✓Wide operating temperature range -40~+85°C
- ✓No minimum load required
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.4 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPBW06F-15 in a compact industrial control board that needs 15V power?
This model is a 6W constant-voltage DC-DC converter with a 15V output, so it fits low-power industrial control or interface sections designed for 15V rails. Its 21.8 x 11.1 x 9.2 mm size also suits dense embedded or automation assemblies where board space is limited.
Is the SPBW06F-15 suitable for 15V analog or signal-conditioning circuits in automation equipment?
It can fit low-power 15V analog, monitoring, or signal-conditioning sections that stay within the unit's 6W output rating. The constant-voltage output makes it appropriate where the downstream electronics expect a fixed 15V supply.
Can this converter be used inside embedded equipment powered from a 9-36VAC source?
Yes, the specified input range is 9-36VAC, so it is intended for designs operating within that span and needing a regulated 15V output. That makes it relevant for embedded control hardware, industrial subassemblies, or automation modules built around that input window.
Is the SPBW06F-15 appropriate for outdoor or harsh-temperature environments?
The operating temperature range is -40C to +85C, which supports use across a wide temperature span. The provided specs do not list an IP rating, so environmental sealing for indoor or outdoor exposure is not specified here.
How does the SPBW06F-15 compare with other SPBW06F models?
All SPBW06F models in this group are 6W converters. The sibling outputs are SPBW06F-03 at 3.3V and 1.5A, SPBW06F-05 at 5V and 1.2A, SPBW06F-12 at 12V and 500A, and this SPBW06F-15 at 15V and 400A.
